Combustion system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 5, 2019
Grant Date -
Jul 17, 2014
app pub date -
May 4, 2012
filing date -
May 4, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

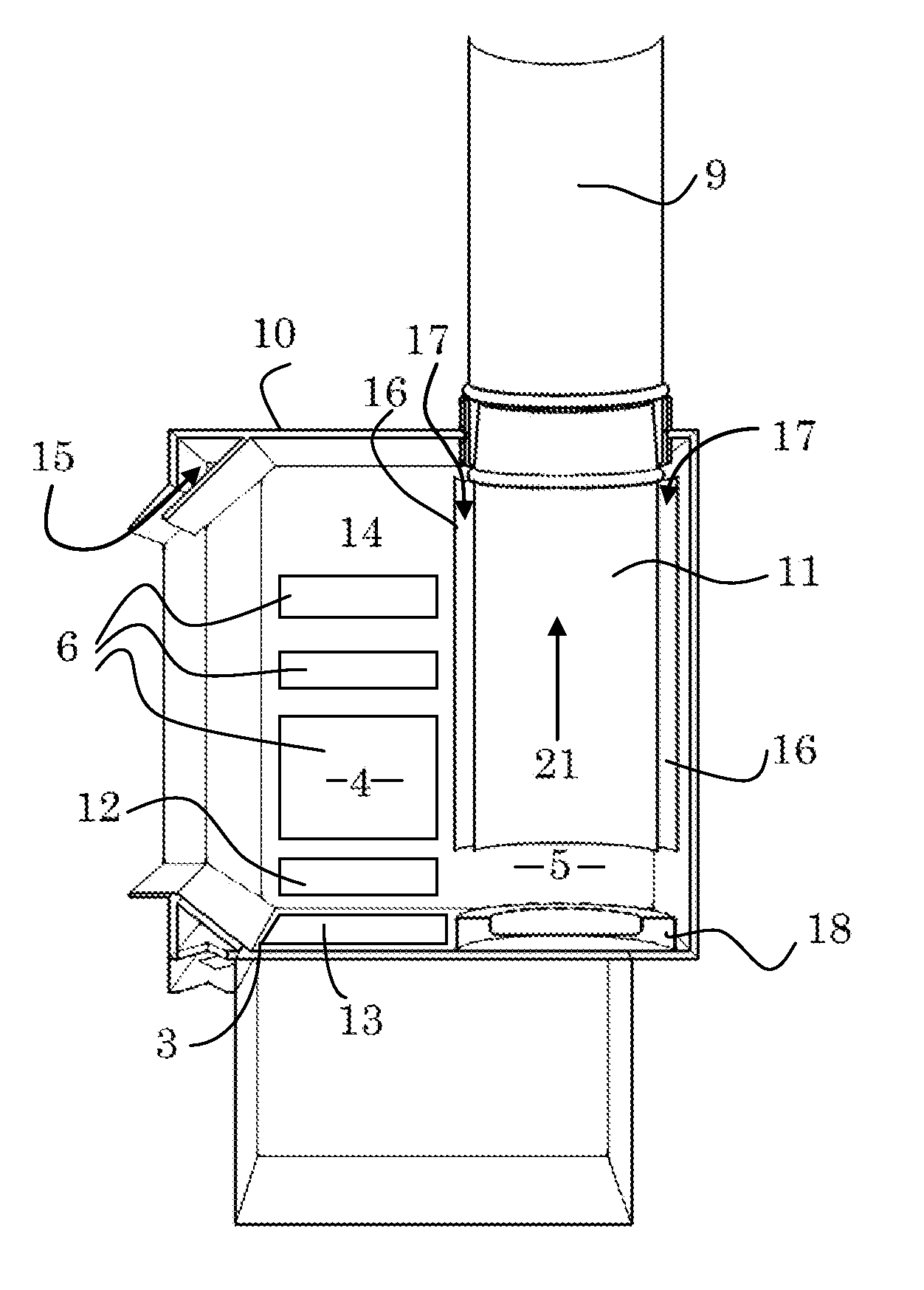

This invention relates to a combustion system. The combustion system includes a fireplace which has a fire base, a primary combustion zone for pyrolysising and/or combusting a biomass fuel, and a secondary combustion zone for combusting gases and/or particulate matter produced from the pyrolysis and/or combustion of the biomass fuel. The combustion system also includes an exhaust flue, the exhaust flue extending to a position near to, or adjacent, the secondary combustion zone and/or the fire base. The invention may be particularly suitable for use in relation to wood burners, either by retrofitting to existing wood burners or by incorporating into new wood burners.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- F23G Class
- 90 Applications Filed
- 75 Patents Issued To-Date
- 83.34 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F23G Class
- 66.67 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 5, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 5, 2030 |
