TRIPOD JOINT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 3, 2014
app pub date -
May 17, 2013
filing date -
Dec 28, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

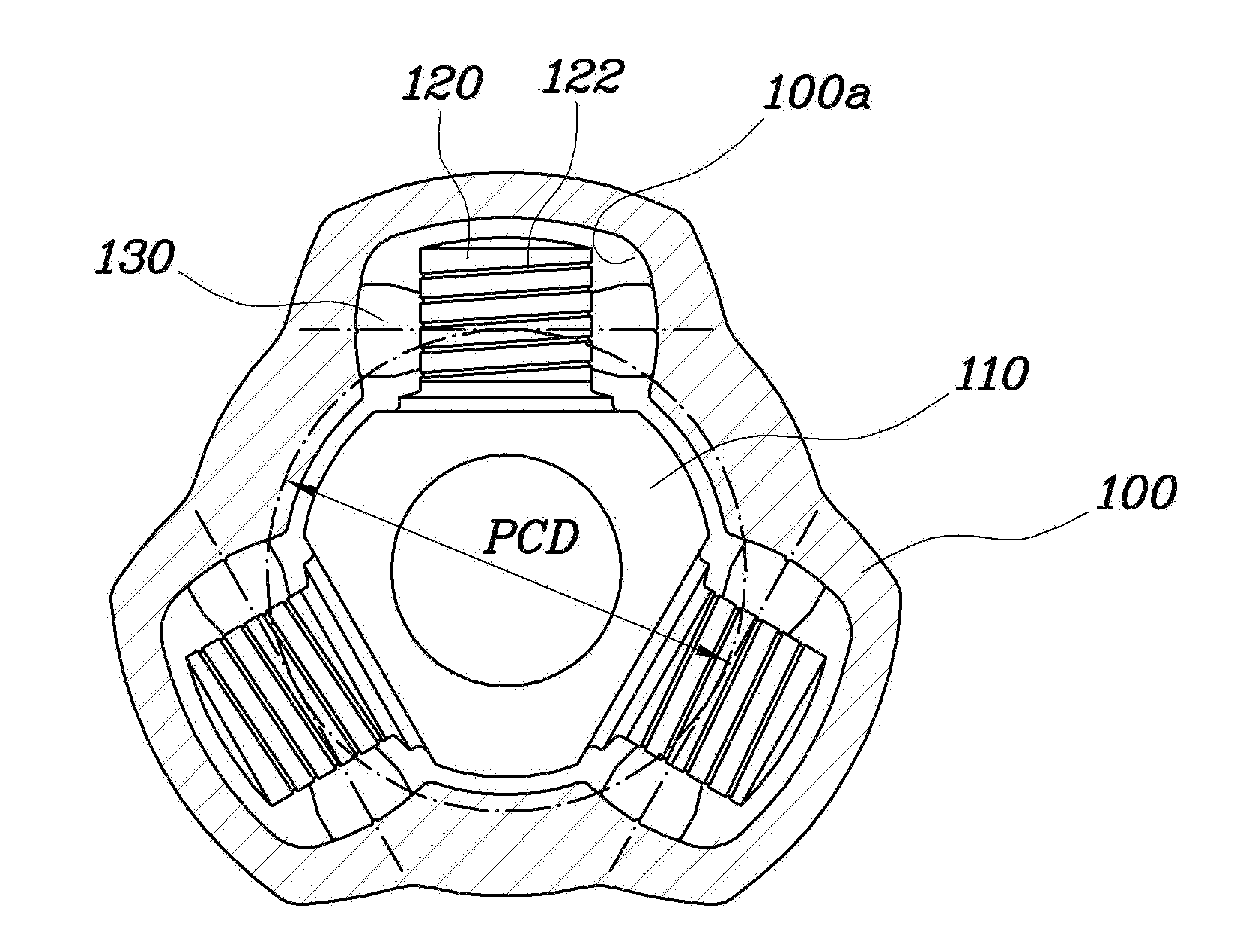

The present invention discloses a tripod joint including: a housing having one or more radially positioned track grooves; a spider having one or more radially positioned trunnions protruding from the outer circumferential surface of the spider, the one or more radially positioned trunnions disposed within the one or more radially positioned track grooves of the housing, wherein the spider is configured to move in the axial direction of the housing one or more rollers disposed on the one or more radially positioned trunnions, the one or more rollers in contact with the inner circumferential surface of the one or more track grooves of the housing; and a lubricating mechanism configured to supply oil to the trunnions and the rollers.
First Claim
Other Claims data not available
