DC Power-Supply Apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 3, 2014
app pub date -
Dec 27, 2013
filing date -
Dec 28, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

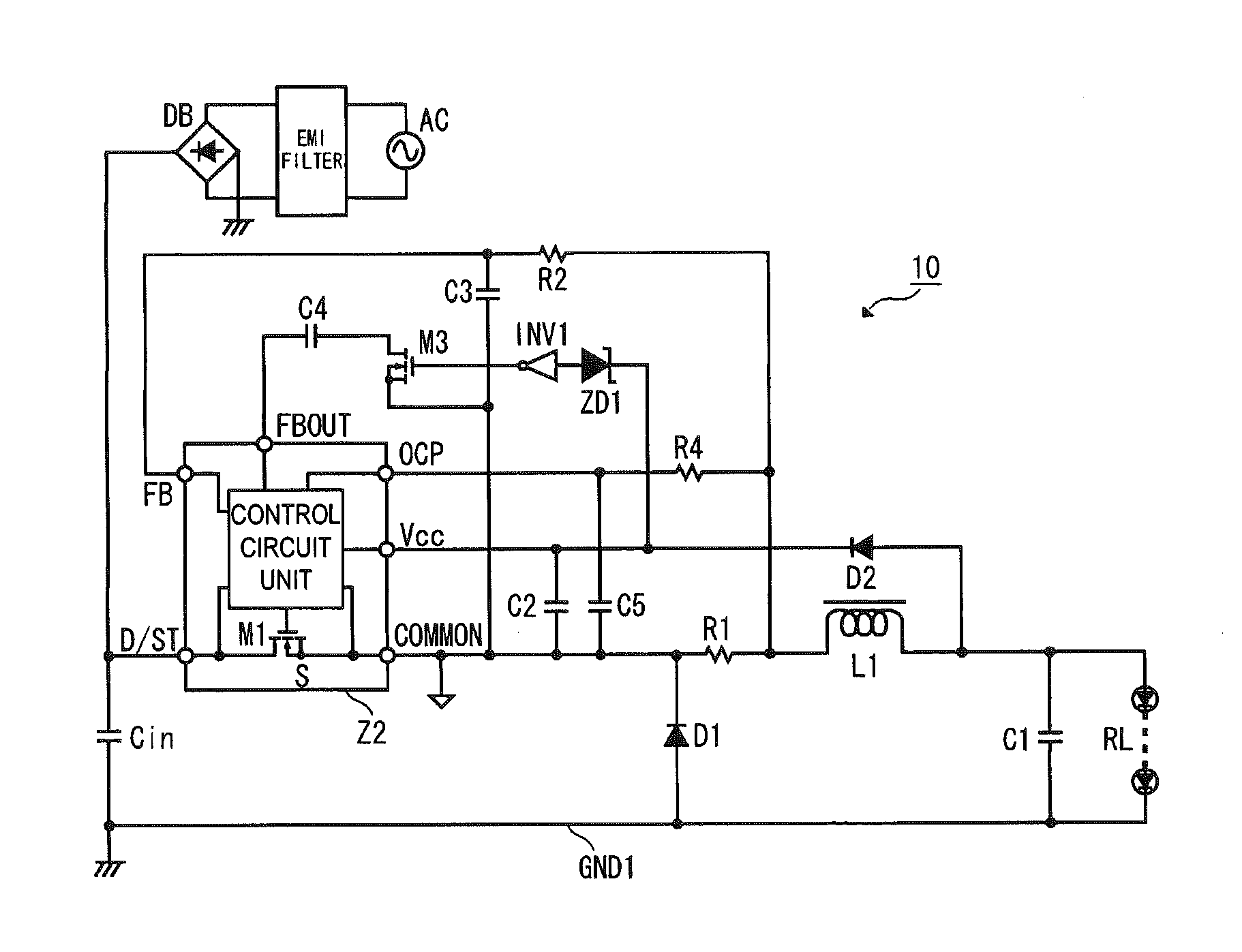

A DC power-supply apparatus of converting an AC input voltage rectified to a DC voltage and supplying it to a load, by performing on-and-off control of a switching element connected in series to a reactor, includes a control circuit, which operates in floating state with respect to a after-rectified ground line and controls an on-width of the switching element based on a value of current flowing through the reactor and the load connected in series with the reactor; and an oscillation circuit, which controls a switching frequency of the on-and-off control by the control circuit, asynchronously with energy release timing of the reactor.
First Claim
Other Claims data not available
