ELECTRONIC COMPONENT, POWER FEEDING DEVICE, AND POWER FEEDING SYSTEM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 3, 2014
app pub date -
Dec 18, 2013
filing date -
Dec 28, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

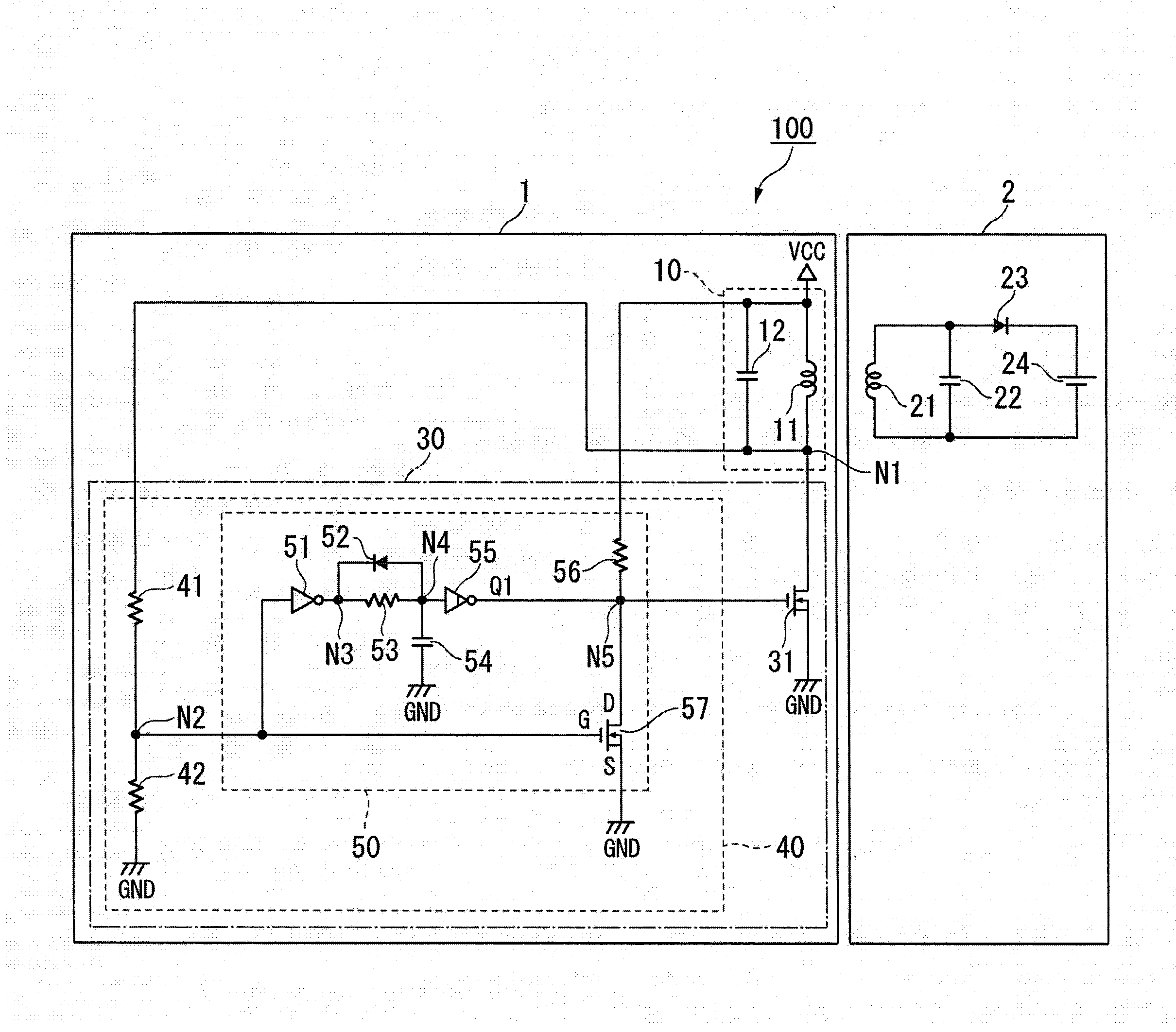

To perform wireless power transfer without needing a feedback coil, an electronic component includes: a drive transistor to be connected in series to a resonant circuit, the resonant circuit including a feeding coil for feeding power to a receiving coil and a resonant capacitor configured to resonate with the feeding coil; and a drive control section for controlling the drive transistor. The drive control section includes an ON-signal generation section for generating, when a potential difference across the drive transistor falls within a given threshold range, a control signal for controlling the drive transistor to a conductive state for a predetermined first period and thereafter controlling the drive transistor to a non-conductive state.
First Claim
Other Claims data not available
