SEAL DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 26, 2014
app pub date -
Oct 3, 2012
filing date -
Oct 21, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

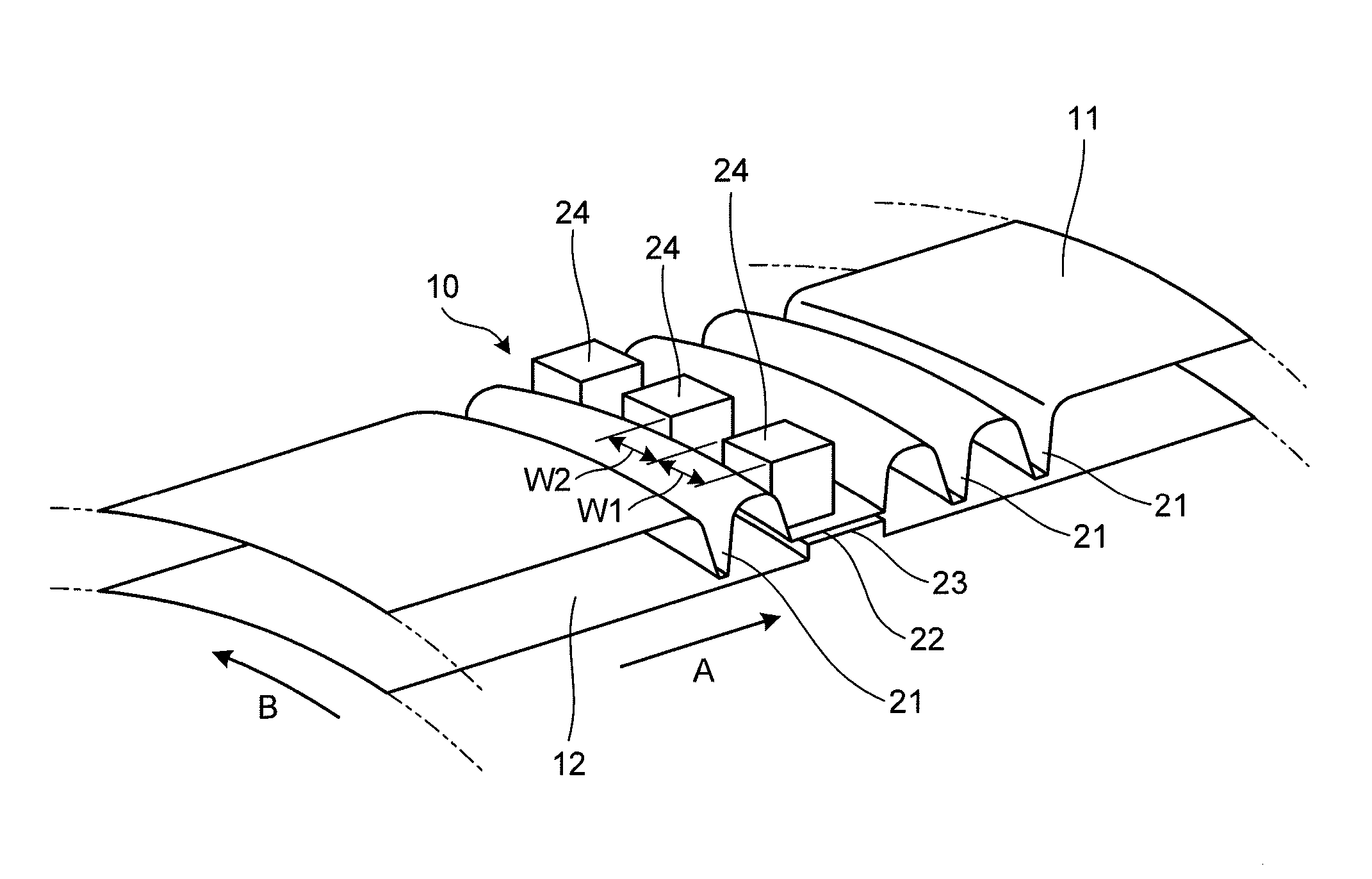

A seal device including: three ring-shaped first vertical wall portions (21) which extend toward a rotational body (12) from a stationary body (11) and are arranged at predetermined intervals in an axial center direction (A) of the rotational body (12); a ring-shaped second vertical wall portion (22) which extends toward the rotational body (12) from the stationary body (11) and is adjacent to the first vertical wall portions (21), the thickness of which is thicker than the first vertical wall portions (21); a ring-shaped protrusion portion (23) which faces the second vertical wall portion (22) and protrudes toward the stationary body (11) from the rotational body (12); and a plurality of swirl breaker chambers (24) which are arranged in the stationary body (11) at predetermined intervals in a circumferential direction of the rotational body (12) to face the protrusion portion (23).
