DUCT FOR ENGINE BAY COOLING AND VENTILATION
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 19, 2014
app pub date -
Dec 19, 2012
filing date -
Dec 19, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

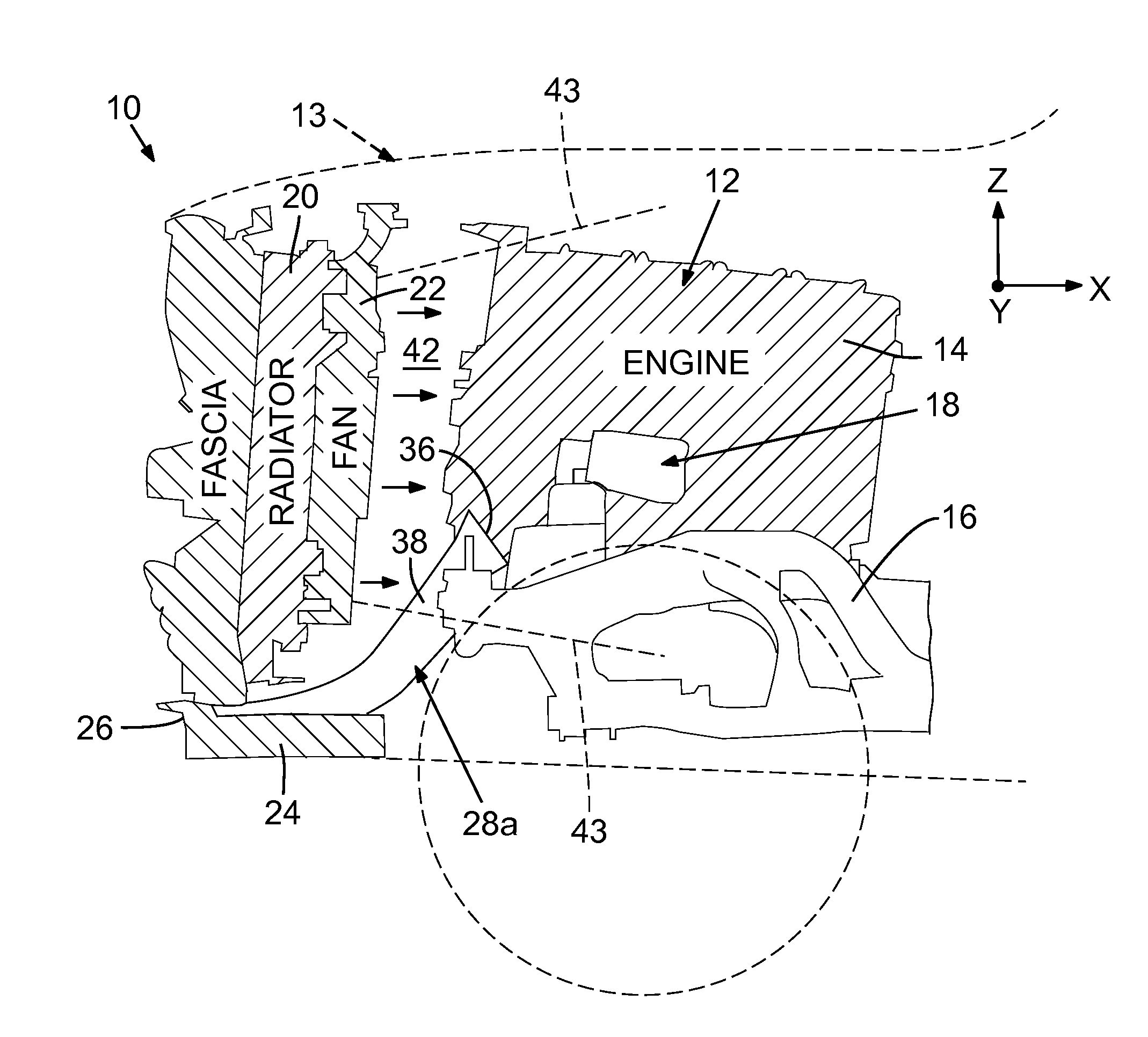

An air cooling system provides cooling air within an engine bay of a vehicle. The vehicle includes a radiator and a cooling fan, the cooling fan is operable to force air to flow through the radiator, and the cooling fan is also operable to blow air within a blow zone away from the cooling fan and into the engine bay. The air cooling system includes a duct having a first end that defines an inlet, a second end that defines an outlet, and a sidewall that extends between the first end and the second end. The duct is operable to be mounted to the vehicle with the second end and the outlet disposed within the downstream blow zone such that air exiting the outlet is blown by the cooling fan toward the engine bay.
First Claim
Other Claims data not available
