ULTRASOUND TRANSDUCER AND METHOD OF GENERATING AND/OR RECEIVING ULTRASOUND
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 19, 2014
app pub date -
Nov 18, 2013
filing date -
Dec 13, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

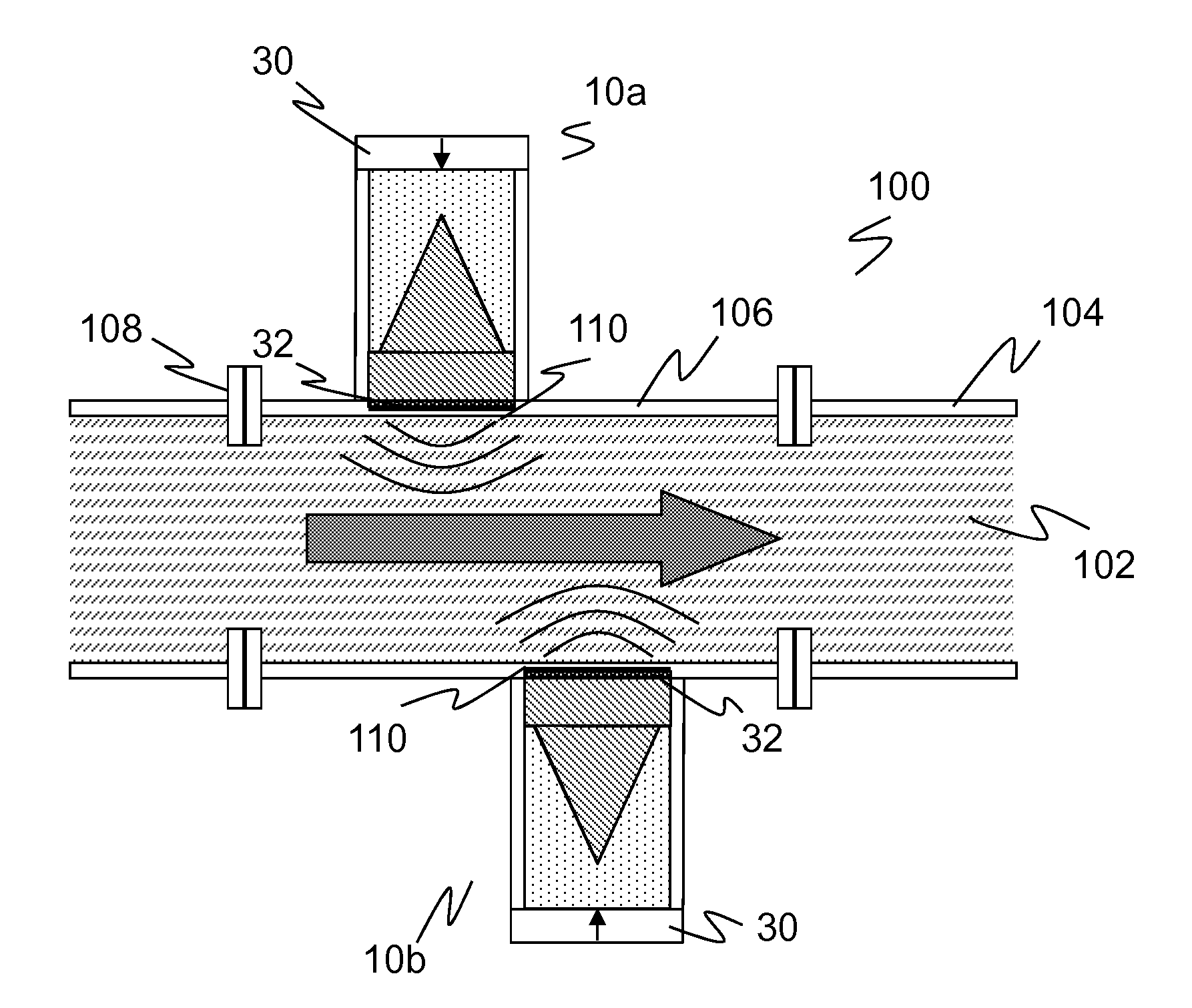

An ultrasound transducer (10) is provided having an oscillating body (12) for generating and/or receiving ultrasound and having a damping body (14) which has a first part body (16) of a first material arranged at a rear side of the oscillating body (16), said first material having an acoustic impedance matched to a material of the oscillating body (12), and which has a second part body (18) of a second material arranged at the first part body (16), said second material having a high acoustic damping. In this respect, the first part body (16) is conical and its base surface is arranged on the oscillating body (12).
First Claim
Other Claims data not available
Family
