Relay apparatus for broadcast waves
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 25, 2015
Grant Date -
Jun 12, 2014
app pub date -
Jun 28, 2012
filing date -
Jul 1, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

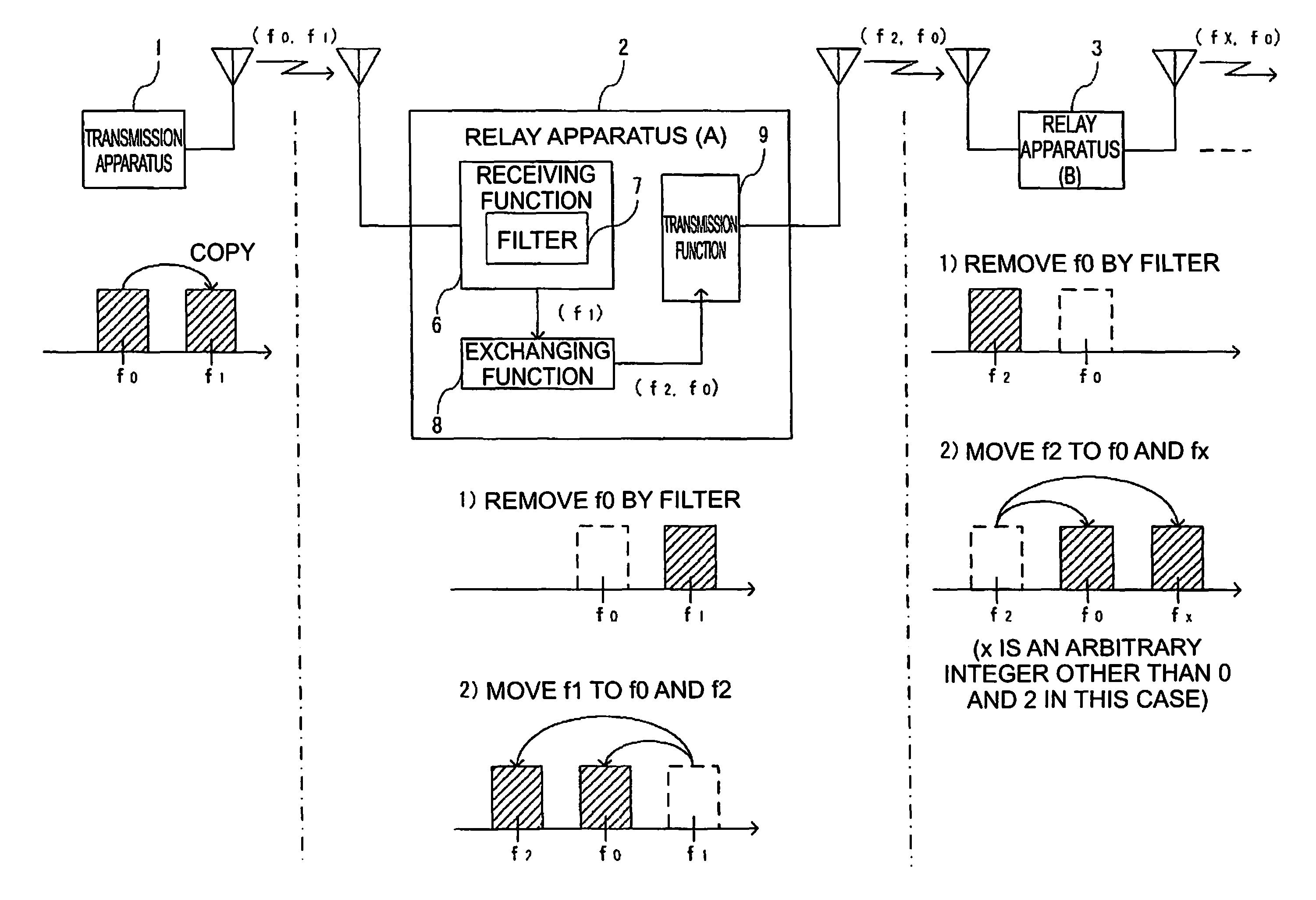

The objective of the present invention is to provide a relay apparatus capable of performing normal relay transmission for broadcast waves by preventing effects caused by wraparound in a relay apparatus. For broadcast waves received by a relay apparatus (2), the same broadcast data are placed in each of a defined segment (f0) and a first segment (f1) other than the defined segment, whereupon the relay apparatus removes broadcast data for the defined segment (f0) from the received broadcast waves, and transmits broadcast waves in which the broadcast data for the first segment (f1) have been exchanged with each of the defined segment (f0) and a second segment (f2) other than the defined segment and the first segment. As a result, the defined segment (f0) which imparts wraparound effects to the received broadcast waves is removed, and therefore, it is possible to perform normal relay transmission of the broadcast waves.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- H04B Class
- 7669 Applications Filed
- 6383 Patents Issued To-Date
- 83.24 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04B Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 25, 2027 |
