SEMICONDUCTOR ASSEMBLY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 12, 2014
app pub date -
Aug 4, 2011
filing date -
Aug 4, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

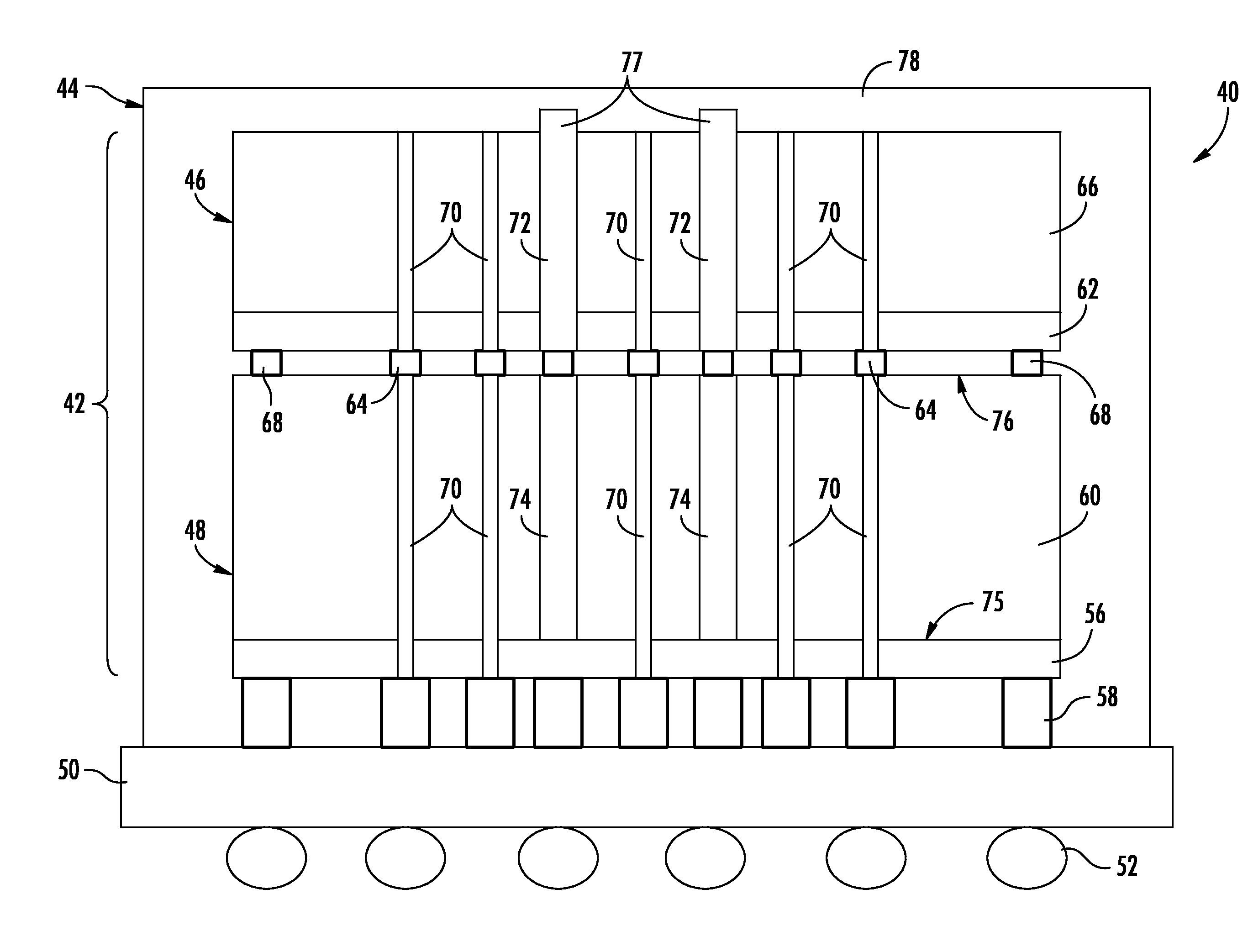

A semiconductor assembly that may enhance dissipation of heat. The assembly includes a first die of a first material and defining a first passage. A second material, such as silicon carbide, diamond, or carbon nanotube, having a higher heat conductivity than the first material is disposed in the center of the first passage. An electronic component, which may be, for example, another die or a printed wiring board, is adjacent to the first die, is predominantly of a third material, and defines a first opening. A fourth material having a higher heat conductivity than the third material is disposed in the center of the first opening. The first opening is in alignment with the first passage, and may provide for heat transfer with a chimney effect between the materials of relatively high heat conductivity. A mold including a high heat conductivity material may also be provided.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 11 Citation Count
- H01L Class
- 62.17 % this patent is cited more than
- 11 Age
