Rotary workhead device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Issued Date -
N/A
app pub date -
Jul 15, 2011
filing date -
Jul 15, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

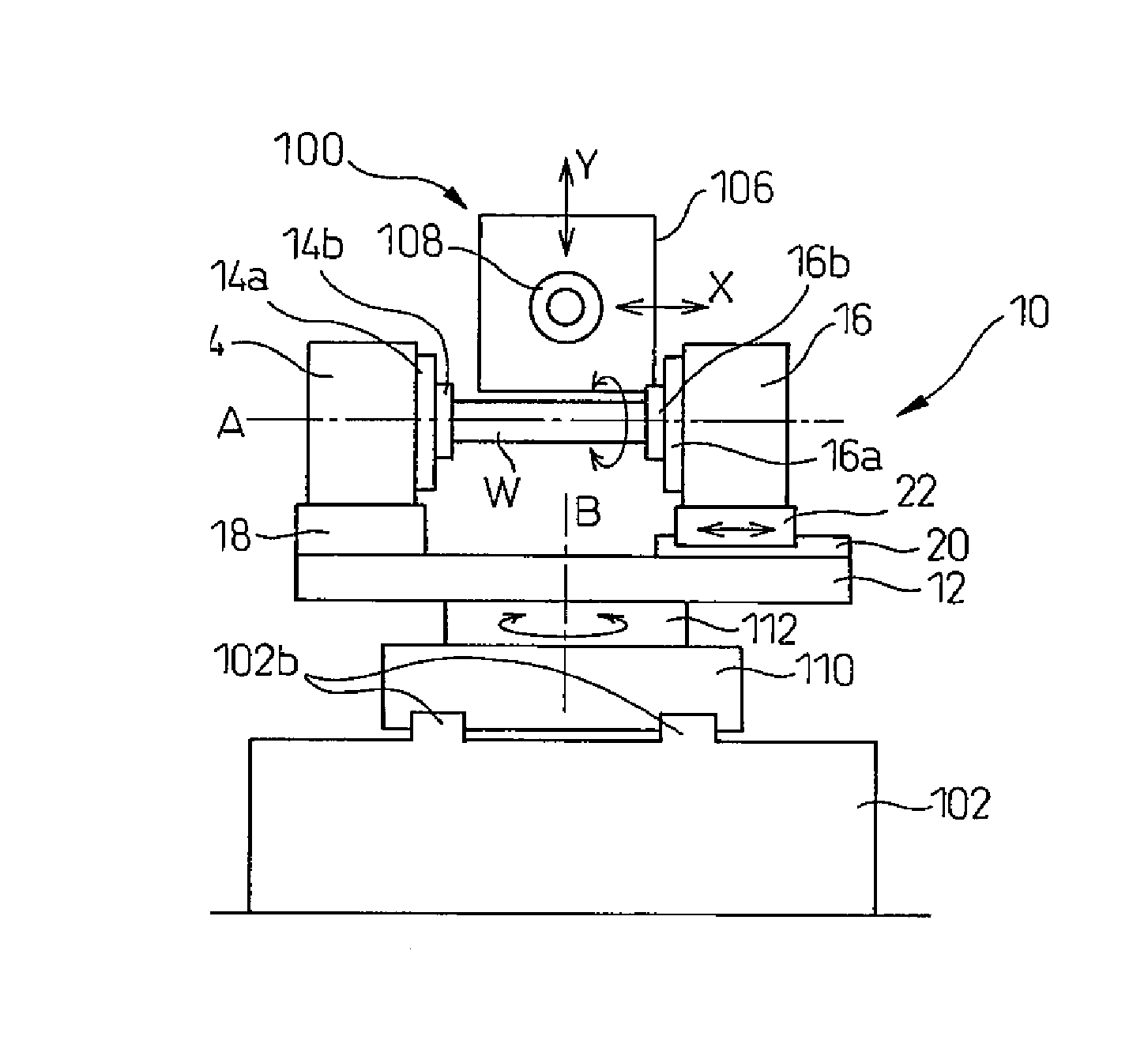

The rotary workhead device, which is loaded on the table of a machine tool and onto which a workpiece to be machined is rotatably mounted, is equipped with: a base plate that is attached to the table of the machine tool; two rotary workheads that are provided on the base plate and disposed so that the axes of rotation coincide and the workpiece-fixing parts face each other; a guide means that is provided so as to be capable of moving at least one of the rotary workheads back and forth in the direction of the rotation axes; and an impelling means for impelling the one rotary workhead in a direction that separates or brings together the two rotary workheads. The rotary workhead device applies a tensile force or a compressive force on a workpiece, the respective ends of which are fixed between the two rotary workheads.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- B23Q Class
- 534 Applications Filed
- 360 Patents Issued To-Date
- 67.42 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B23Q Class
- 40.32 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
