ASSEMBLED MUD-ROCK FLOW DEBRIS DAM AND CONSTRUCTION METHOD THEREOF
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 5, 2014
app pub date -
Apr 27, 2011
filing date -
Apr 2, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

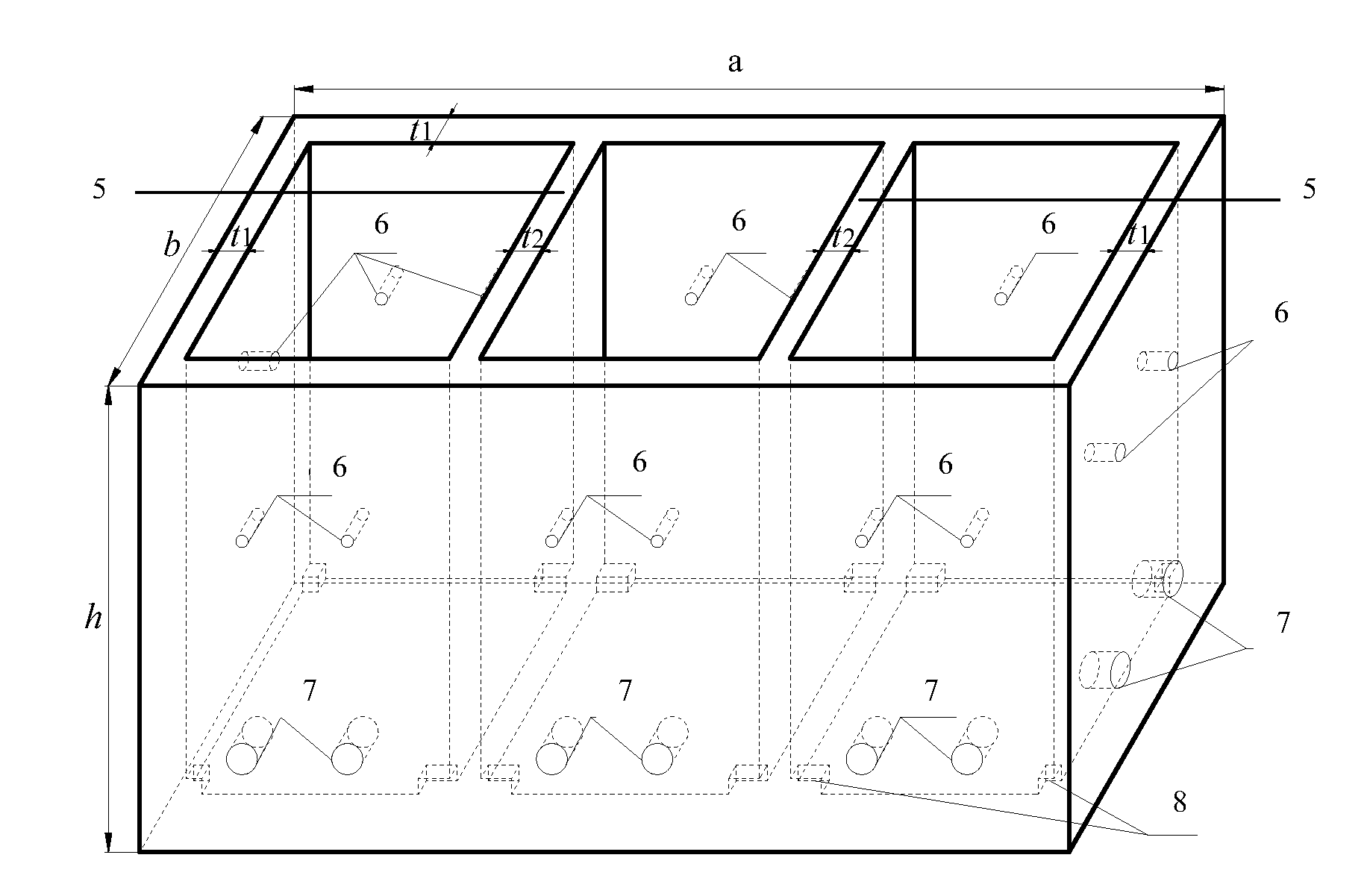

A rapidly assembled debris flow sediment storage dam and a construction method are provided. The sediment storage dam has a main dam body with multiple prefabricated reinforced concrete rectangular boxes linked by vertical and horizontal connections. The top surface of each rectangular box is open, and the other five surfaces of the rectangular box are closed. Soil is used to fill each rectangular box. The main dam body is assembled above dam body foundations. Dam abutment foundations of the sediment storage dam and the inside slope of the dam body are filled with cement-laid stone masonry or concrete, while the top surface of the dam crest is also sealed using cement-laid stone masonry or concrete.
