HOLE PUNCH WITH ALIGNMENT INDICATOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 5, 2014
app pub date -
Nov 30, 2012
filing date -
Nov 30, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

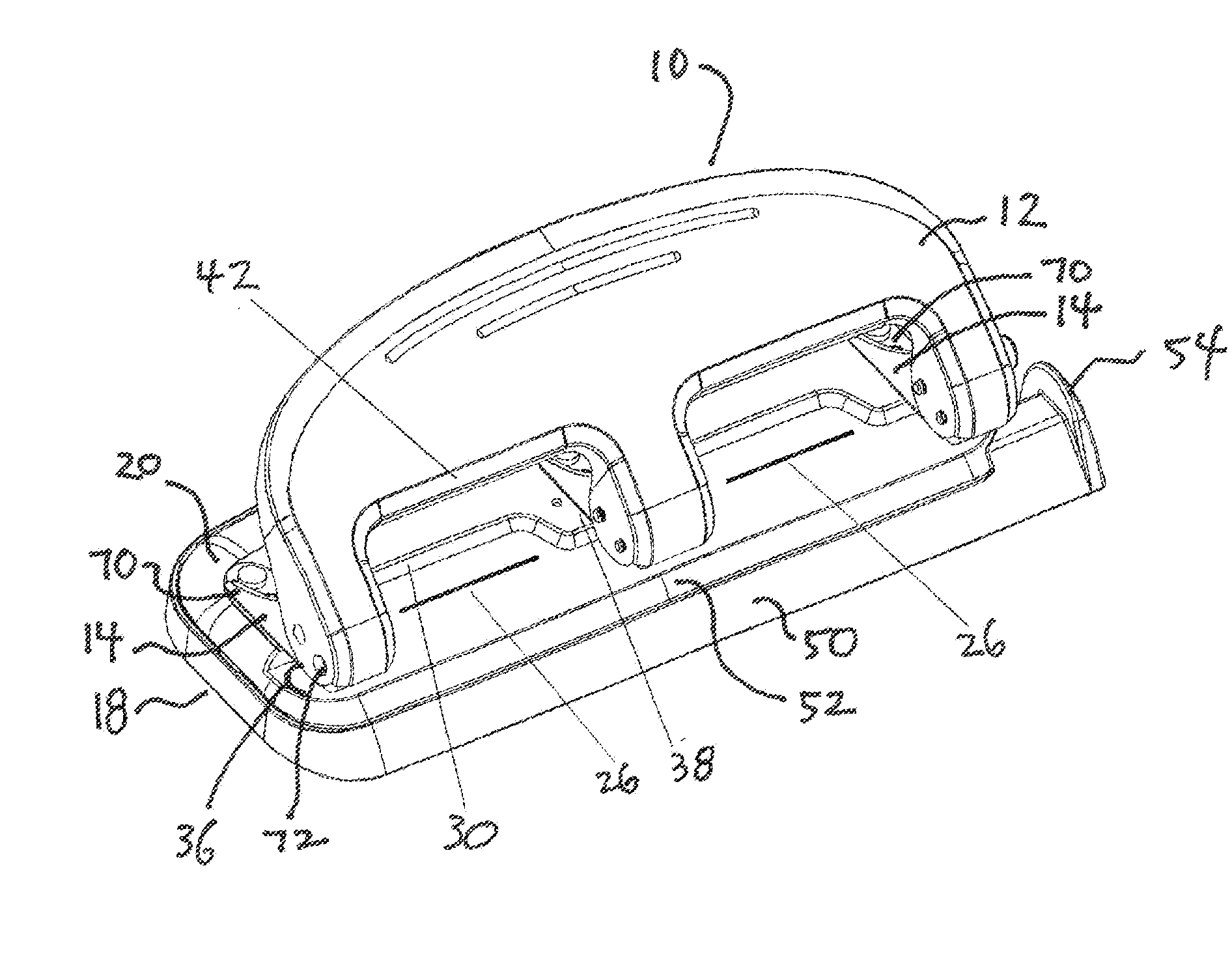

A manually-powered, lever-operated, multi-hole punch device with visual alignment indicia, for punching holes in stacked sheet media such as paper. The hole punch device includes an elongated base with a top side divided along its length in approximate halves, with the front half being a lower flat surface transitioning through a step to a rear half, upper flat surface. The upper flat surface includes a plurality of peninsulas extending into the lower flat surface, such that the areas between the peninsulas include a visual alignment indicator. Punch elements and their punch pins are located on each peninsula overlying the lower flat surface, and the height of the step creates a slot to receive the paper stack. Underneath each punch pin on the lower flat surface is a receiving hole to receive the reciprocating punch pin. An optional chip receptacle is positioned at the underside of the base.
