SEMICONDUCTOR INTEGRATED CIRCUIT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 29, 2014
app pub date -
Nov 6, 2013
filing date -
Nov 27, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

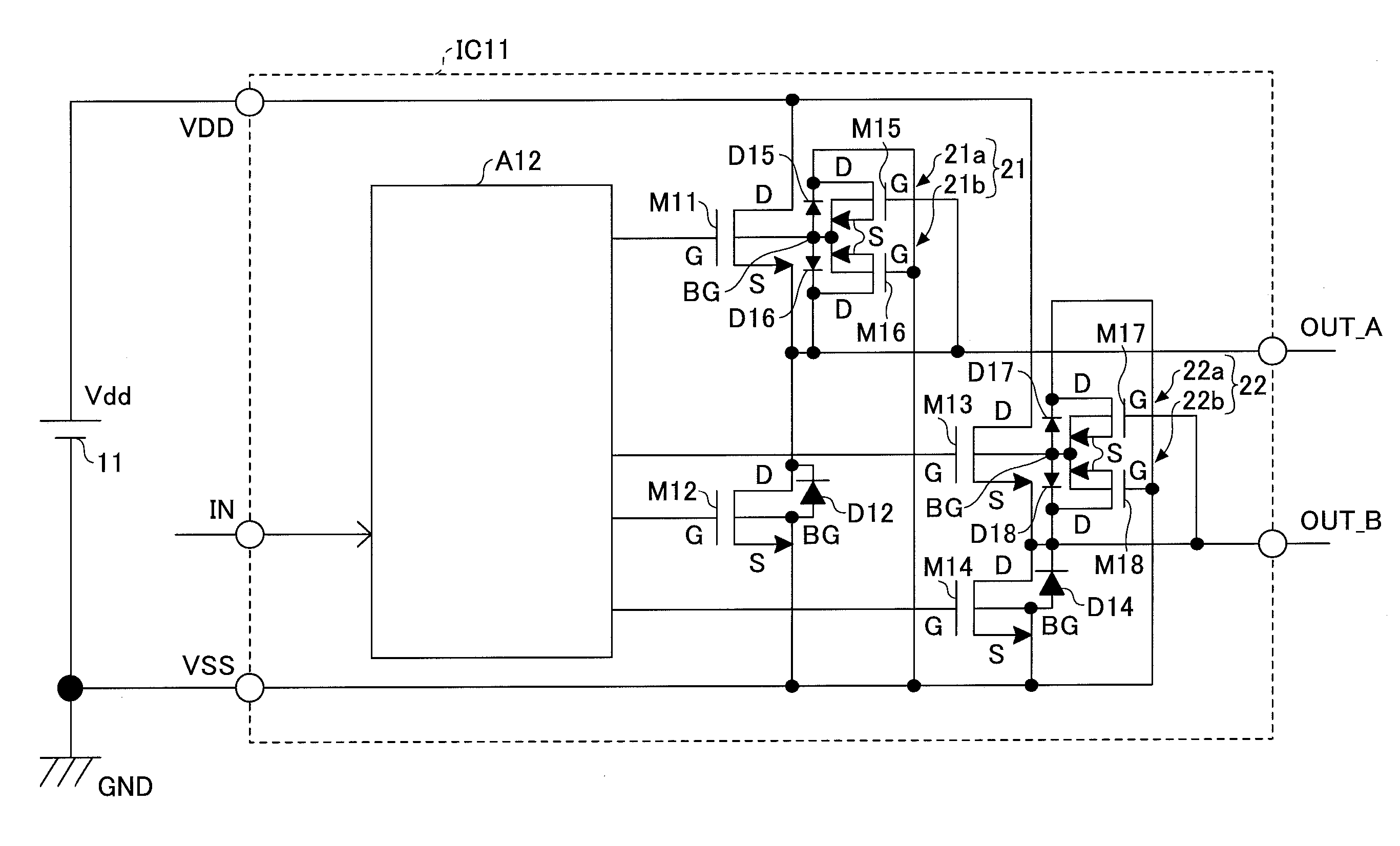

A semiconductor integrated circuit includes an output MOS transistor and a back gate control circuit. The output MOS transistor includes a first electrode connected to a power supply terminal and a second electrode connected to an output terminal. The output MOS transistor is configured to turn on and off to cause communications to be performed with another semiconductor integrated circuit connected to the output terminal. The back gate control circuit is configured to control an electric potential at a back gate of the output MOS transistor so that a current path between the power supply terminal and the output terminal at a time when a power supply connected to the power supply terminal is turned off is interrupted.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | A | JP2014107660 | Nov 27, 2012 |
| CN | B | CN103838292 | Nov 26, 2013 |
International Classification(s)
- 2013 Application Filing Year
- H03K Class
- 2259 Applications Filed
- 1924 Patents Issued To-Date
- 85.18 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H03K Class
- 0 % this patent is cited more than
- 11 Age
