SILENCER FOR A ROLL CONTAINER
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 29, 2014
app pub date -
Nov 26, 2013
filing date -
Nov 27, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

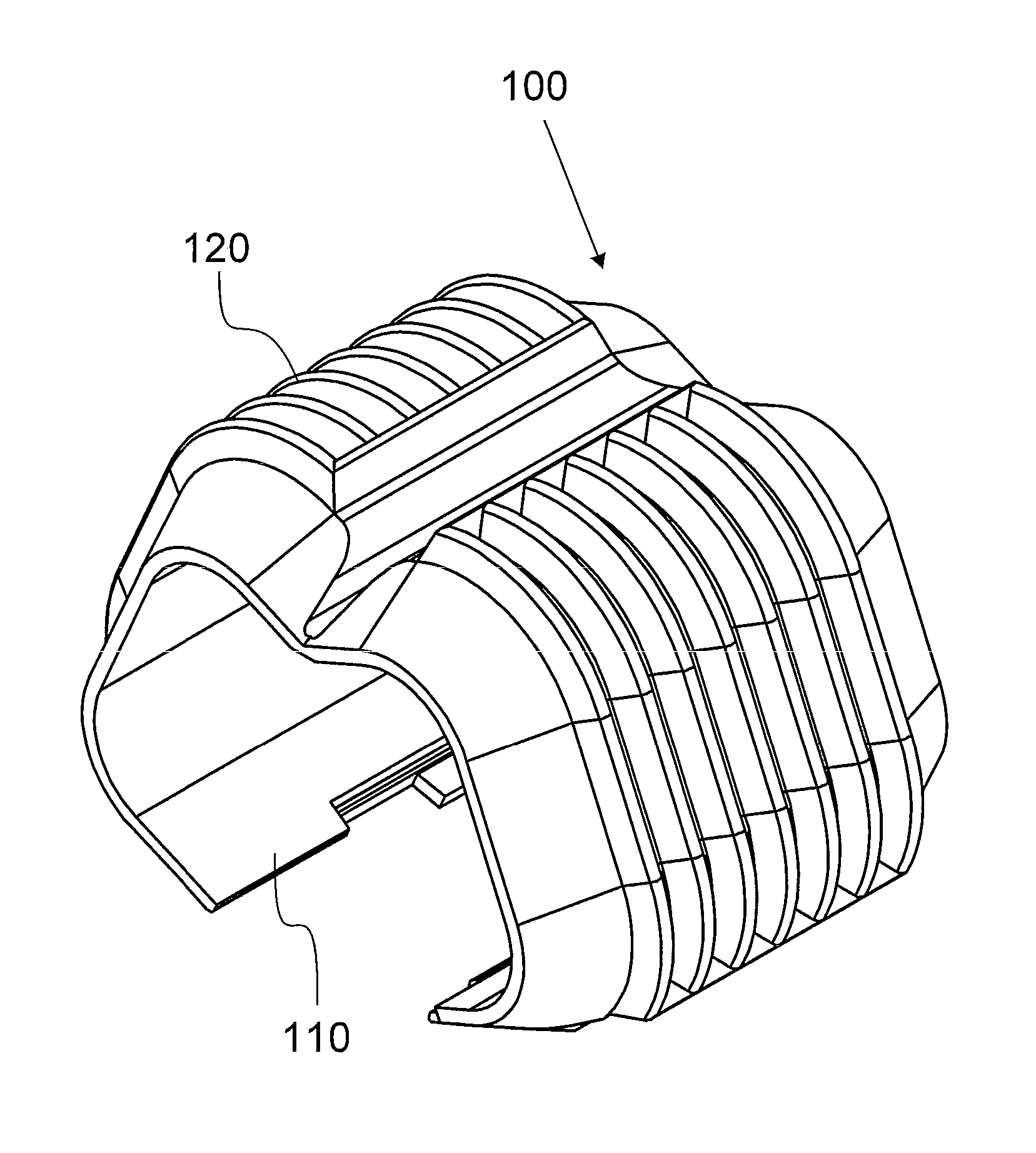

The present invention provides a silencer profile for a roll container which can be retro-fitted and which eliminates noise resulting from metal frame sections of the roll container making contact. The novel silencer may include an engaging portion which has an interior surface configured to engage to a profile of the roll container in an at least partly enclosing manner. The engaging portion also has an exterior surface that opposes the interior surface. The silencer also includes a compression portion formed on the exterior surface of the engaging portion for receiving external impacts. The compression portion features a relieved profile for extending the compression length of the compression portion. The compression portion has durometer value substantially smaller than the durometer value of the engaging portion.
First Claim
Other Claims data not available
