UNDERCOUNTER ICE MAKER WITH INCREASED CAPACITY ICE STORAGE BIN
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 29, 2014
app pub date -
Nov 27, 2013
filing date -
Nov 28, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

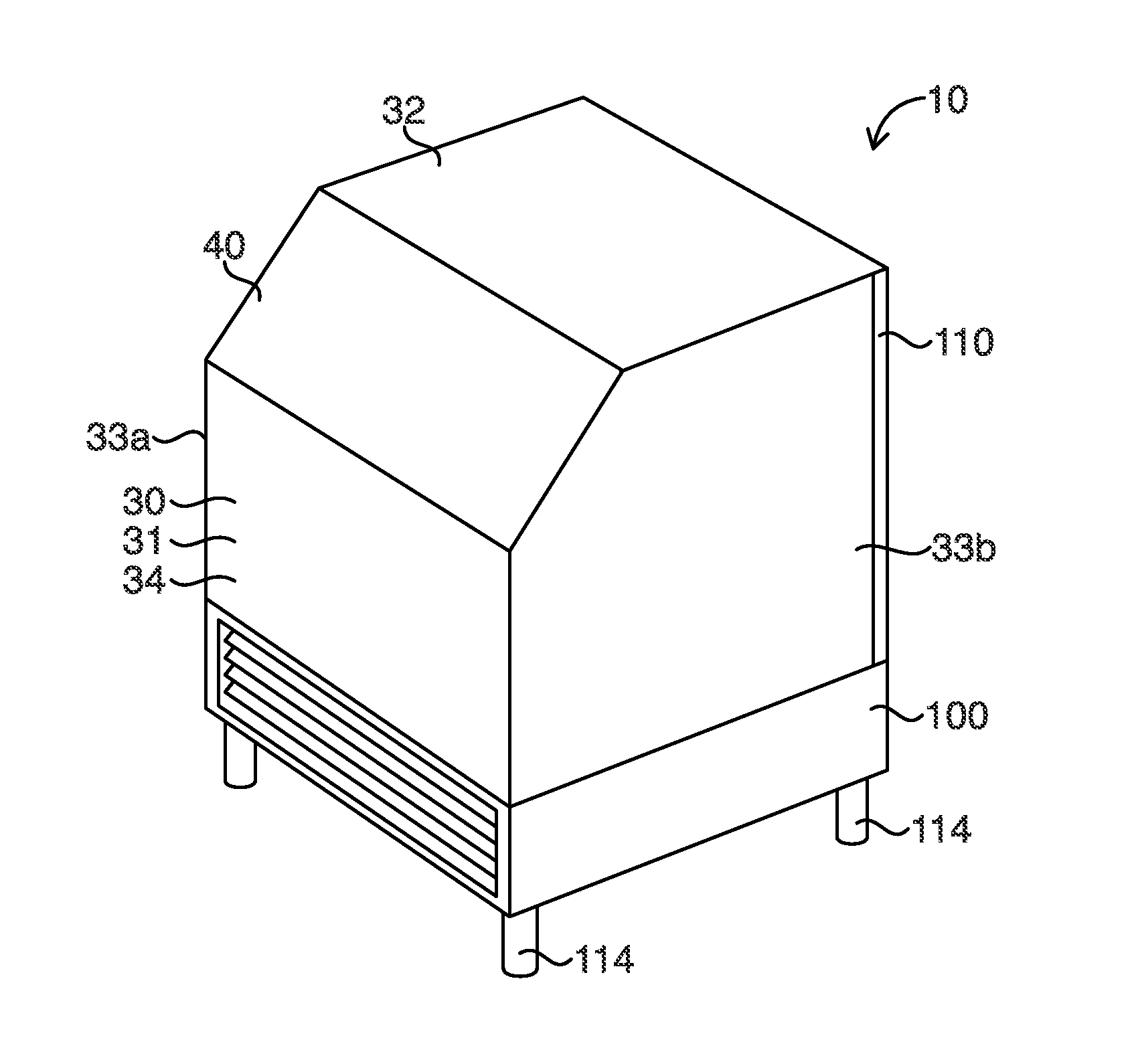

An undercounter ice maker assembly comprising an ice maker chassis having a bottom panel, a front panel, a left panel, a right panel, and a back panel. The back panel comprises a bottom portion and a top portion and the bottom panel includes one or more openings. The bottom panel, front panel, left panel, right panel, and the bottom portion of the back panel define a refrigeration system compartment having a reduced height. The undercounter ice maker assembly further includes an ice maker disposed in the ice maker chassis, wherein the ice maker comprises an evaporator, a compressor, a condenser, and one or more condenser fans. The one or more condenser fans each have an axis of rotation which are disposed at an angle Θ with respect to the bottom panel and air can enter or exit the undercounter ice maker assembly through the one or more openings of the bottom panel.
