TUMBLE DRYER WITH A HUMIDITY SENSOR SYSTEM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 29, 2014
app pub date -
Nov 28, 2011
filing date -
Nov 29, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

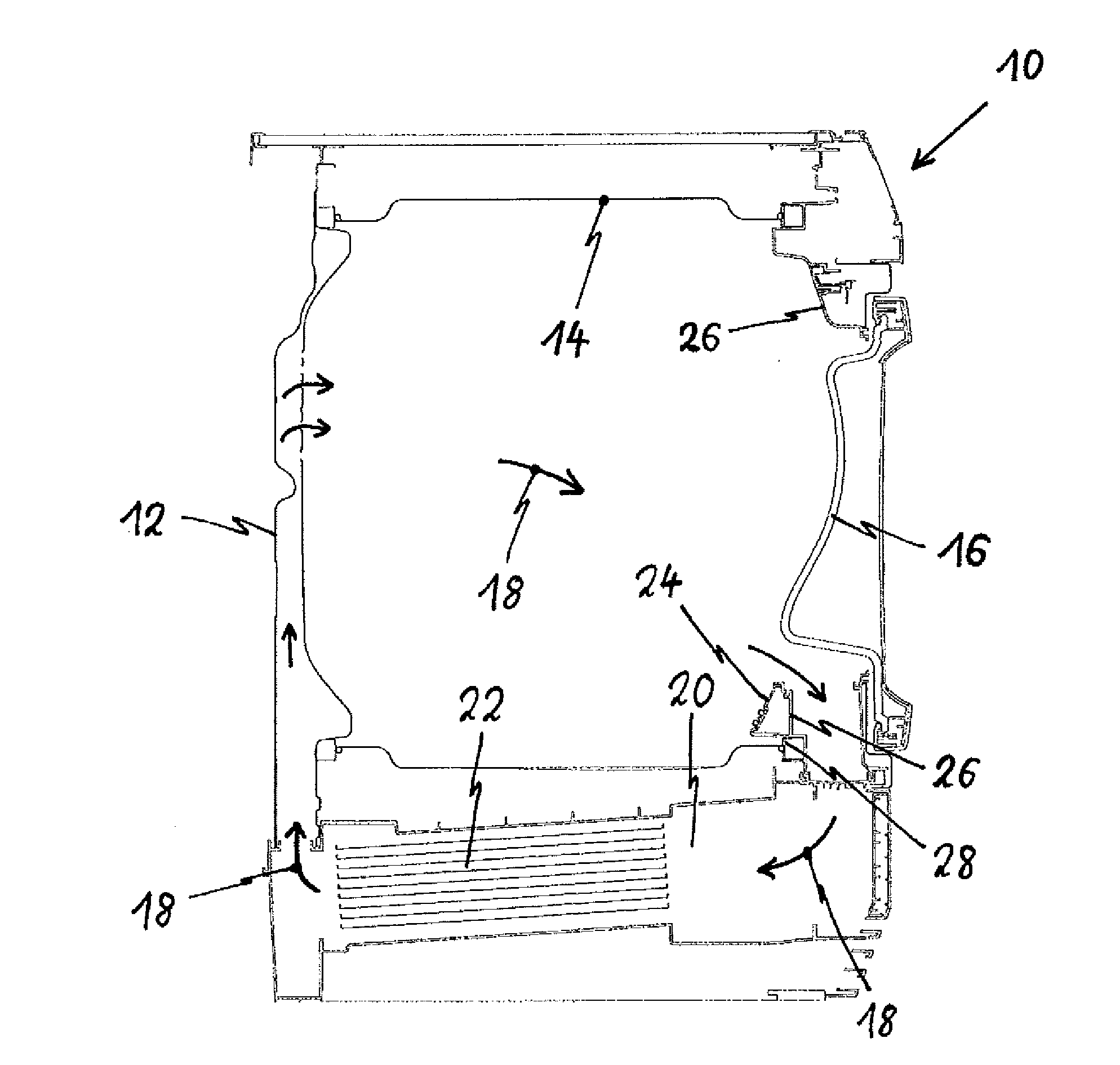

A tumble dryer includes: a laundry drum for loading/unloading the laundry; a humidity sensor system with at least one support for two or more electrodes, electrically insulated from one an-other and positioned in such a way that the electrodes are placed into or face the inside of the laundry drum, so as to contact the laundry loaded into the latter. The electrodes are electrically connected or connectable to a detection circuit and/or a control unit of the tumble dryer. Advantageously the support comprises at least two seats or channels for receiving the electrodes. Each seat or channel comprises at least one retaining element adapted for retaining a respective electrode the seat or channel.
First Claim
Other Claims data not available
