METHODS OF FORMING GRADIENT INDEX (GRIN) LENS CHIPS FOR OPTICAL CONNECTIONS AND RELATED FIBER OPTIC CONNECTORS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 29, 2014
app pub date -
Nov 28, 2012
filing date -
Nov 28, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

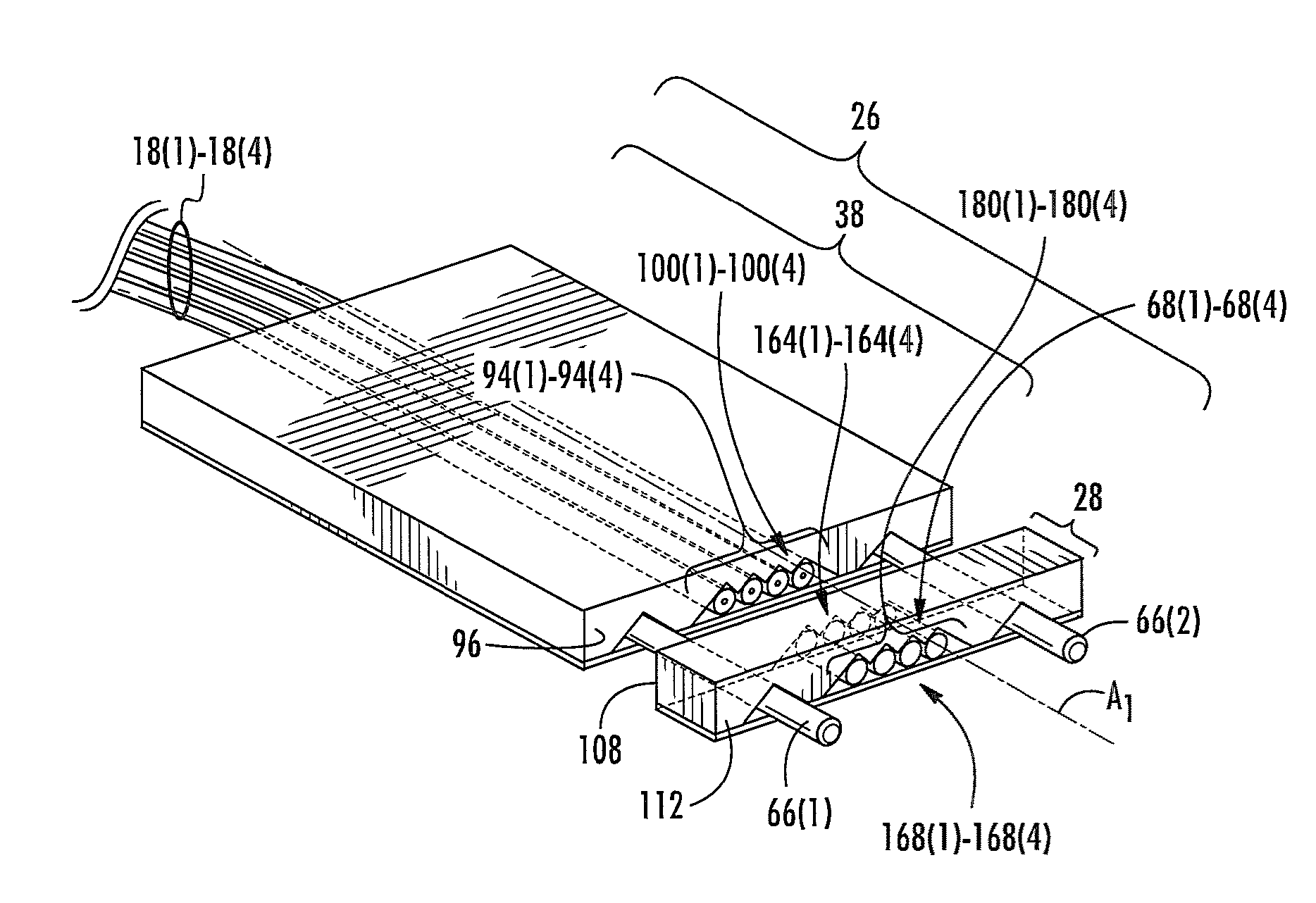

Gradient index (GRIN) lens chips for optical connections, and related methods of creating GRIN lens chips are disclosed. Each GRIN lens chip may include at least one GRIN lens and a GRIN lens holder for aligning the GRIN lens in an optical connection. When creating a GRIN lens chip, a shaped substrate may be provided including a GRIN lens holder and at least one GRIN groove for securing and aligning the GRIN lens relative to the GRIN lens holder. The GRIN lens may be part of a GRIN lens rod. By freeing the GRIN lens holder from the shaped substrate, the GRIN lens holder may include a fiber mating surface and a terminal mating surface. The fiber mating surface and the terminal mating surface may be used to align the GRIN lens holder in the optical connection.
