BACK CONTACT TO FILM SILICON ON METAL FOR PHOTOVOLTAIC CELLS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Feb 5, 2014
filing date -
Aug 6, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

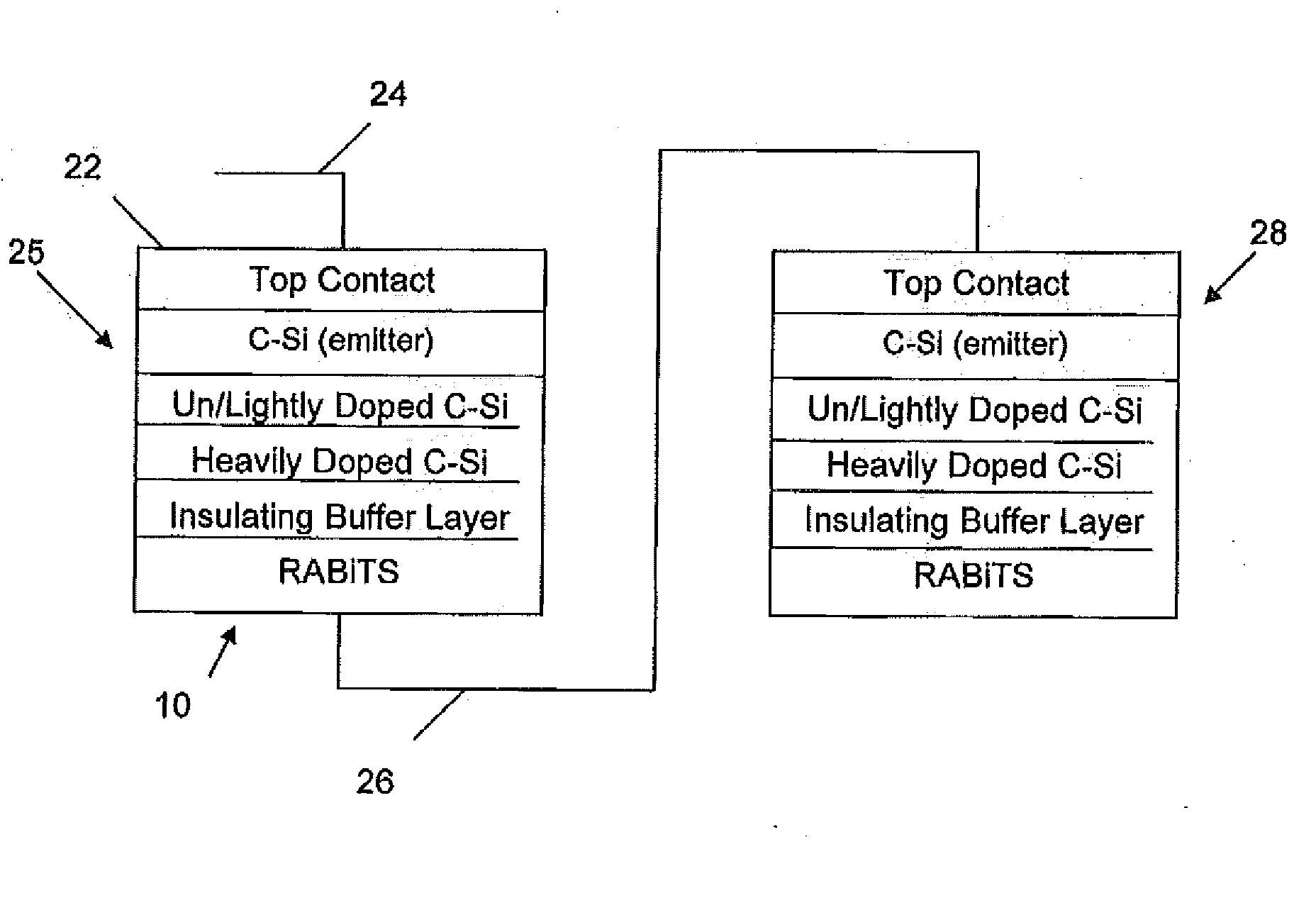

Systems and Methods for back contact to film silicon on metal for photovoltaic cells are provided. In one embodiment, a method for creating a conductive pathway in a photovoltaic cell comprises: obtaining a layered photovoltaic device comprising: a metal substrate with a crystal orientation; a crystal semiconductor layer with the crystal orientation; and a heteroepitaxially grown buffer layer positioned between the substrate and the crystal semiconductor layer; and forming one or more conductive pathways between the crystal semiconductor layer and the metal substrate, the pathways being through at least a portion of the buffer layer.
