Process for making coated cold-rolled dual phase steel sheet

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9790567
APP PUB NO 20140141279A1
SERIAL NO

14084942

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

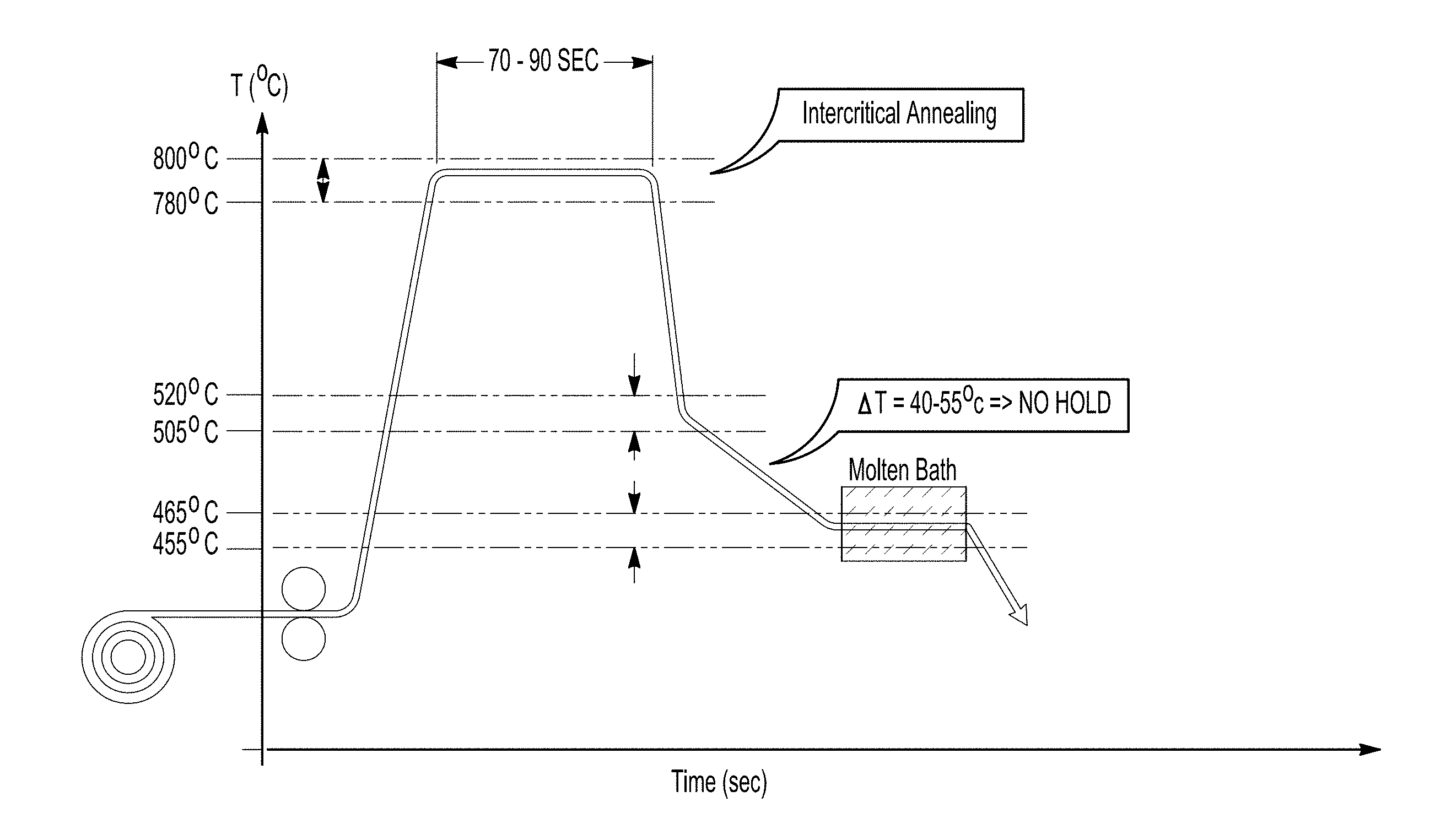

A coated dual-phase steel and process for producing the coated dual-phase steel is provided. The process includes providing a steel slab with a desired chemistry, soaking the slab at an elevated temperature and then hot rolling the slab to produce hot-rolled strip. The hot-rolled strip is coiled and has a ferrite-pearlite microstructure. The coiled hot-rolled strip is cold-rolled into cold-rolled sheet with at least a 60% reduction in thickness compared to the thickness of the coiled hot-rolled strip. The cold-rolled sheet is subjected to an intercritical anneal followed by rapid cooling with the absence of an isothermal heat treatment or hold after rapid cooling near the molten metal pot temperature—during which, before or after which the steel is coated. The coated steel sheet has a dual-phase ferrite-martensite microstructure, a yield strength of at least 310 MPa, a tensile strength of at least 580 MPa and a total elongation to failure of at least 18%.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
THYSSENKRUPP STEEL USA LLC1 THYSSENKRUPP DRIVE CALVERT AL 36513

International Classification(s)

loading....
  • 2013 Application Filing Year
  • C21D Class
  • 530 Applications Filed
  • 450 Patents Issued To-Date
  • 84.91 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances20132014201520162017201820192020202120220255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Bevans, Stanley Wayne S.W. Decatur, US 11 12
Boggs, Roger Dale Columbus, US 5 9
Ehrhardt, Bertram Wilhelm Mobile, US 13 14
Frimpong, Joseph Saraland, US 7 10
Jamwal, Ranbir Mobile, US 2 0
Van, Bracht Harald Theodore, US 5 10

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 0 Citation Count
  • C21D Class
  • 0 % this patent is cited more than
  • 8 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges7894201 - 1011 - 2005101520253035404550556065707580859095100

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
7.5 Year Payment $3600.00 $1800.00 $900.00 Apr 17, 2025
11.5 Year Payment $7400.00 $3700.00 $1850.00 Apr 17, 2029
