CONNECTION SURFACE FOR A STRUCTURAL UNIT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 22, 2014
app pub date -
Nov 15, 2013
filing date -
Nov 16, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

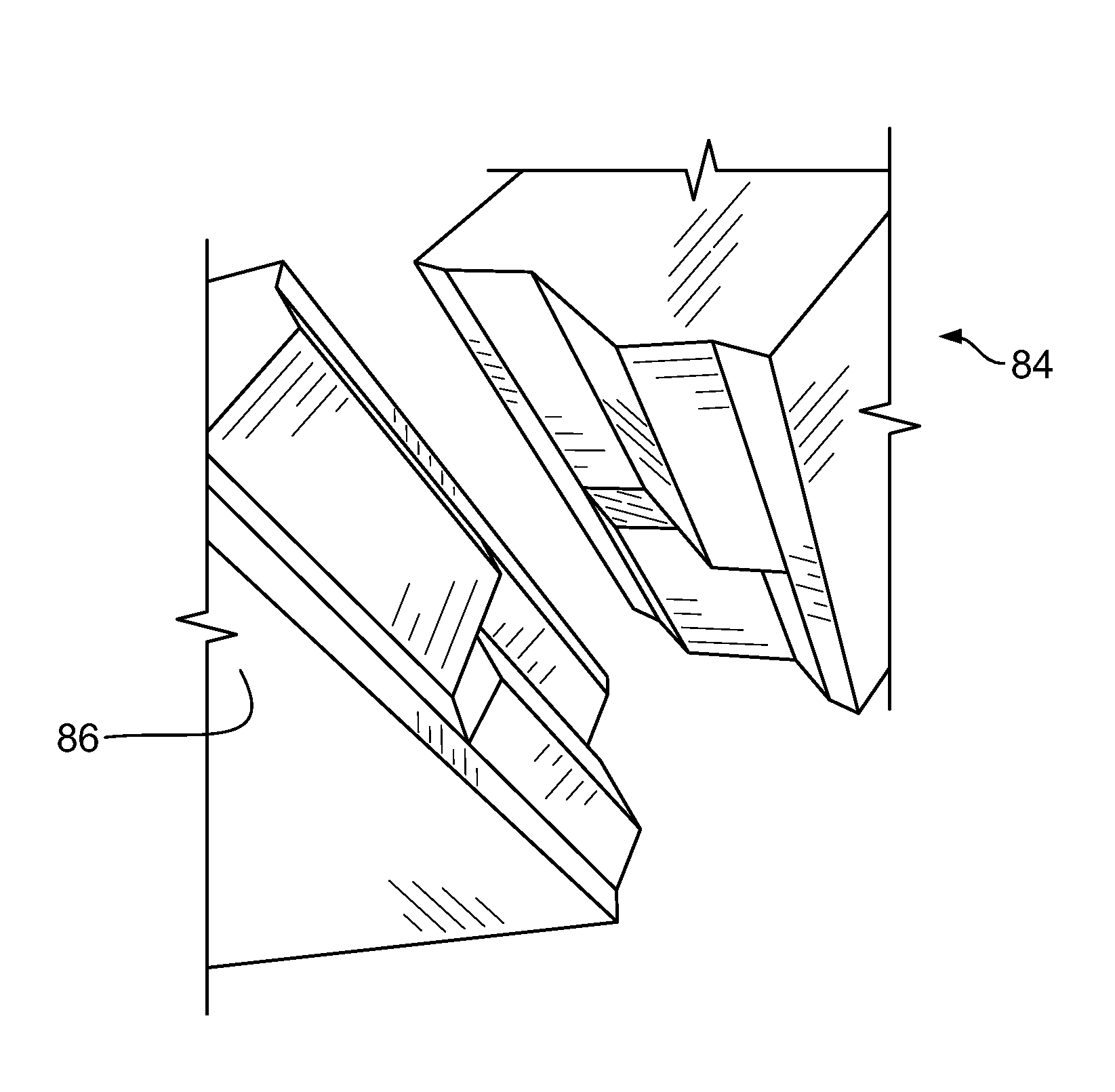

A connection surface that is disposed on at least a portion of a face of a structural unit comprises a first convex surface and a first concave surface arranged substantially along a first line. The shape of the first concave surface is complementary to the shape of the first convex surface. A second convex surface and a second concave surface are arranged substantially along a second line that is substantially parallel to the first line. The shape of the second concave surface is complementary to the shape of the second convex surface. The concave-convex order of the second line is reversed relative to the first line, such that the second convex surface corresponds with the first concave surface and the second concave surface corresponds with the first convex surface.
First Claim
Other Claims data not available
