Dual Source Mass Spectrometry System
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 22, 2014
app pub date -
Jan 24, 2014
filing date -
Mar 6, 2009
priority date (Note) -
Abandoned
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

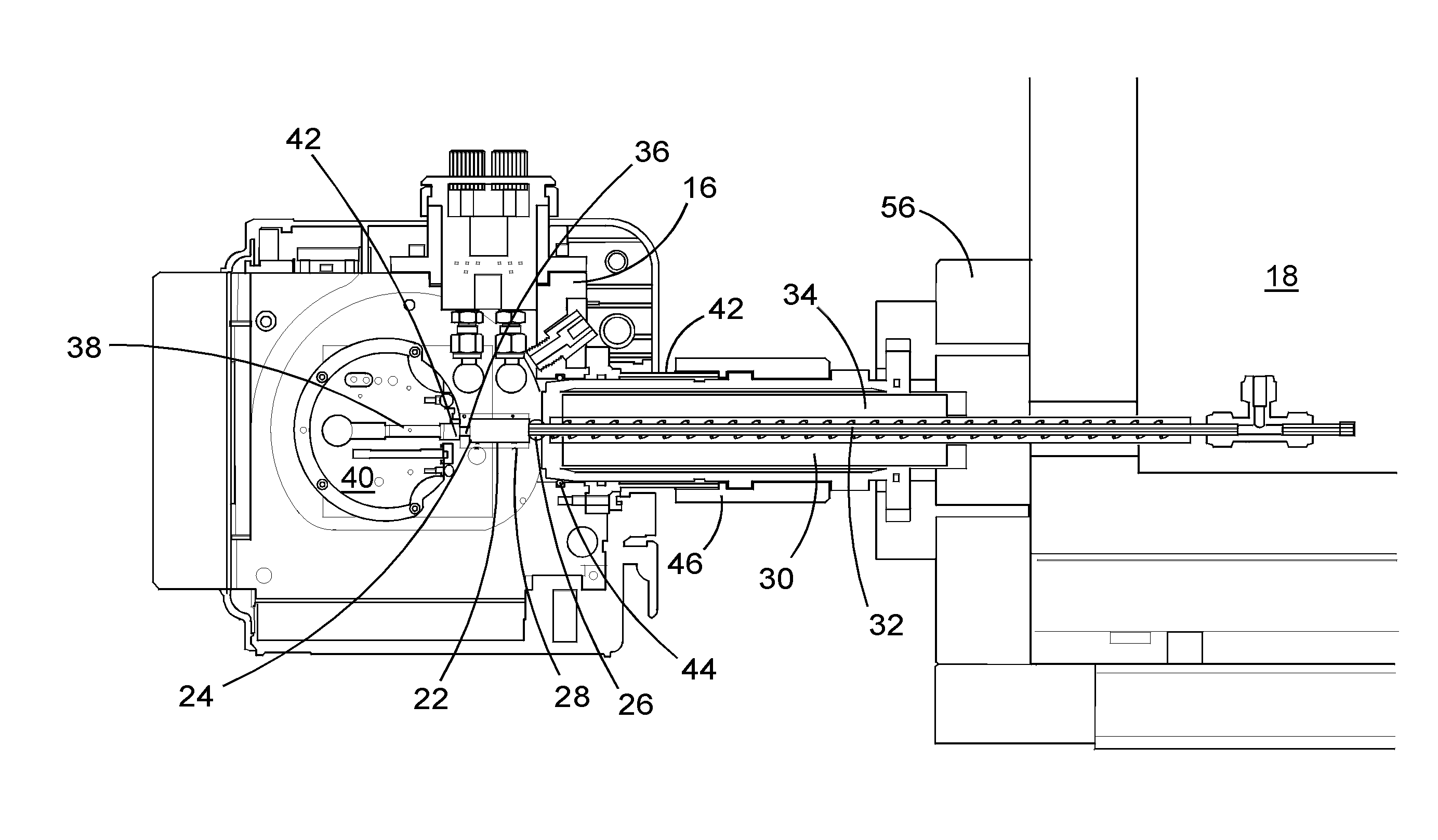

A dual source mass spectrometer system (10) is operable in a first mode with an LC source [LC/MS] (12) and in a second mode with a GC source [GC/MS] (18). The GC source inputs into an ion source chamber (22) for delivering the ionized output from the GC source to the mass spectrometer. The GC source comprises a GC interface probe (30) which is retractably connected to the ion source chamber to take the GC interface probe from a retracted position in which it is disengaged from the mass spectrometer (whereby the system is operable in the first LC/MS mode) into a deployed position in which the GC interface probe is operatively connected to the ion source chamber of the mass spectrometer(whereby the system is operable in said second GC/MS mode).
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
MICROMASS UK LIMITED | CHESHIRE SK9 4AX |
International Classification(s)

- 2014 Application Filing Year
- G01N Class
- 10055 Applications Filed
- 7887 Patents Issued To-Date
- 78.44 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Newton, Anthony | Stockport, GB | 11 | 86 |
# of filed Patents : 11 Total Citations : 86 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 0 Citation Count
- G01N Class
- 0 % this patent is cited more than
- 11 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 22, 2025 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
- No Legal Status data available.

Matter Detail

Renewals Detail
