Animation and visualization of traffic data analytics in a dashboard presentation of a roadway performance measurement system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 21, 2017
Grant Date -
May 15, 2014
app pub date -
Nov 8, 2013
filing date -
Nov 9, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

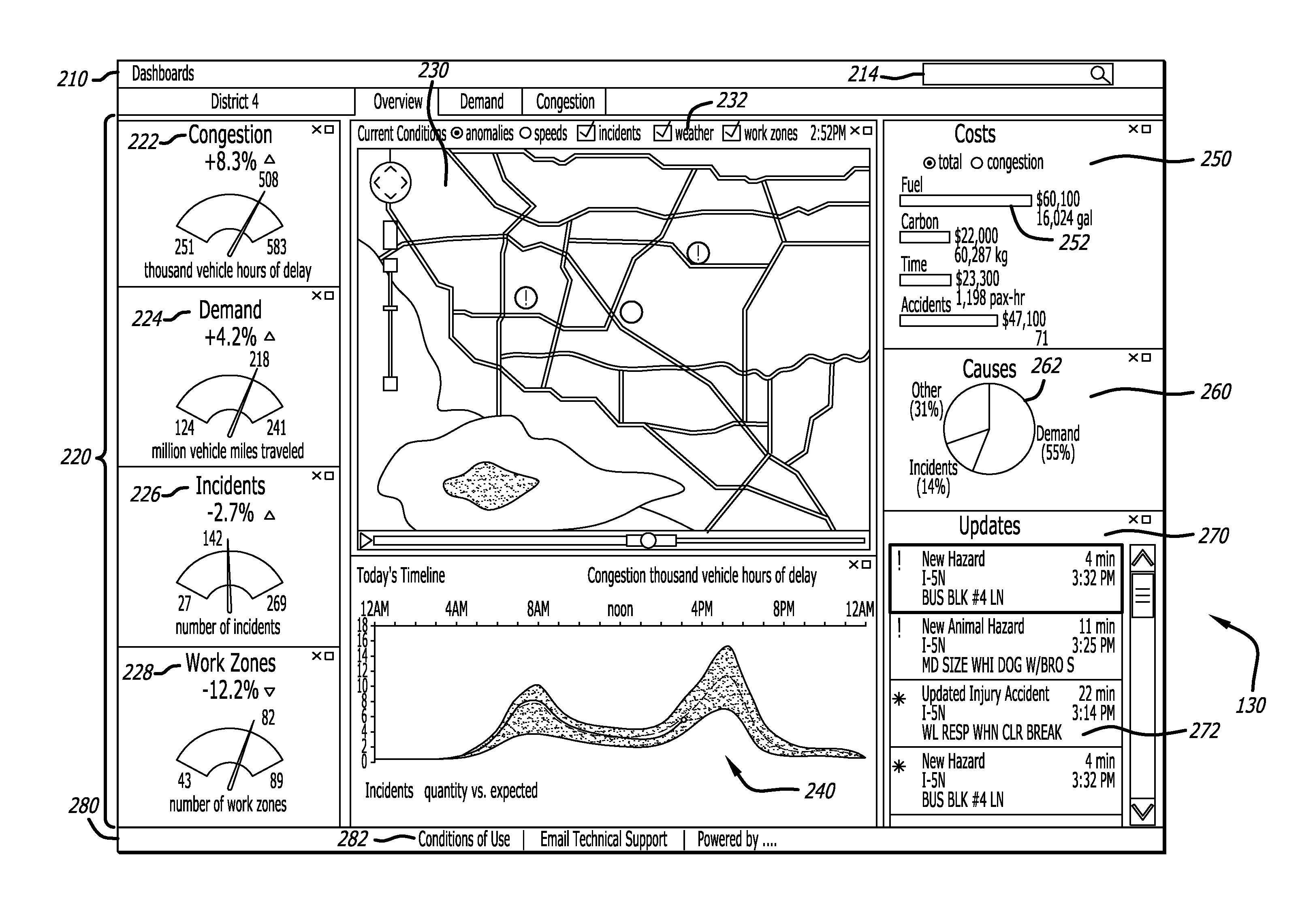

Animation and visualization of roadway performance analytics in a dashboard presentation in an integrated performance measurement system comprises analyzing collected traffic data to generate measured congestion information that reflects current conditions in one or more links, segments, or corridors comprising a roadway. The measured congestion information is presented in one or more sets of indicia on a graphical user interface so that current congestion conditions can be viewed and analyzed by a user. The measured congestion information is represented as gauges displaying percentage increases or decreases relative to a particular time, as animated maps showing a selectable set of current congestion conditions, as one or more graphs of current congestion conditions over time, as chart-based displays of costs and causes of current congestion conditions, and a data feed listing textual live updates.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- G08G Class
- 1014 Applications Filed
- 919 Patents Issued To-Date
- 90.64 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G08G Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 21, 2028 |
