CONTROL-BY-WIRE HYDRAULIC BRAKE STRUCTURE OF BICYCLE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 8, 2014
app pub date -
Nov 6, 2012
filing date -
Nov 6, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

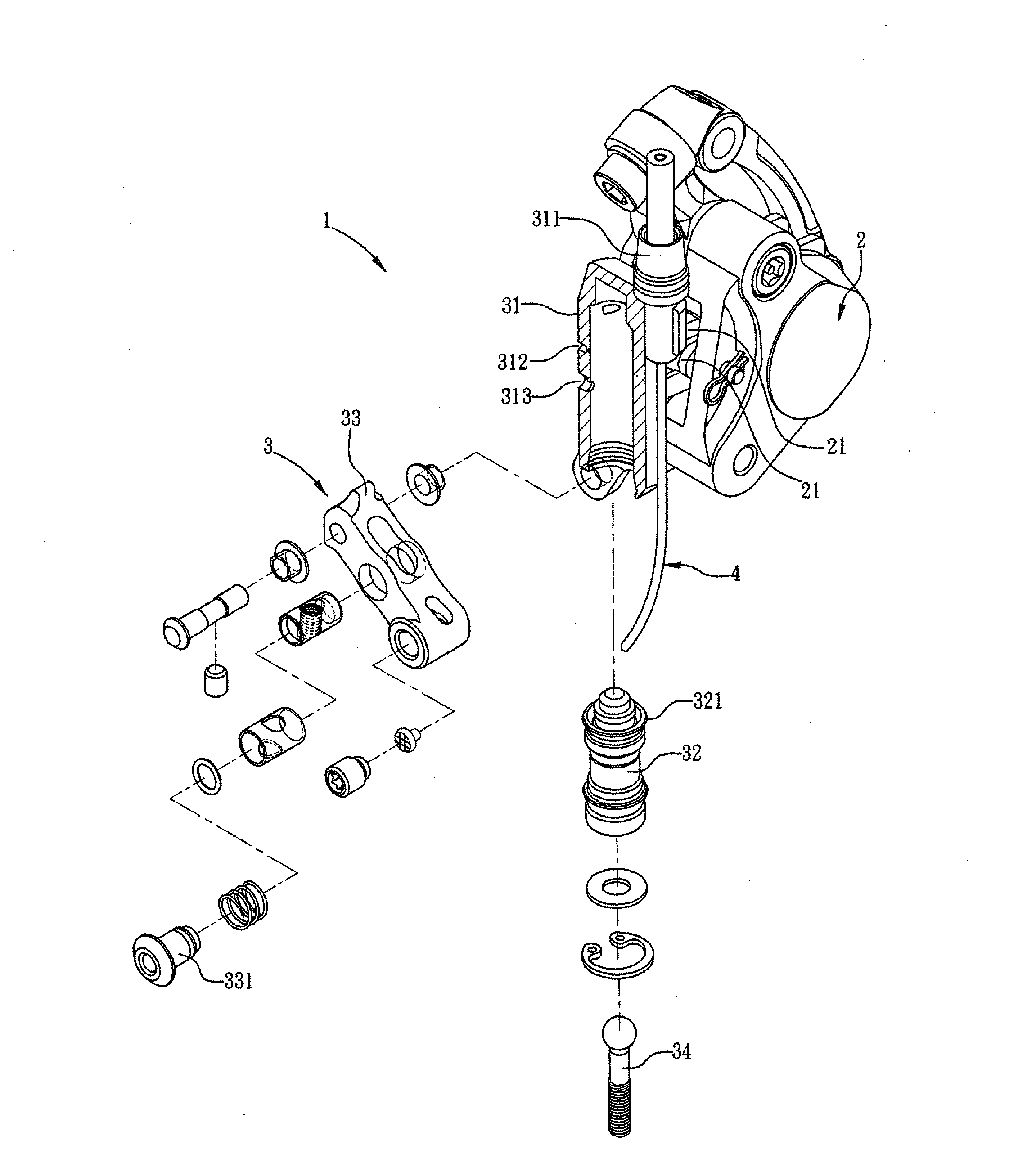

The present invention relates to a control-by-wire hydraulic brake structure of bicycle, which includes a caliper portion that is coupled to two brake shoes that are opposite to and spaced from each other; and a transmission portion, which has an end connected to the caliper portion to control the operation of the two brake shoes of the caliper portion and includes a fluid reservoir, a piston, and a transmission arm. The piston is movably received in the fluid reservoir. The transmission arm has an end pivotally connected to an end of the fluid reservoir that is distant from the caliper portion. The piston has an end that is connected to a predetermined location between two ends of the transmission arm. The transmission arm has an end that is distant from the pivotal connection with the fluid reservoir and is operatively coupled to a brake wire.
First Claim
Other Claims data not available
