ELECTRIC TREADMILL
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 1, 2014
app pub date -
Nov 7, 2012
filing date -
Oct 25, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

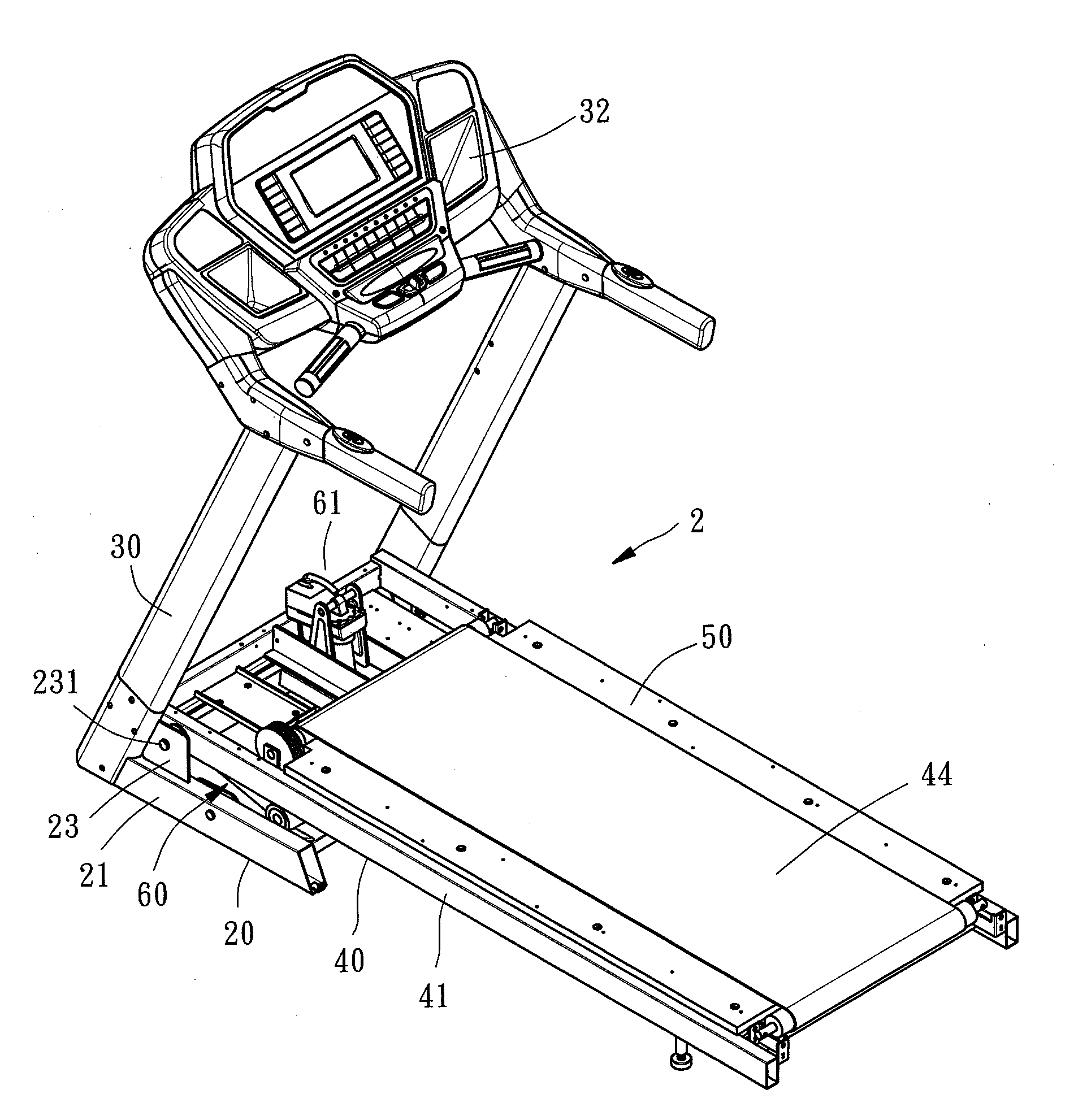

An electric treadmill includes a base, vertical posts coupled to the base, a desk with a treading belt, and a lifting and folding device. The lifting and folding device includes a linear actuator disposed on the desk and having a retractable lifting pipe, a lifting unit connected to the desk, a pivotal connection point protruding from the desk, first and second lateral panels, and a fixing stand disposed between the second lateral panels and connected to the lifting pipe, two movable pivotal connection elements disposed at free ends of the first lateral panels, respectively, two linking plates connected to the first lateral panels and a link, two position-limiting elements disposed between the base and the lifting unit, connected to two lateral bars of the base by an axle, and having a slot each, and two guide rods coupled to the first lateral panels and inserted into the slots.
