POWER FEED ENTRY CIRCUIT FOR TELECOMMUNICATION APPLICATIONS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 1, 2014
app pub date -
Nov 1, 2012
filing date -
Nov 1, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

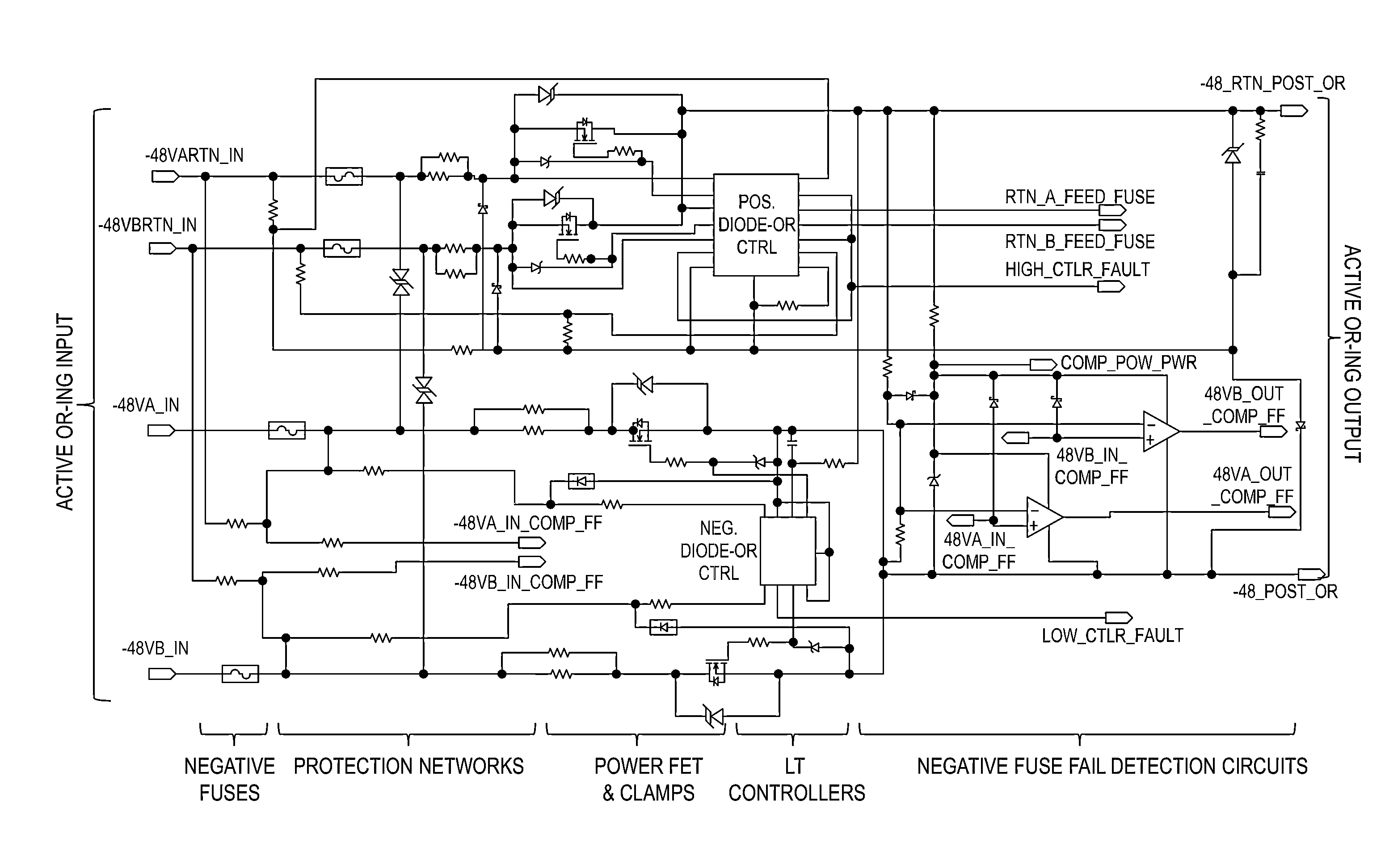

A power feed entry circuit, a module with the power feed entry circuit, and a daughter board with the power feed entry circuit include a first circuit coupled to inputs and outputs, wherein the first circuit is configured for power connections, return isolation relays, diode Or-ing, and output status-indication light-emitting diodes (LEDs); a second circuit coupled to the first circuit, the inputs, and the outputs, wherein the second circuit is configured with a hot swappable controller and provides common-mode and differential mode power line filtering; a third circuit coupled to the first circuit, wherein the third circuit is configured for alarm monitoring of the first circuit and the second circuit; and a fourth circuit coupled to the first circuit and the third circuit, wherein the fourth circuit comprises a dual feed high and low active field effect transistor Or-ing circuit.
First Claim
Other Claims data not available
