REINFORCEMENT STRUCTURE FOR VEHICLE SLIDE DOOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 1, 2014
app pub date -
Mar 28, 2013
filing date -
Apr 23, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

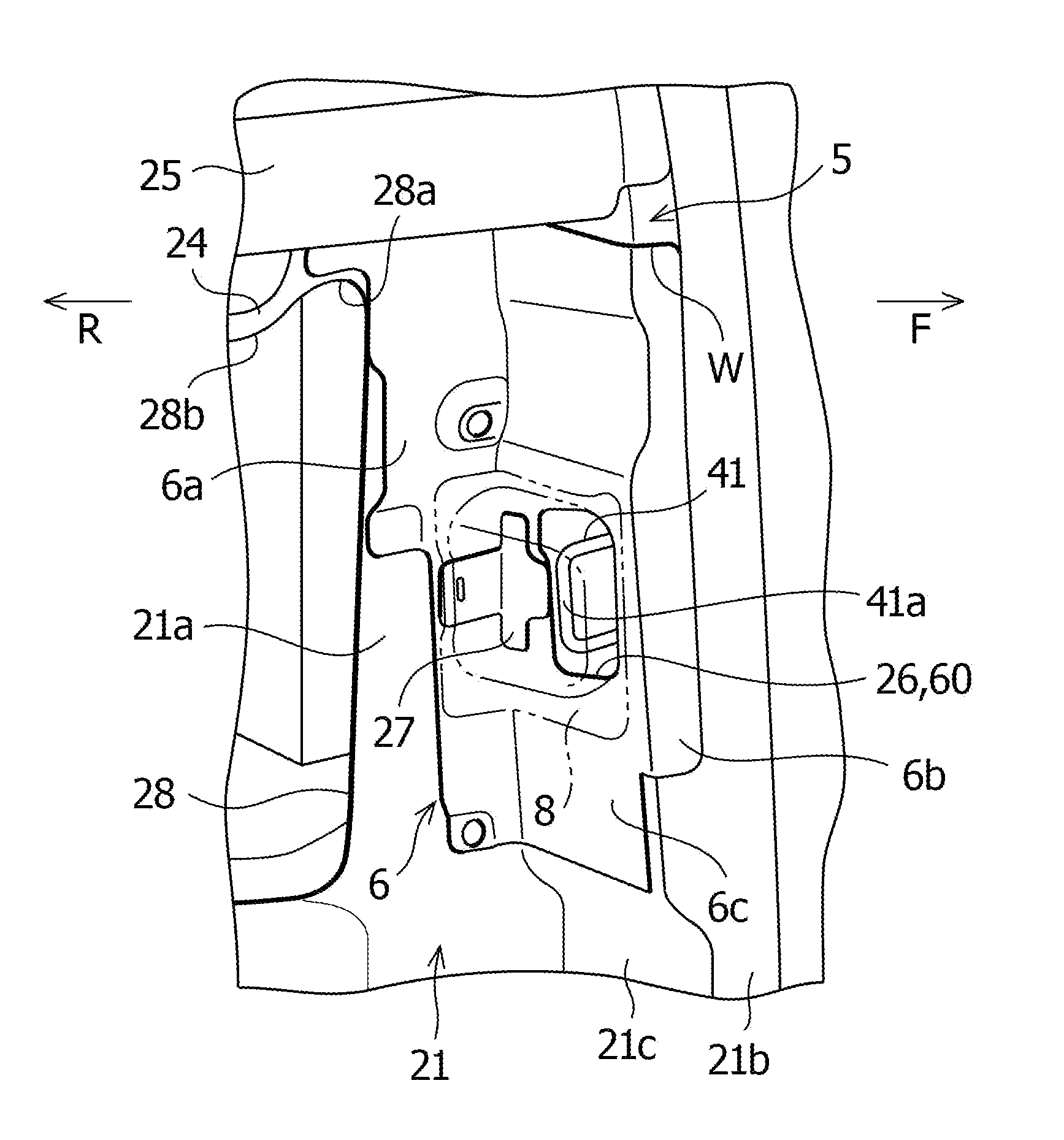

A front side of the rear slide door 2 is held with the hook 27 being engaged with the striker 41 when a load from inside of a vehicle interior is applied to the rear slide door 2, upper and lower-side reinforcement members 5 and 6 that are joined to panel surfaces 21a to 21c at the front portion of the door inner panel 21 are provided along an upper-lower direction around the hook 27, a lower portion of the upper-side reinforcement member 5 and an upper portion of the lower-side reinforcement member 6 are joined together in an overlapped state, and a position in the upper-lower direction of a joined portion W where the reinforcement members 5 and 6 are overlap is arranged at a same height as the member portion 24 in front view.
First Claim
Other Claims data not available
