HEAT EXCHANGER
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 1, 2014
app pub date -
Jun 25, 2012
filing date -
Jun 28, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

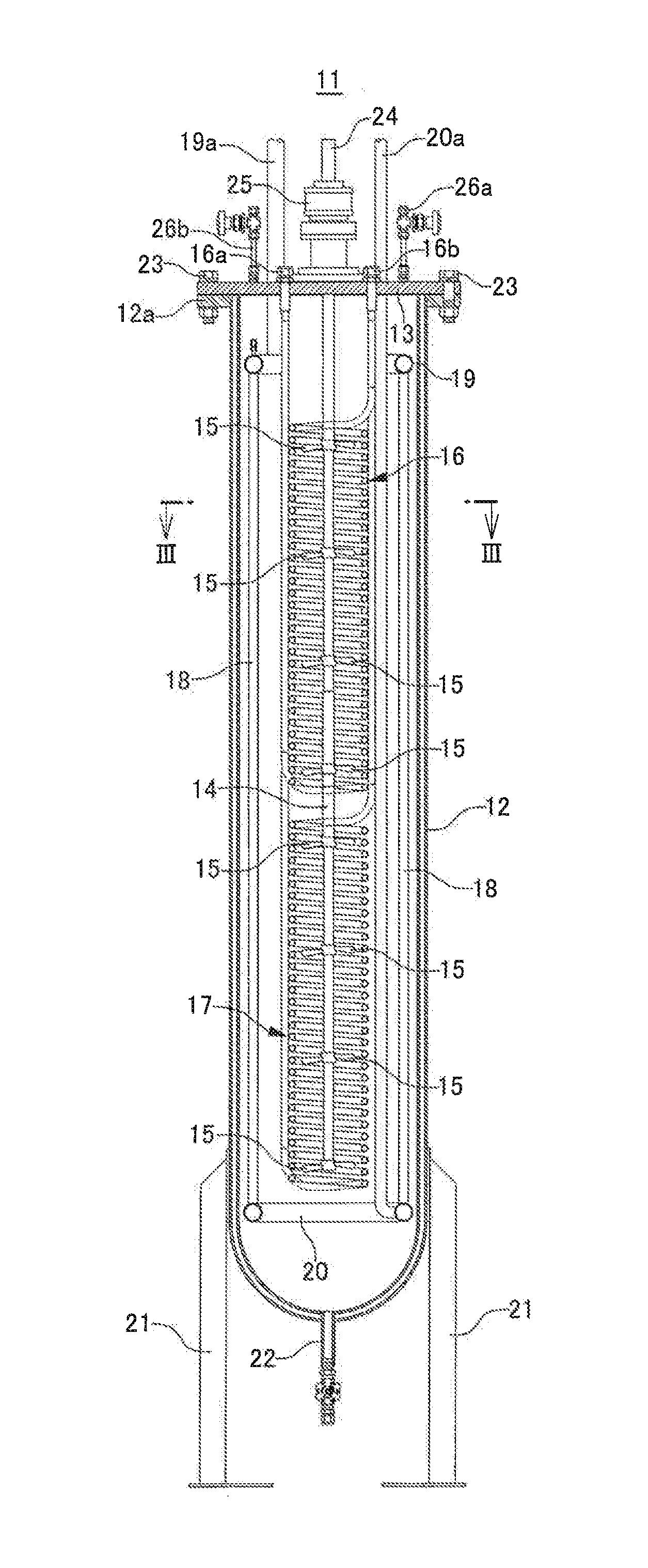

Provided is a heat exchanger in which heat exchange between a low-temperature cooling medium and brine and heat exchange between brine and hydrogen gas can be efficiently performed and downsizing of cooling facilities or reduction in facility cost can be attained. The heat exchanger comprises: a vacuum insulated container 12 which is filled with brine, a lid 13 closing an upper portion opening of the container, a rotation axis 14 arranged in the axis direction of the container, a propeller 15 provided on the rotation axis, a helical hydrogen gas cooling tube 16, 17 provided in a vertically two-stage structure around the rotation axis and the propeller, and a cooling medium tube 18 for cooling brine which is arranged around the hydrogen gas cooling tubes.
