RAILWAY TANK CAR SECURITY DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 24, 2014
app pub date -
Oct 24, 2012
filing date -
Oct 24, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

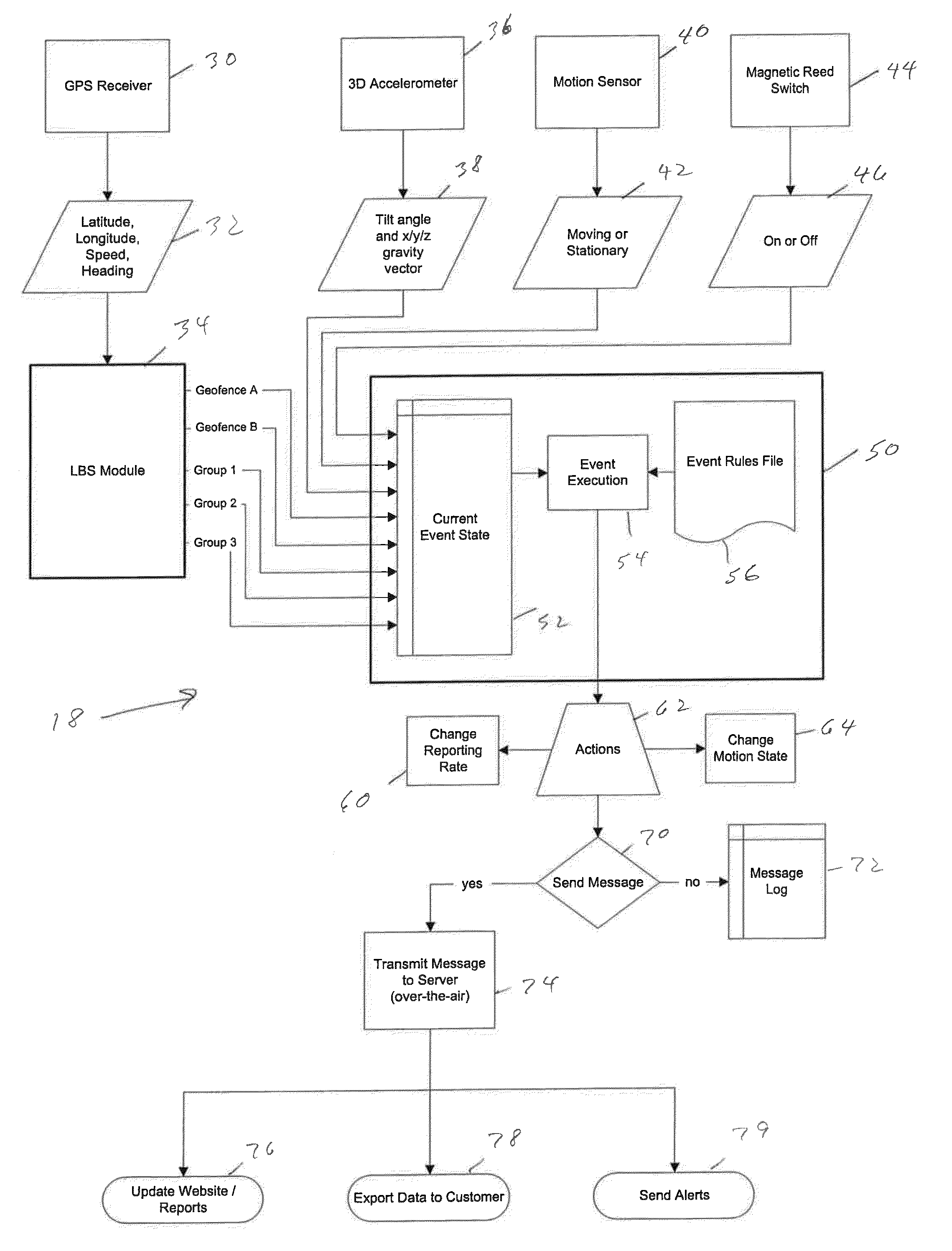

A railcar sensing system is provided that in particular provides a system for sensing the orientation of a hatch of a railway tank car. The railcar sensing system includes an accelerometer for sensing the orientation of the hatch, a position sensing device for detecting the global position of the railcar, and a processing unit. The accelerometer sends a first signal to the processing unit when the orientation of the hatch changes more than a predetermined angle. The processing unit also senses whether the railway tank car is outside one of the preselected safe zones. If the railway tank car is located outside one of the preselected safe zones, and the accelerometer senses that the hatch orientation has been changed more than a predetermined angle, an alert signal is sent to a receiver indicative of such event.
First Claim
Other Claims data not available
