ATOMIZING DEVICE AND ELECTRONIC CIGARETTE HAVING SAME
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 24, 2014
app pub date -
Oct 23, 2013
filing date -
Oct 23, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

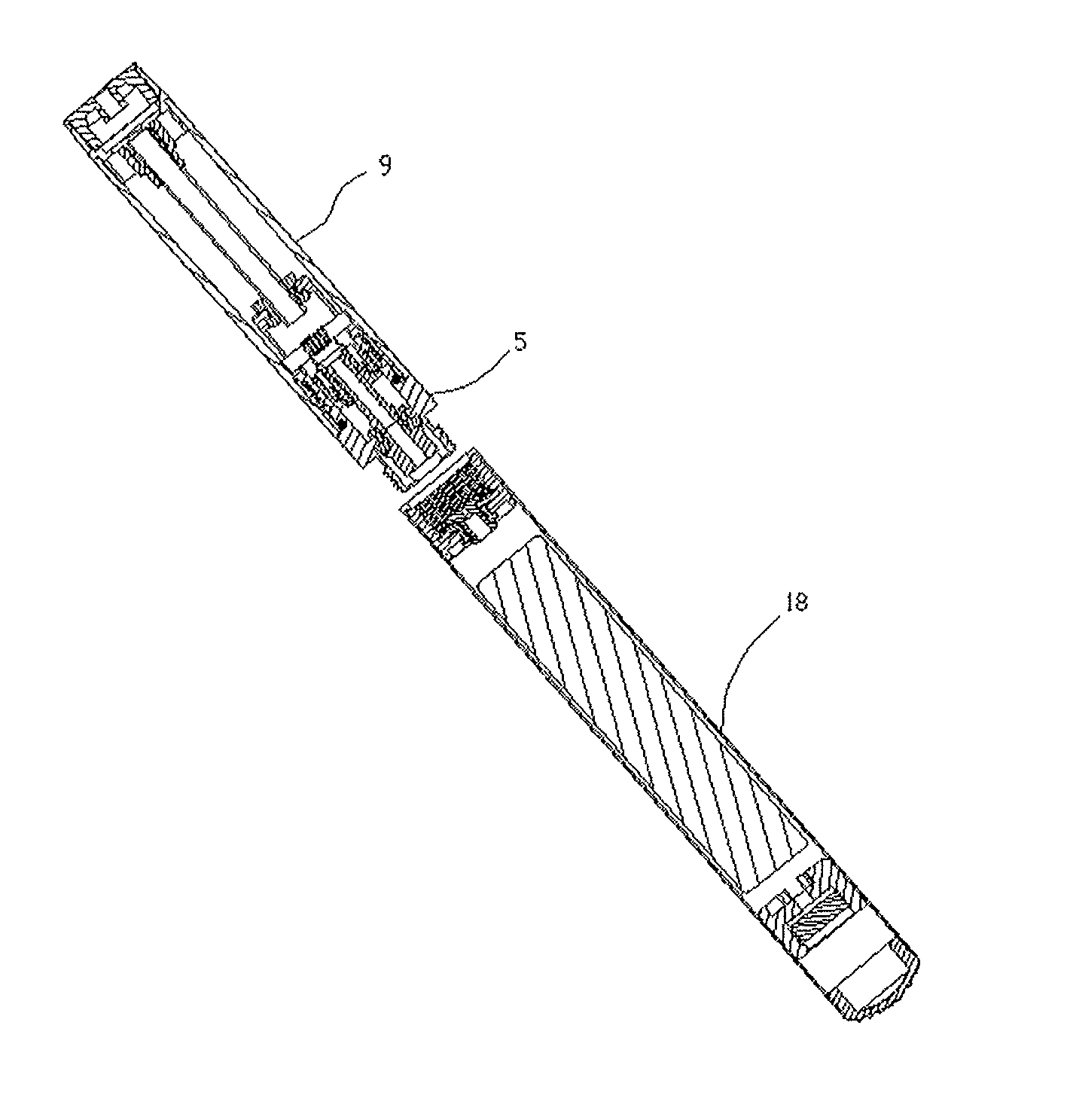

An atomizing device of an electronic cigarette is provided. The atomizing device includes a screw sleeve and an electrode ring fixed in the screw sleeve. The screw sleeve includes a glass fiber core, a heating coil winding around the glass fiber core and a heating coil support. Each of two ends of the heating coil is respectively connected to a silver coated bare electrical wire. The heating coil support has a central through hole and two side wall through holes. The bare electrical wires respectively extend through the side wall through holes which are exposed to two ends of the heating coil support, then respectively in contact with the screw sleeve and the electrode ring. An electronic cigarette having the atomizing device is also disclosed.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| CN | B | CN102894485 | Oct 23, 2012 |
| EP | B1 | EP2724630 | Oct 23, 2013 |
International Classification(s)
- 2013 Application Filing Year
- A24F Class
- 321 Applications Filed
- 260 Patents Issued To-Date
- 81 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 63 Citation Count
- A24F Class
- 83.02 % this patent is cited more than
- 11 Age
