Distributor Incorporating a Heat Exchanger and its Manufacturing Process
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 24, 2014
app pub date -
Oct 17, 2013
filing date -
Oct 19, 2012
priority date (Note) -
Abandoned
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

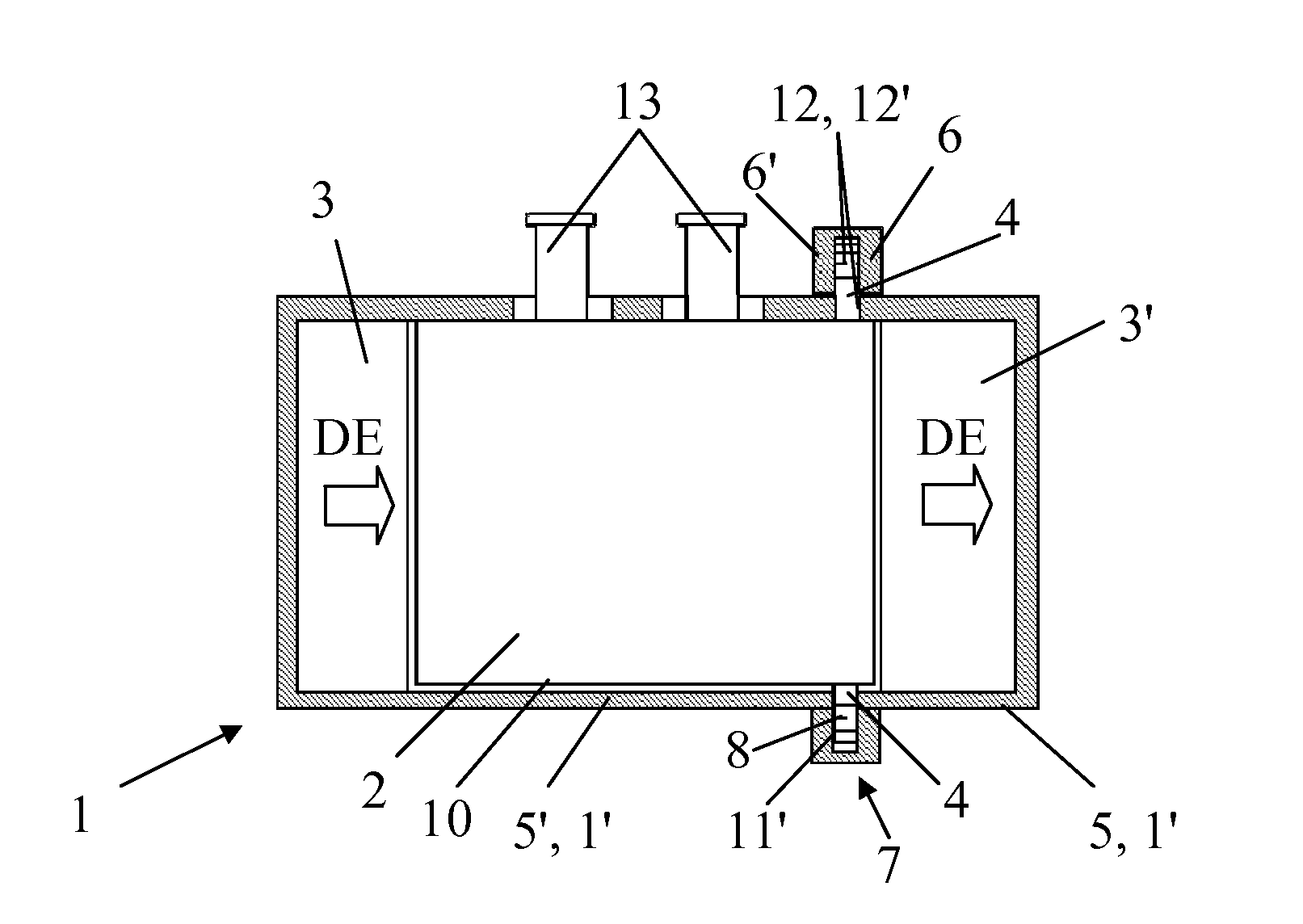

A distributor incorporates a heat exchanger mounted in the interior space of the distributor while being made integral with the wall of the body of the distributor by at least one side flange. The distributor is characterized in that its two constituent parts (5 and 5′) are joined by welding opposing joining edges (6 and 6′), the edges (6, 6′) being connected physically to one another in an airtight manner along a contact area (7) in the form of a peripheral continuous band, surrounding the outer periphery of the flange (4), and mechanically connected, in a localized and discontinuous way, to the flange (4) by engagement at through openings (8) and/or at deformed or radius-chamfered areas of the latter. A process of manufacturing the distributor is also described.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
SYSTEMES MOTEURS (SOCIETE PAR ACTIONS SIMPLIFIEE) | 53 RUE BAUDIN LEVALLOIS-PERRET 92300 |
International Classification(s)

- 2013 Application Filing Year
- F02M Class
- 1202 Applications Filed
- 1045 Patents Issued To-Date
- 86.94 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
ANCEL, Benoit | EGUISHEIM, FR | 2 | 1 |
# of filed Patents : 2 Total Citations : 1 | |||
BECKER, Nicolas | COLMAR, FR | 21 | 18 |
# of filed Patents : 21 Total Citations : 18 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 1 Citation Count
- F02M Class
- 6.67 % this patent is cited more than
- 11 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 24, 2025 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
- No Legal Status data available.

Matter Detail

Renewals Detail
