Liquid Flow Battery System and Repairing Device Thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 10, 2014
app pub date -
Nov 9, 2011
filing date -
Jun 7, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

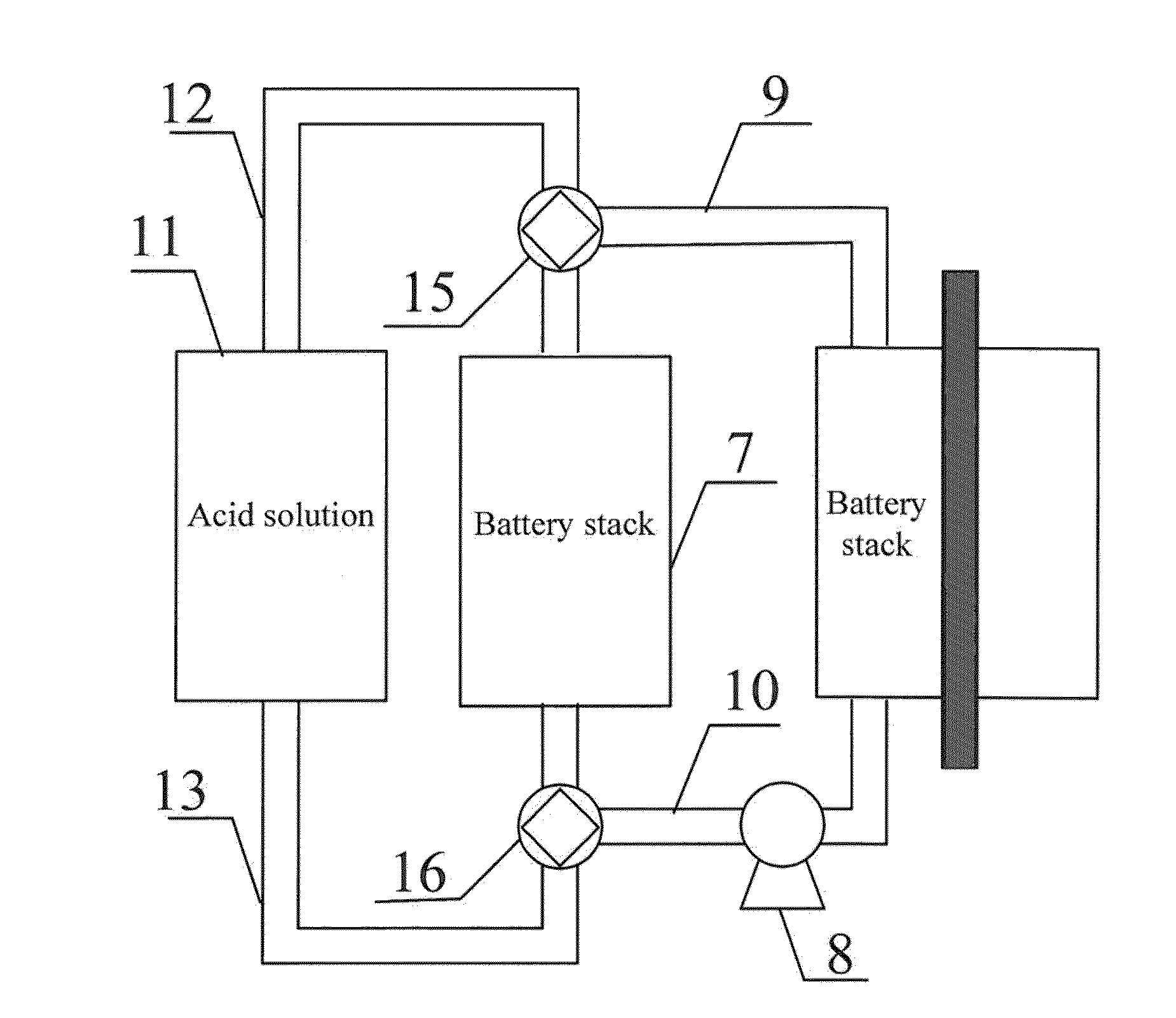

The disclosure discloses a liquid flow battery system and a repairing device thereof. The repairing device, used for cleaning a battery stack of the liquid flow battery system, comprises an acid liquid storage tank (11), configured to store an acid solution; a first acid liquid pipe (12) connected with a first end of the acid liquid storage tank (11), configured to be connected with a first end of the battery stack; a second acid liquid pipe (13) connected with a second end of the acid liquid storage tank (11), configured to be connected with a second end of the battery stack; and a power device (14) arranged in the first acid liquid pipe (12) or the second acid liquid pipe (13) and configured to drive the acid solution in the acid liquid storage tank (11) to flow circularly in the first acid liquid pipe (12) and the second acid liquid pipe (13). Through the disclosure, the liquid flow battery system can be cleaned conveniently and in time, so as to realize the self-repairing of the liquid flow battery, improve the operational efficiency of the liquid flow battery and prolong the service life of the liquid flow battery system.
First Claim
Other Claims data not available
