High breakdown voltage III-N depletion mode MOS capacitors
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 23, 2015
Grant Date -
Apr 3, 2014
app pub date -
Sep 28, 2012
filing date -
Sep 28, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

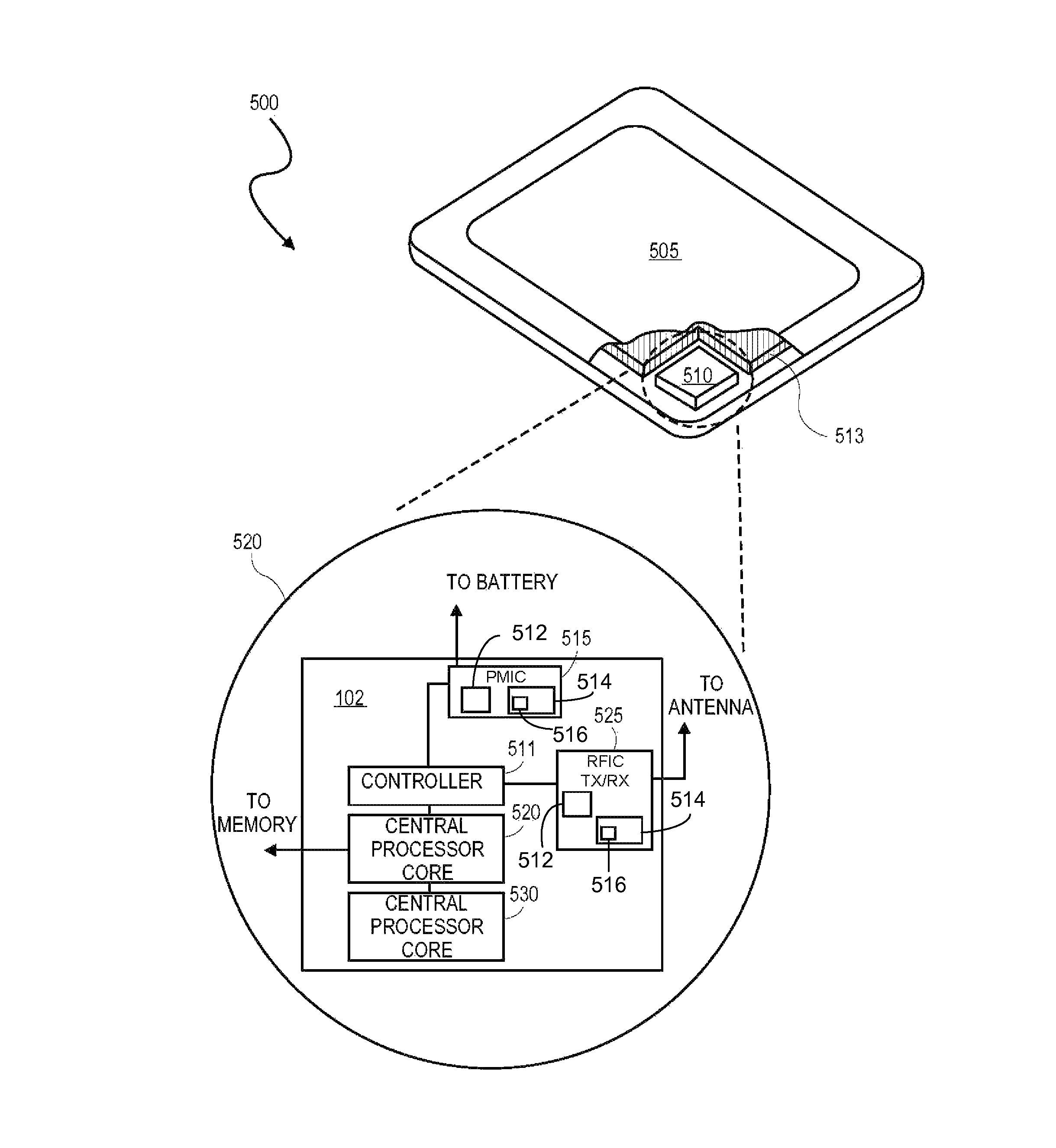

III-N high voltage MOS capacitors and System on Chip (SoC) solutions integrating at least one III-N MOS capacitor capable of high breakdown voltages (BV) to implement high voltage and/or high power circuits. Breakdown voltages over 4V may be achieved avoiding any need to series couple capacitors in an RFIC and/or PMIC. In embodiments, depletion mode III-N capacitors including a GaN layer in which a two dimensional electron gas (2DEG) is formed at threshold voltages below 0V are monolithically integrated with group IV transistor architectures, such as planar and non-planar silicon CMOS transistor technologies. In embodiments, silicon substrates are etched to provide a (111) epitaxial growth surface over which a GaN layer and III-N barrier layer are formed. In embodiments, a high-K dielectric layer is deposited, and capacitor terminal contacts are made to the 2DEG and over the dielectric layer.
