Energy efficient thermally dynamic building design and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 17, 2018
Grant Date -
Apr 3, 2014
app pub date -
Sep 24, 2013
filing date -
Sep 28, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

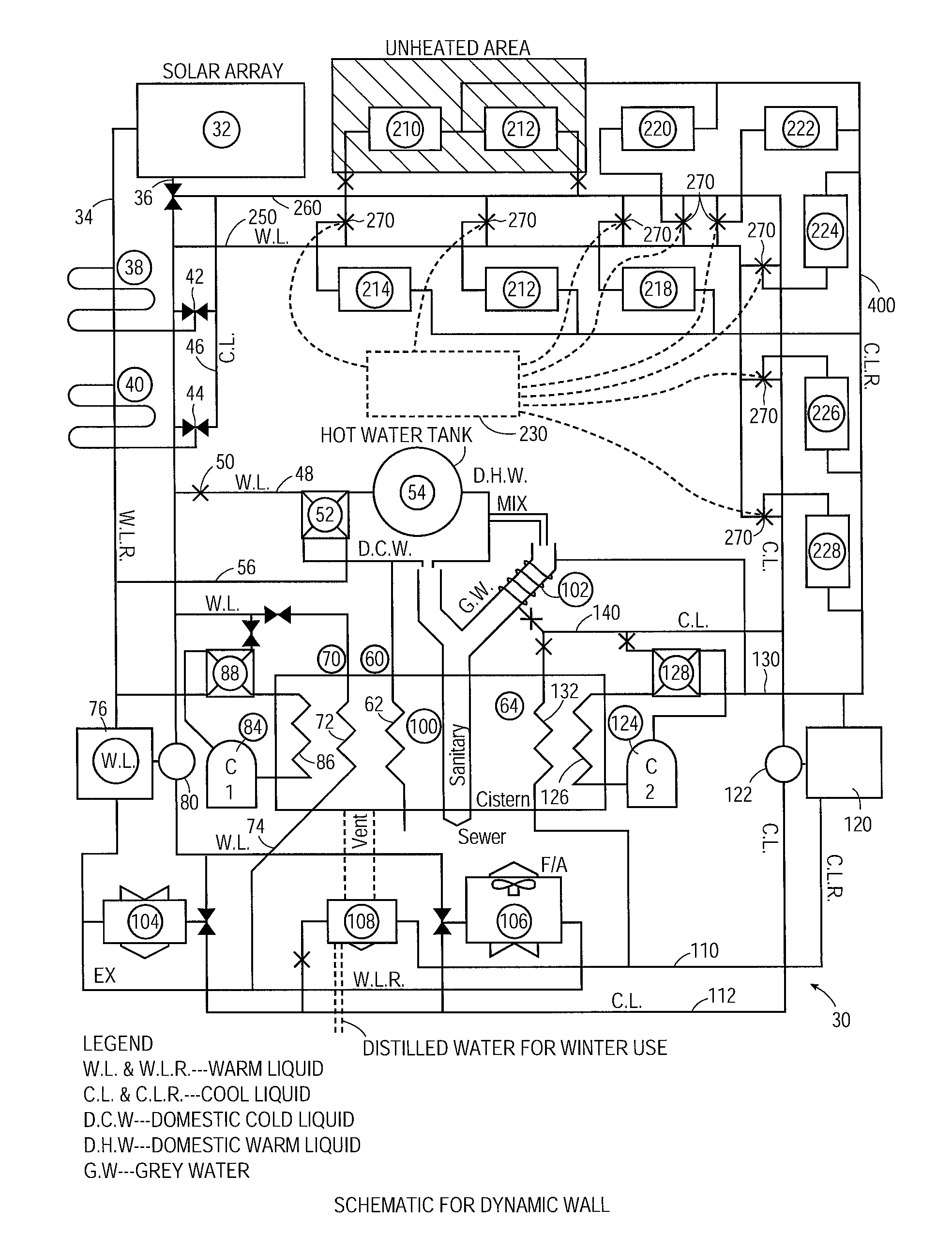

A heating and cooling system for a building having a passive source of heat energy, a heat sink reservoir to store heat energy in, and a first heat exchange system operating a temperature of 15 degrees Celsius or less and being operatively connected to said reservoir. There is a second heat exchange system operating at a temperature of above 15 degrees Celsius which is also operatively connected to the heat sink reservoir and a thermal mass wall which is connected to the heat exchanger systems. In one aspect, the invention provides a dynamic wall having a first insulating layer on an interior surface of the wall, a thermal mass adjacent to the first insulating layer, a second insulating layer on an outside surface of the thermal mass and a heat exchanger operatively connected to said thermal mass to add or subtract heat from said thermal mass wall.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- F24J:PRODUCTION OR USE OF HEAT NOT OTHERWISE PROVIDED F....
- F28D:HEAT-EXCHANGE APPARATUS, NOT PROVIDED FOR IN ANOTH....
- E04B:GENERAL BUILDING CONSTRUCTIONS; WALLS, e.g. PARTIT....
- E04C:STRUCTURAL ELEMENTS; BUILDING MATERIALS
- F24D:DOMESTIC- OR SPACE-HEATING SYSTEMS, e.g. CENTRAL H....
- F24F:AIR-CONDITIONING; AIR-HUMIDIFICATION; VENTILATION;....
- 2013 Application Filing Year
- F24J Class
- 366 Applications Filed
- 309 Patents Issued To-Date
- 84.43 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F24J Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 17, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 17, 2030 |
