BATTERY ASSEMBLY FOR AN ELECTRONIC DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Nov 14, 2013
filing date -
Aug 21, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

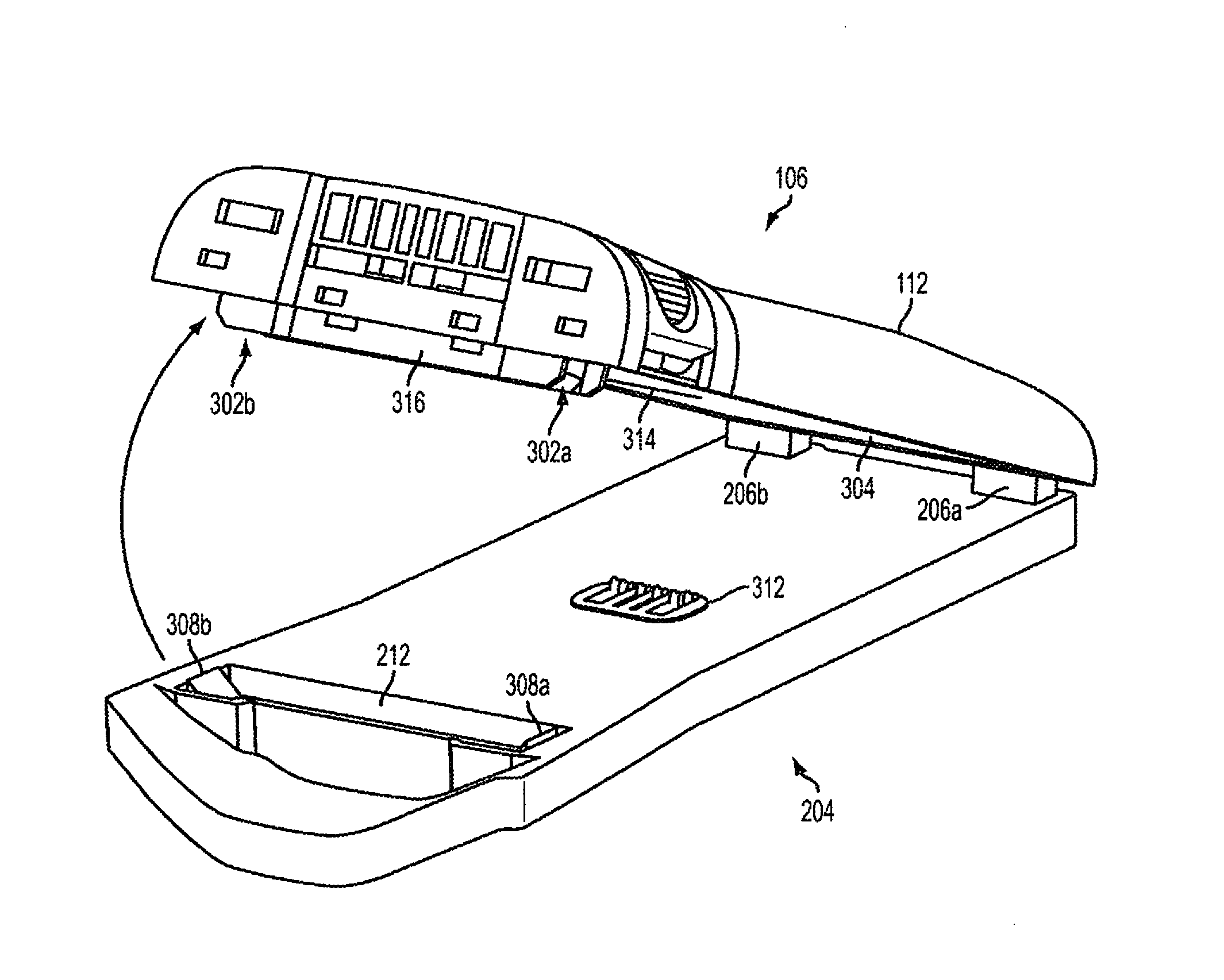

Systems and methods (1200, 1300) for attaching/detaching a battery assembly (106) from an electronic device. The battery assembly comprises top and bottom covers (112, 304) coupled together. First latches (206a, 206b) protrude out and away from a first end edge portion of the top cover. The first latches rotate into latching engagement with first latch surfaces (402) of the electronic device (100). Second latches (302a, 302b) protrude out and away from a second end edge portion of the bottom cover which is opposed from the first end edge portion of the top cover. The second latches snap into latching engagement with second latch surfaces (308a, 308b) of the electronic device. Dual-action buttons (110a, 110b) facilitate the latching engagement/disengagement of the second latches to/from the electronic device. The first and second latches facilitate a deflection of the battery assembly towards the electronic device when the battery assembly is attached thereto.
