APPARATUS FOR MONITORING INTRA-ABDOMINAL PRESSURE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Nov 26, 2013
filing date -
Mar 4, 2003
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

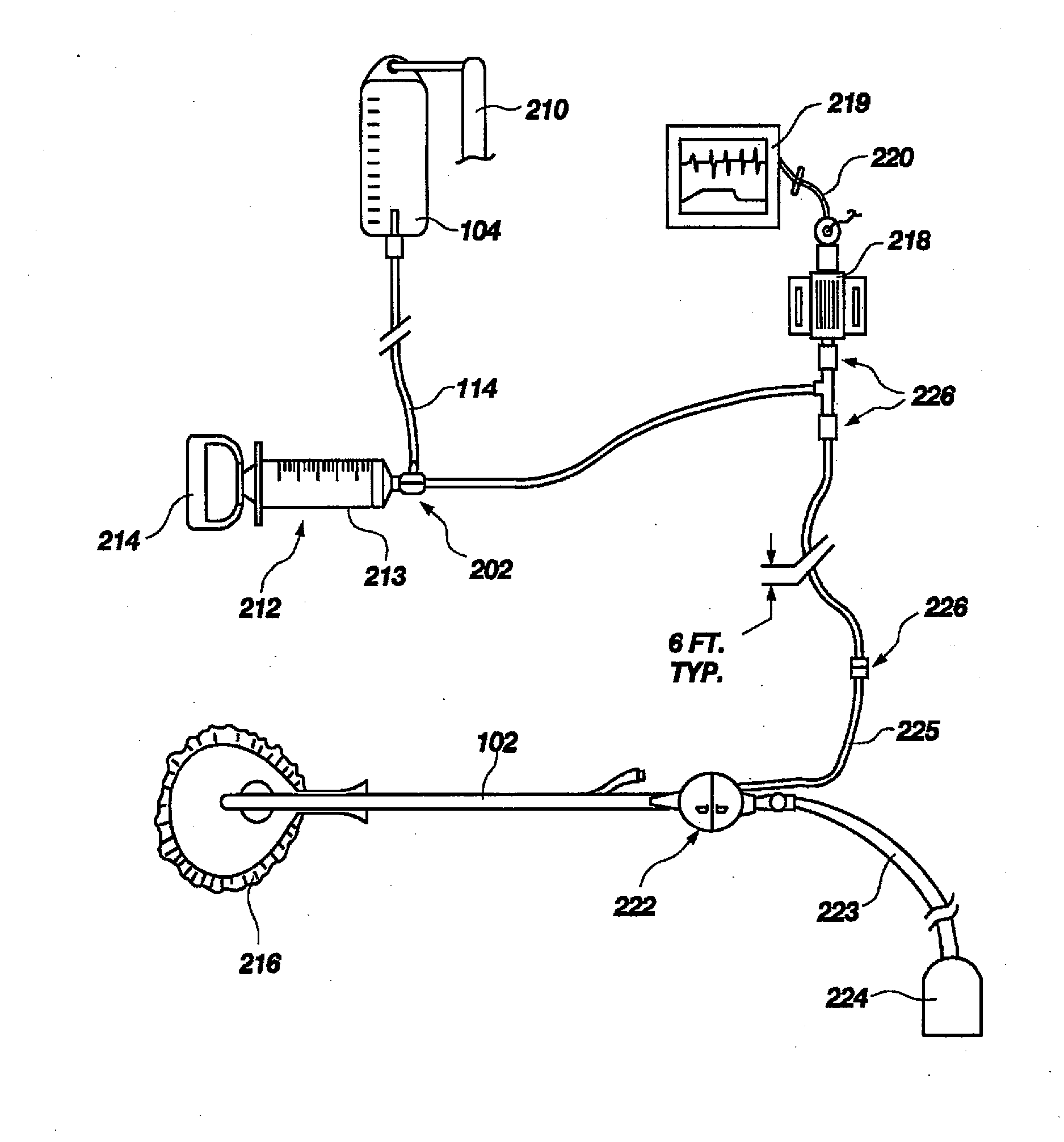

An improved apparatus for monitoring the intra-abdominal pressure of a hospitalized patient includes a urinary catheter connected to a urine valve having selectable communication positions between a discharge end of the urinary catheter and either a drain or a fluid source. Preferably, the urine valve has a housing adapted to resist patient discomfort from leg-valve contact. One operable protective housing may be embodied as a separate tray component. Plumbing structure desirably maintains fluid supply and drain conduits in a substantially parallel arrangement to assist routing those conduits between a patient's legs. When the urine valve is oriented for communication to the fluid source, an infusion pump may be used to introduce a known quantity of fluid through the urine valve and into the patient's bladder where the fluid's pressure can be measured. Desirably, a double check valve is included in a fluid supply path and arranged to permit repetitive operation of a syringe to inject a bolus of fluid into the patient's bladder. Subsequent to making a pressure measurement, the urine valve is returned to the bladder draining position.
First Claim
Other Claims data not available
