CONNECTION OF A SHAFT PIECE OF A STEERING SHAFT FOR A MOTOR VEHICLE BY MEANS OF A CONNECTION PART
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 27, 2014
app pub date -
Apr 26, 2012
filing date -
May 31, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

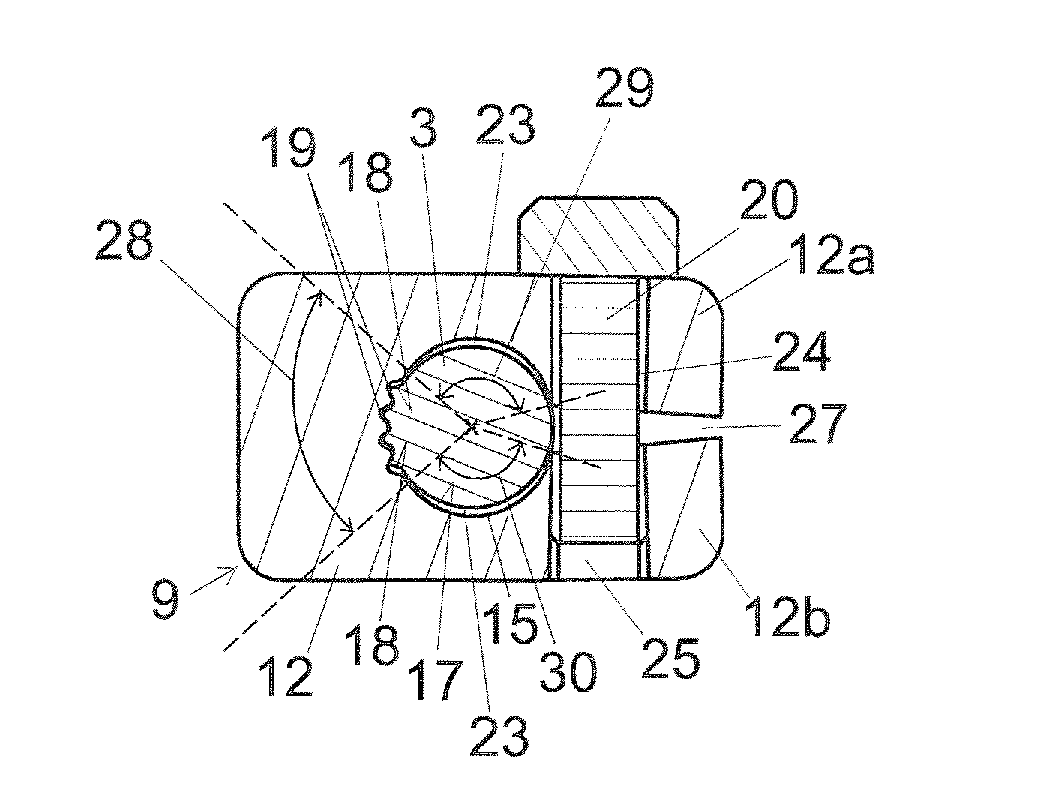

The connection of a shaft piece of a steering shaft for a motor vehicle by a connection part includes an accommodating opening, which is bounded by a wall and in which a connecting section of the shaft piece is fastened. A gap interrupts the wall bounding the accommodating opening and is arranged between first and second clamping sections of the connection part, which clamping sections each form a respective section of the wall bounding the accommodating opening that is adjacent to the gap. The first and second clamping sections can be drawn together by a clamping part such as to narrow the gap, and can be pressed against the connecting section to lock the connecting section to the connection part in order to close the connection.
First Claim
Other Claims data not available
