Plastic component of a roof opening system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 27, 2014
app pub date -
Mar 15, 2012
filing date -
Mar 24, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

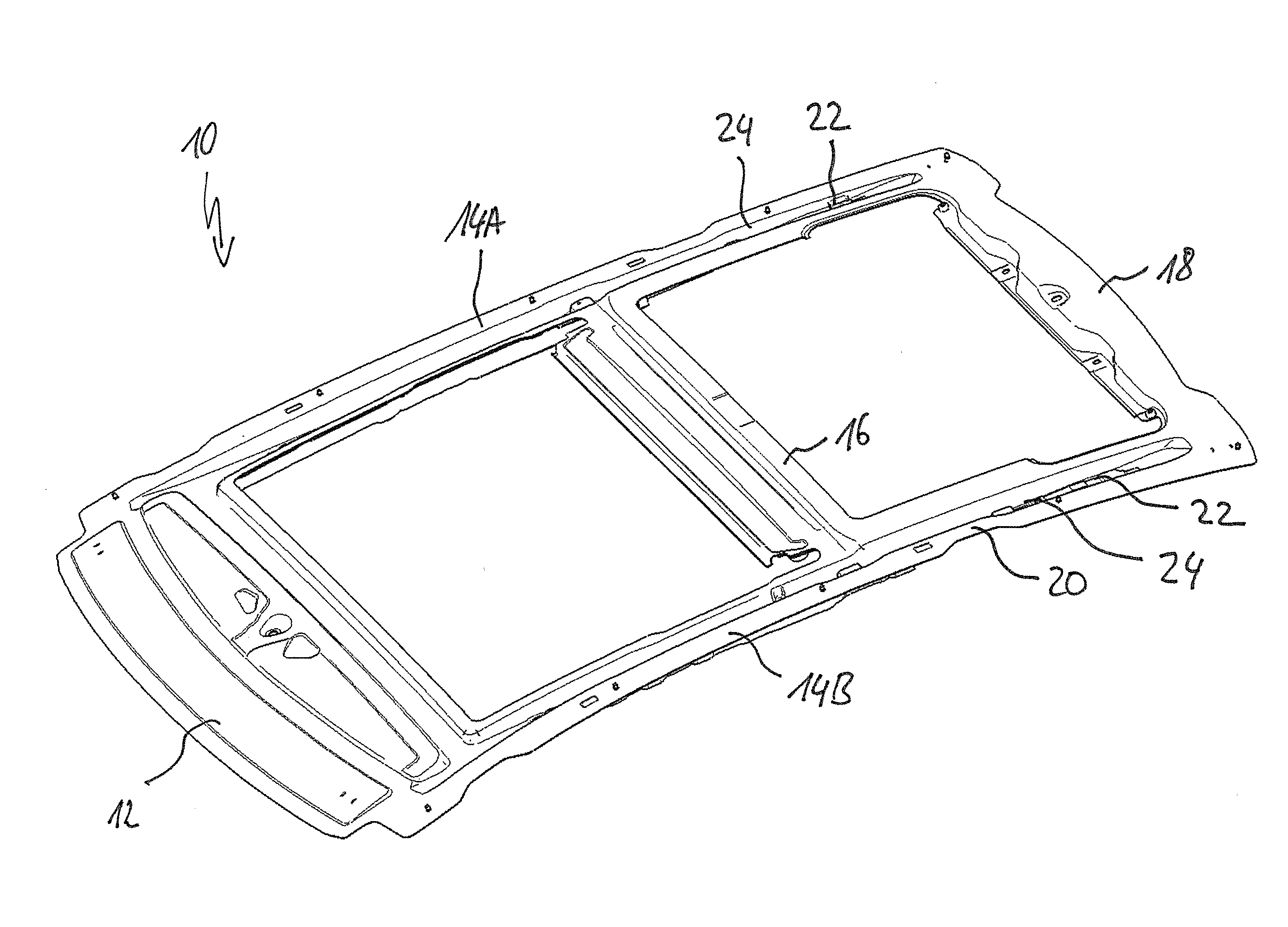

A method for manufacturing a sliding-roof frame of a roof-opening system of a motor vehicle in a tool having at least one mold cavity. One embodiment comprises the steps of: inserting at least one semifinished part configured in the shape of a panel into the tool; deep-drawing the semifinished part in the tool for configuring at least one deep-drawn section of the sliding-roof frame, wherein the semifinished part is formed from a glass-fiber reinforced thermoplastic and the step of deep drawing is a thermoforming process; then, introducing a plastic material into the mold cavity of the tool for forming at least one formed section, which is injection-molded or foamed, and for bonding said formed section to the deep-drawn section; and demolding the sliding-roof frame from the tool.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| DE | A1 | DE102011014989 | Mar 24, 2011 |
| WO | A2 | WO2012126790 | Mar 15, 2012 |
| CN | A | CN103562054 | Mar 15, 2012 |
| EP | B1 | EP2688789 | Mar 15, 2012 |
International Classification(s)
- 2012 Application Filing Year
- B62D Class
- 1518 Applications Filed
- 1237 Patents Issued To-Date
- 81.49 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- B62D Class
- 6.62 % this patent is cited more than
- 11 Age
