Drive unit for at least one traction means
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 11, 2017
Grant Date -
Mar 20, 2014
app pub date -
Mar 7, 2012
filing date -
Mar 7, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

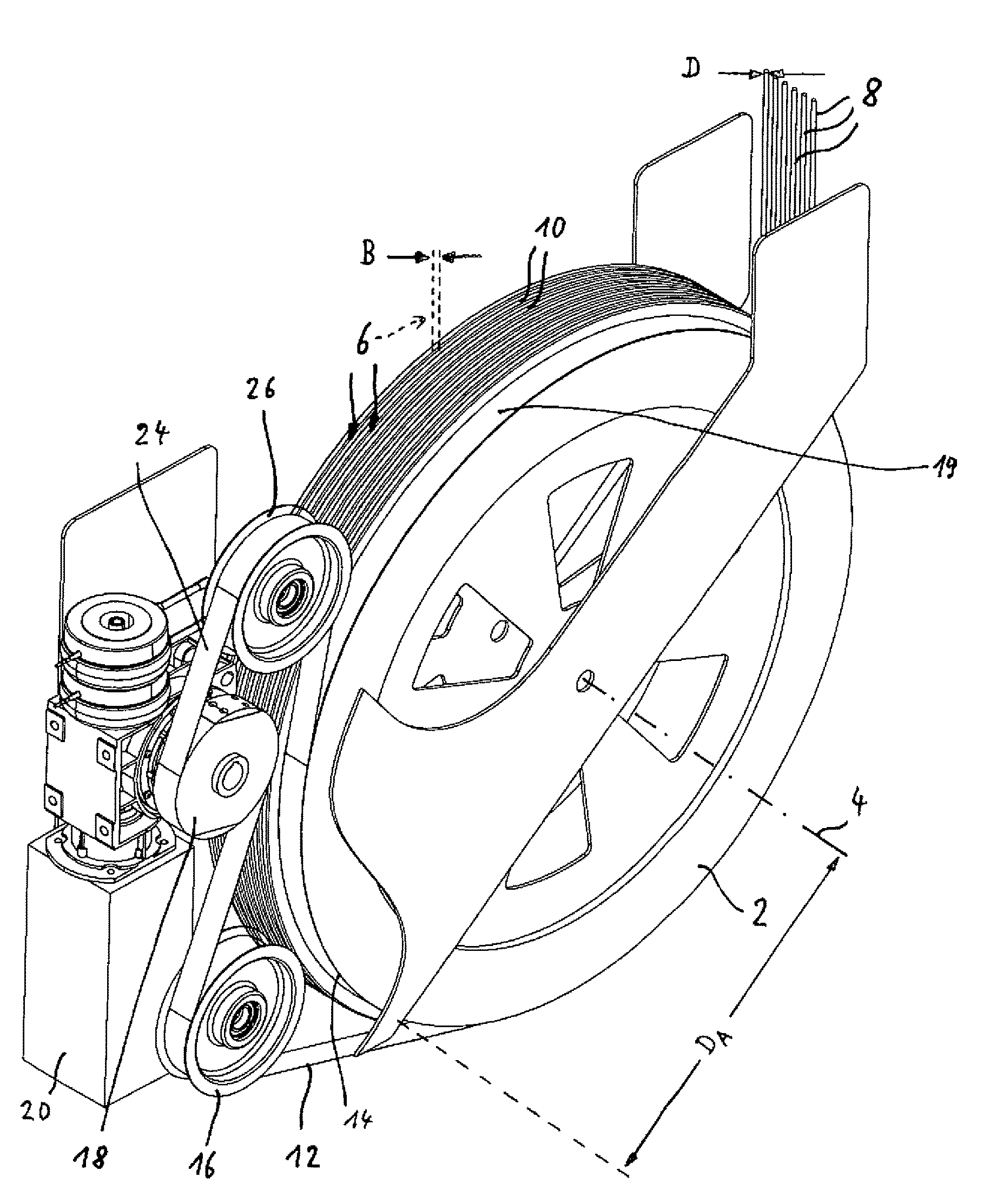

A drive unit for at least one traction means, especially in stage machinery, with a winding drum comprising at least one take-up region, on (each of) which a traction means is received which can be wound up or unwound, characterized in that axially adjacent to the take-up region there is a cylindrical drive region disposed on the winding drum, on which is received a belt-shaped drive means that can be wound up or unwound and which can be wound up onto a drivable drive drum, generating a drive torque acting on the winding drum, or can be unwound from the drive drum, releasing the winding drum.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2012 Application Filing Year
- A63J Class
- 24 Applications Filed
- 20 Patents Issued To-Date
- 83.34 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- A63J Class
- 31.25 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 11, 2028 |
