FLUID TRANSPORT SYSTEM WITH GASKET
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Sep 19, 2013
filing date -
Sep 19, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

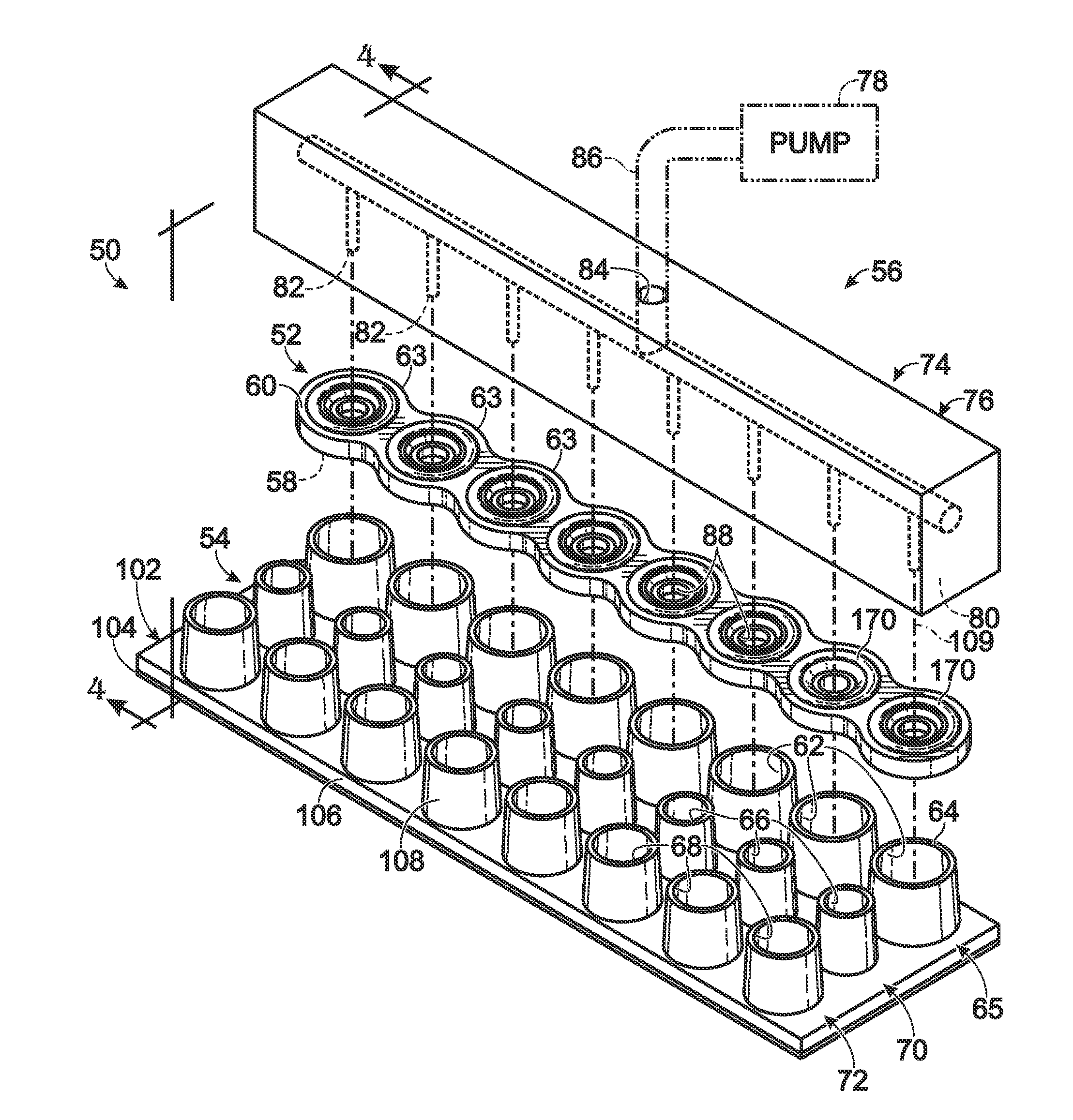

Fluid transport system, including methods and apparatus, for moving fluid. The system may include a plurality of wells each having a rim. The system also may include a gasket defining a plurality of apertures that extend through the gasket from a top side to a bottom side of the gasket. The bottom side may define a plurality of grooves, with each groove extending at least partway around an axis defined by an aperture of the plurality of apertures. The gasket may be configured to have the top side of the gasket engaged with a pump assembly and at least a portion of the rim of each of the wells disposed in at least one groove of the plurality of grooves, to provide sealed communication between the pump assembly and each of the wells.
