Apparatus for Grooving Cardboard Cuttings
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 13, 2014
app pub date -
Aug 30, 2013
filing date -
Sep 12, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

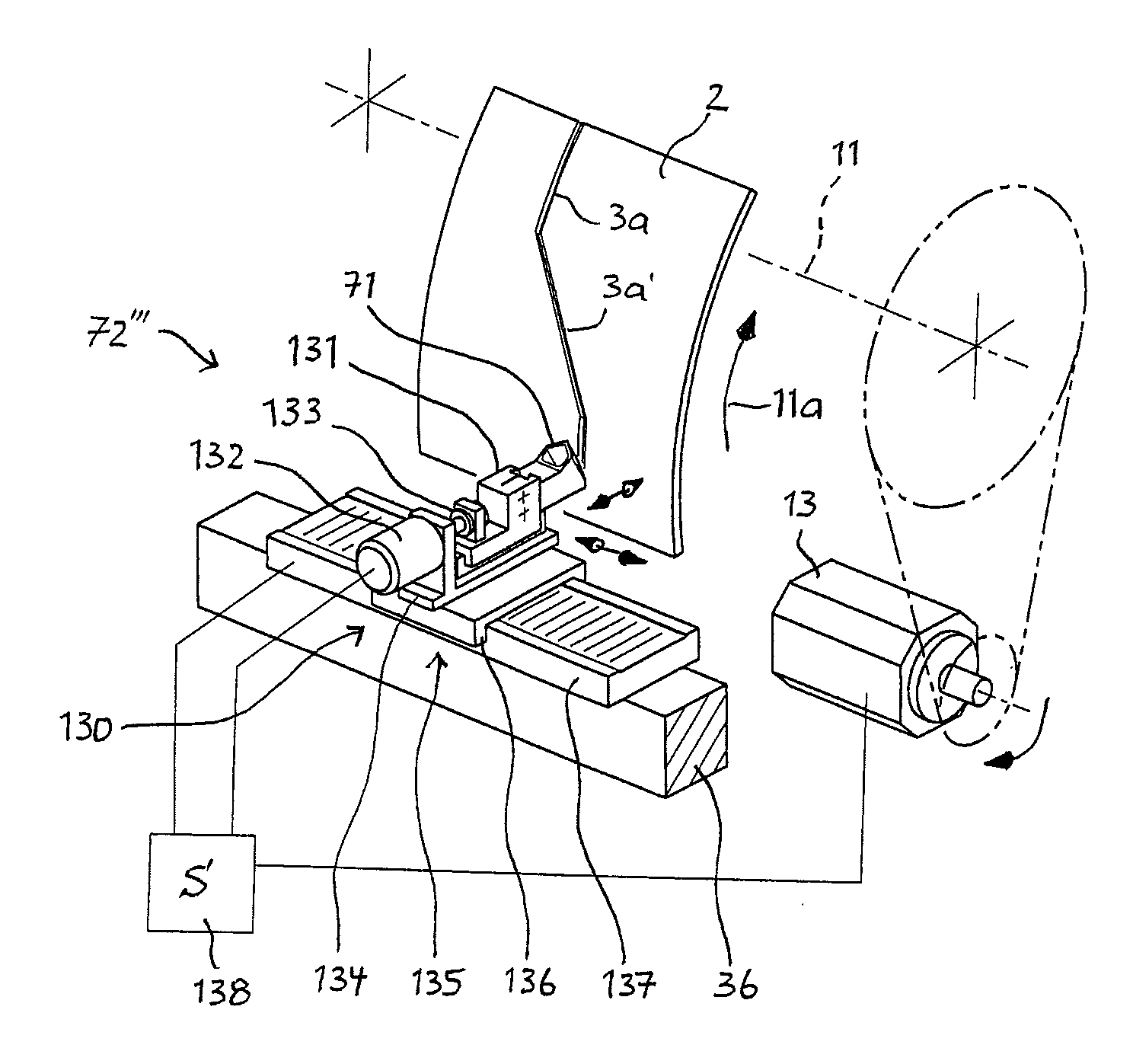

An apparatus (1) for grooving cardboard cuttings (2, 141) while the cuttings are transported past at least one groove cutting tool (72′, 72″, 72′″). The tool or tools are situated on a guide element (78, 80, 130) that can be moved relative to the transport device during the operation of the grooving apparatus. During a grooving operation, the position of the groove cutting tool along the surface of the cutting and/or its distance from the transport device, can be varied such that completely new designs of mechanically grooved cardboard cuttings can be realized. According to the grooving method at least one groove cutting tool is moved transverse to the transport direction of the cardboard cuttings while the cardboard cuttings are transported past the groove cutting tools.
First Claim
Other Claims data not available
