Rotary Seal Arrangement
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 6, 2014
app pub date -
Nov 28, 2011
filing date -
Dec 23, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

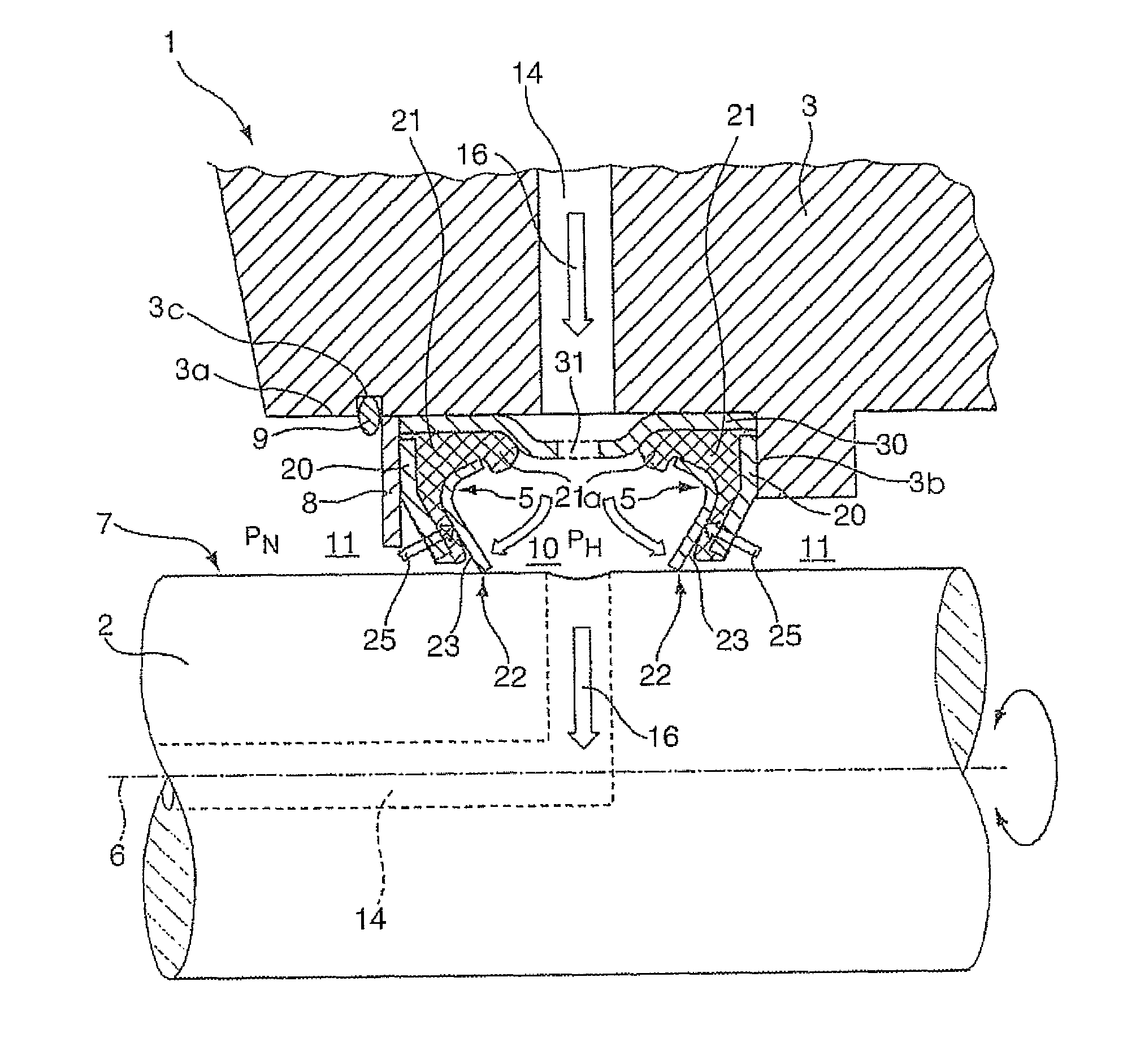

A rotary seal arrangement has a rotatable component (2) supported within a machine component (3), the machine component (3) forming a housing structure for a sealing means (23) which acts to seal off a high-pressure area (10) between the components (2,3) to allow the passage of high pressure fluid therebetween. The seal arrangement includes a holding element (30) for mounting in the machine component (3) to support spaced sealing members (23) therein to define said high pressure area (10) therebetween. The arrangement is particularly suitable for use where the rotatable component (2) is formed as a rotatable shaft and the holding element (30) and sealing members (23) are arranged around the shaft such as, for example, in a vehicle tyre pressure changing system for use on an agricultural tractor. The spaced sealing members (23) are provided with support elements (20) which extend generally radially relative to the rotatable component (2) to provide support for the sealing members (23) against the high pressure fluid, the holding element (30) and support elements (20) forming a cartridge like arrangement which encloses the sealing members (23).
First Claim
Other Claims data not available
