SELF-ALIGNING HYBRIDIZATION METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 6, 2014
app pub date -
Nov 4, 2013
filing date -
Feb 17, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

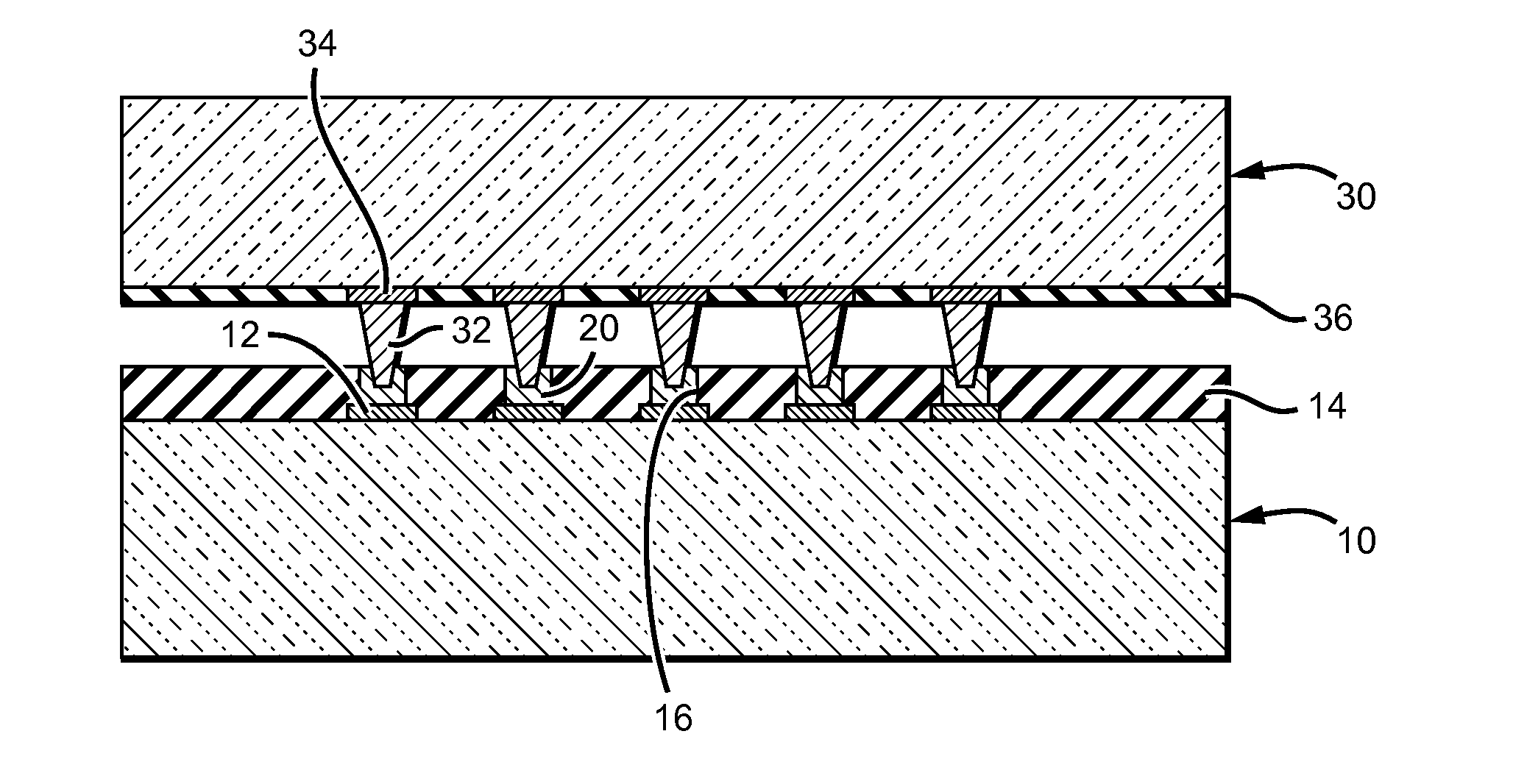

A self-aligning hybridization method enabling small pixel pitch hybridizations with self-alignment and run-out protection. The method requires providing a first IC, the surface of which includes at least one electrical contact for connection to a mating IC, depositing an insulating layer on the IC's surface, patterning and etching the insulating layer to provide recesses in the insulating layer above each of the electrical contacts, and depositing a deformable conductive material in each of the recesses. A mating IC is provided which includes conductive pins, preferably comprising nickel, positioned to align with the deformable conductive material in respective ones of the recesses on the first chip. The first and mating ICs are then hybridized by bringing the conductive pins into contact with the deformable conductive material in the recesses, such that the conductive material deforms and the pins make electrical contact with the first IC's electrical contacts.
First Claim
Other Claims data not available
