APPARATUS FOR INSPECTING A MEASUREMENT OBJECT WITH TRIANGULATION SENSOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 13, 2014
app pub date -
Aug 7, 2013
filing date -
Aug 7, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

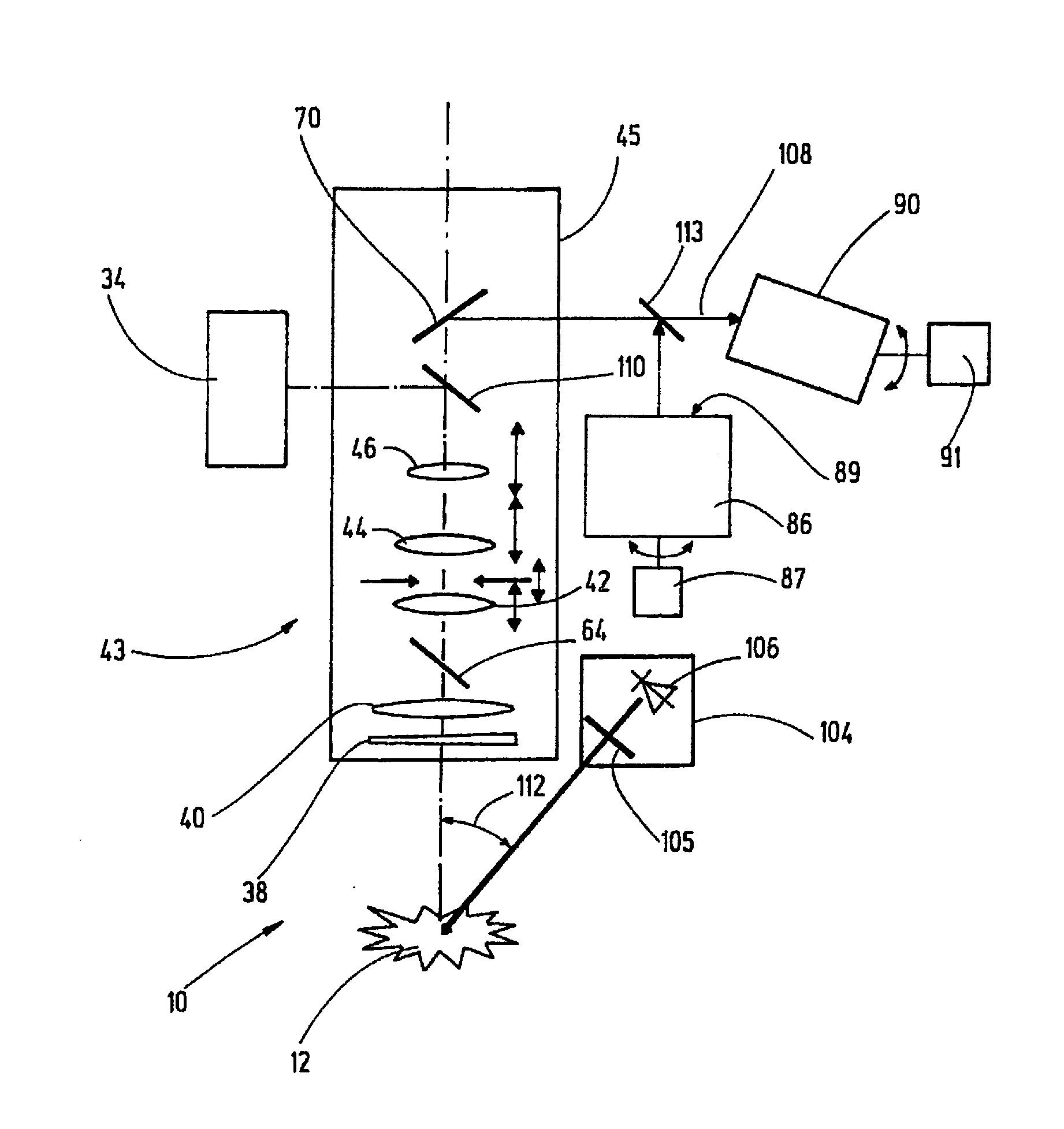

An apparatus for inspecting a measurement object, comprising a workpiece support for receiving the measurement object and a measuring head carrying an optical sensor. The measuring head and workpiece support are movable relative to one another. The optical sensor has an objective and a camera for capturing an image of the measurement object. The objective has a light entrance opening and a light exit opening, a diaphragm, and a multitude of lens-element groups arranged in the objective between the light entrance opening and the light exit opening one behind another along a longitudinal axis of the objective. At least two lens-element groups are displaceable parallel to the longitudinal axis. An illumination device illuminates the measurement object at a triangulation angle relative to the longitudinal axis, and a sensor device detects radiation from the illumination device that is incident on the sensor device through the objective.
