FREELY MOUNTED WHEEL SET MADE OF MICRO-MACHINABLE MATERIAL AND METHOD OF FABRICATING THE SAME
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Oct 17, 2013
filing date -
Oct 7, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

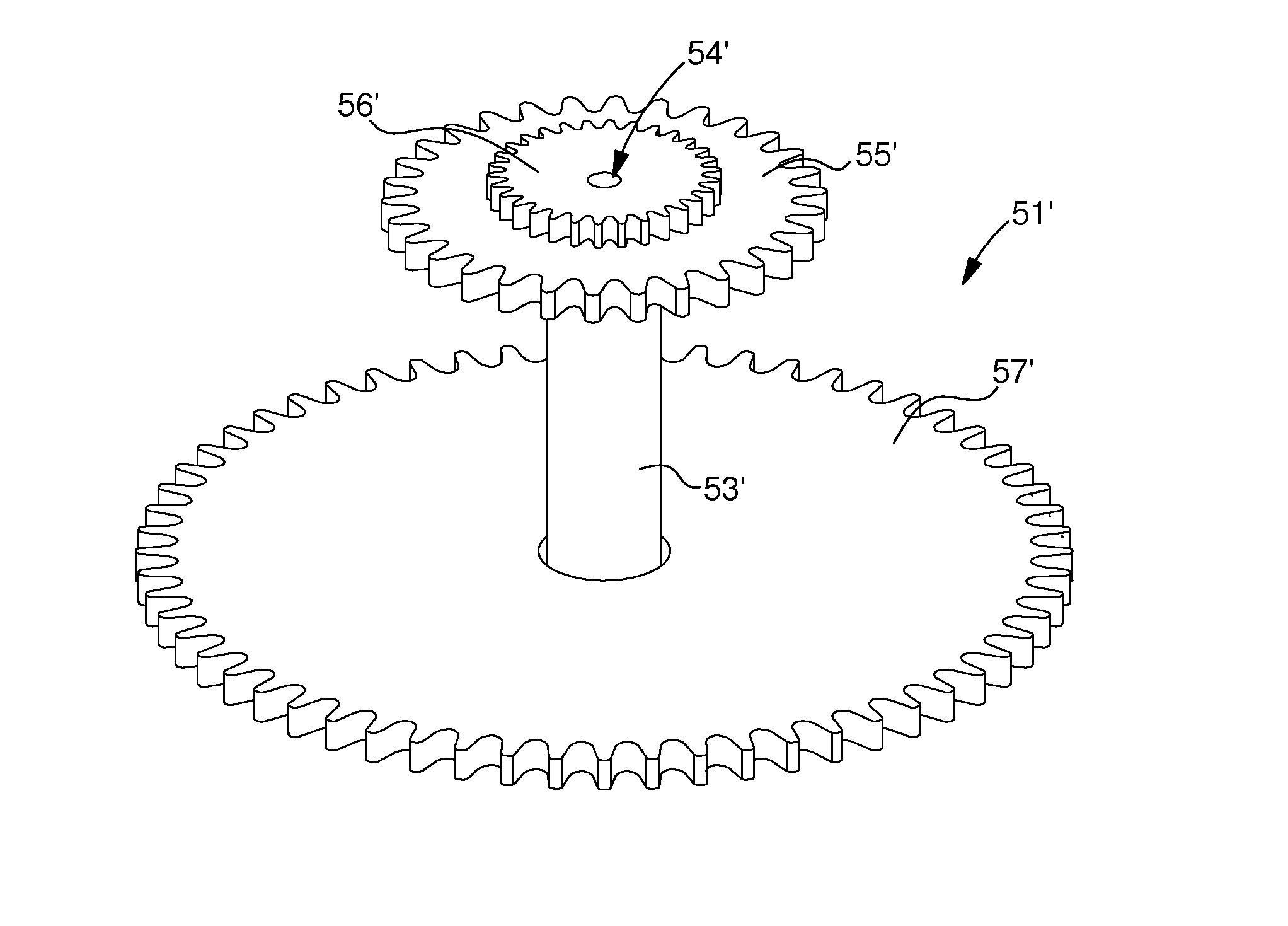

The invention relates to a gear train (51, 51′) including an arbour (53, 53′) a first end of which is fitted with an integral collar (52, 52′), a first wheel set (55, 55′) made of micro-machinable material being fitted onto the second end of the arbour (53, 53′). According to the invention, the gear train (51, 51′) includes a second wheel set (57, 57′) made of micro-machinable material, which is independent of the movements of said first wheel set and which includes an aperture (58, 58′) whose wall is mounted opposite said arbour so that the second wheel set (57, 57′) is freely mounted on said first end of the arbour (53, 53′).
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| EP | A1 | EP2309342 | Oct 07, 2009 |
| TW | B | TWI558654 | Sep 28, 2010 |
| EP | B1 | EP2309341 | Sep 29, 2010 |
| KR | A | KR20110037861 | Sep 29, 2010 |
| CN | B | CN102063047 | Sep 30, 2010 |
| JP | B2 | JP5390496 | Oct 06, 2010 |
| US | B2 | US8623228 | Oct 06, 2010 |
| RU | C2 | RU2550308 | Oct 06, 2010 |
International Classification(s)
- 2013 Application Filing Year
- F16H Class
- 2061 Applications Filed
- 1862 Patents Issued To-Date
- 90.35 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16H Class
- 0 % this patent is cited more than
- 11 Age
