Master for a hydraulic actuating element
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Oct 21, 2013
filing date -
Apr 19, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance

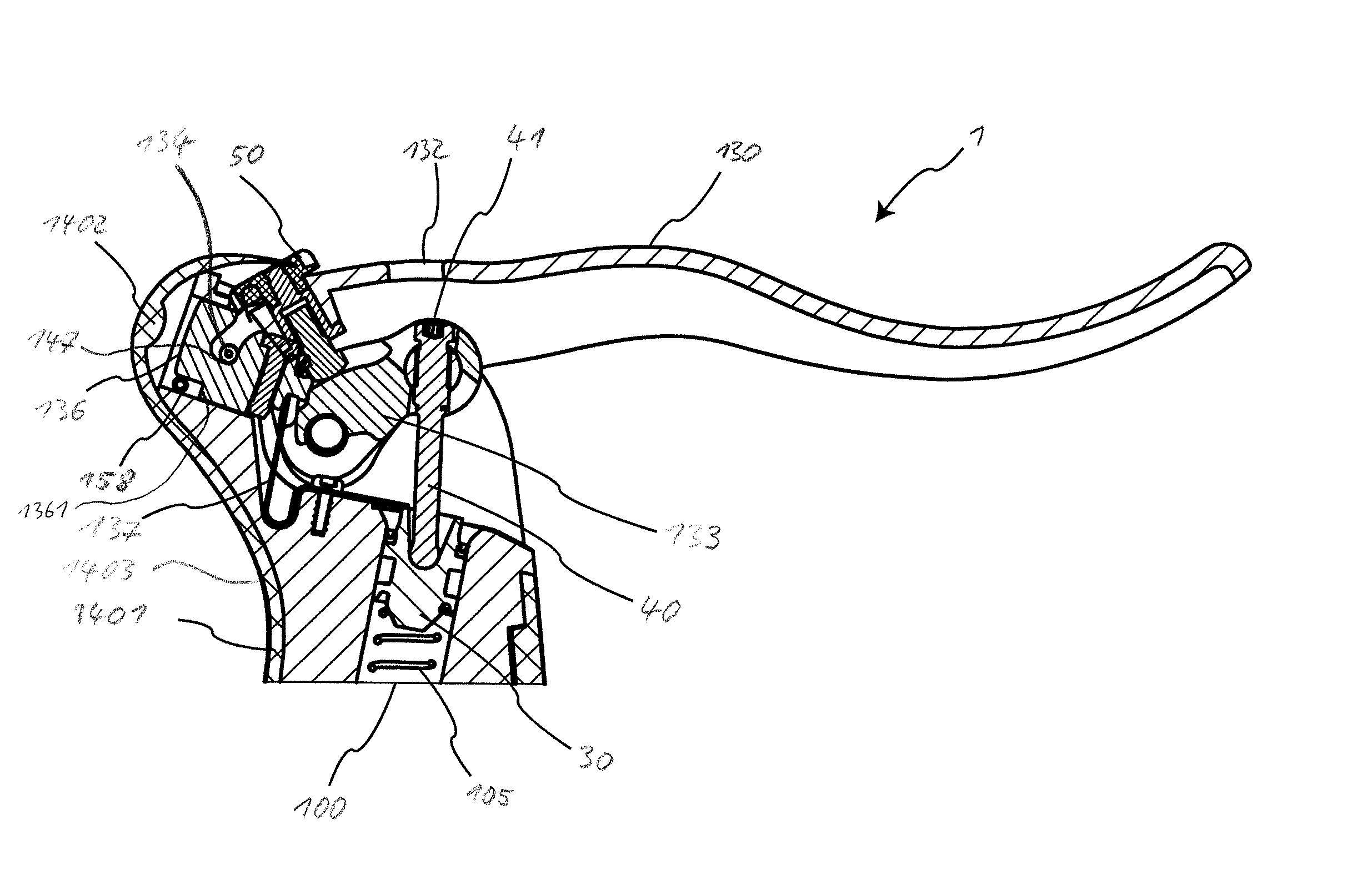

Abstract
A master for a hydraulic actuating element, with a cylinder, in which a piston is displaceably mounted, and a hand lever, with which the position of the piston in the cylinder can be influenced, and a fastening element which comprises a clamping part shaped complementarily to the inner cross section of the handlebar, which is equipped for being fastened in the handlebar by means of an internal clamping. Furthermore, the invention relates to a master, in which the hand lever and the piston are connected by a push rod, which comprises a first longitudinal portion, which is provided with an external thread, which engages in an internal thread on the hand lever, so that the distance between piston and hand lever can be adjusted by turning the push rod, and wherein the push rod comprises a second longitudinal portion, which is provided with a polygonal outer cross section, which bears against at least one second spring element. Finally, the invention relates to a master, in which the piston made of a plastic material seals off the cylinder to the outside with a wiping lip, which is unitarily joined to the piston.
First Claim
Other Claims data not available
