MANUFACTURING METHOD OF MACHINE TOOL AND MACHINE TOOL
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 6, 2014
app pub date -
Jul 30, 2013
filing date -
Jul 31, 2012
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

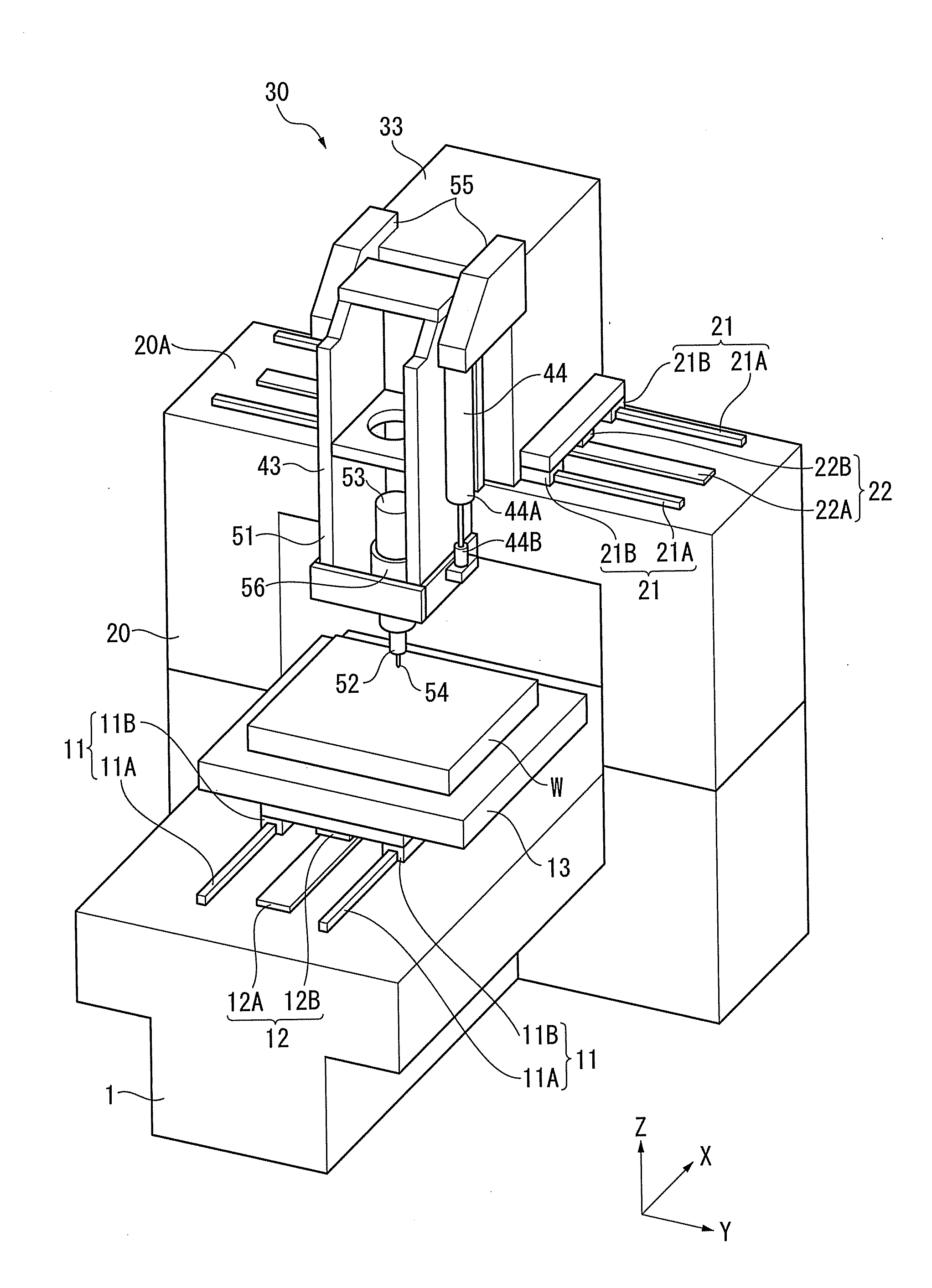

In a manufacturing method of a machine tool including: a table having a workpiece mount face on which a workpiece is placed; a spindle head; and a relative movement mechanism for moving the spindle head relative to the table, the spindle head including: a spindle head body; a spindle rotatably supported by the spindle head body via a bearing mechanism and having a tool at an end thereof; and a rotary drive source for rotating the spindle, a plurality of types of structural members of different shapes being made of a carbon fiber reinforced plastic are prepared in advance and the structural members of the different shapes are combined to provide the spindle head body.
First Claim
Other Claims data not available
