Electric Generator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 6, 2014
app pub date -
Nov 30, 2011
filing date -
Nov 30, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

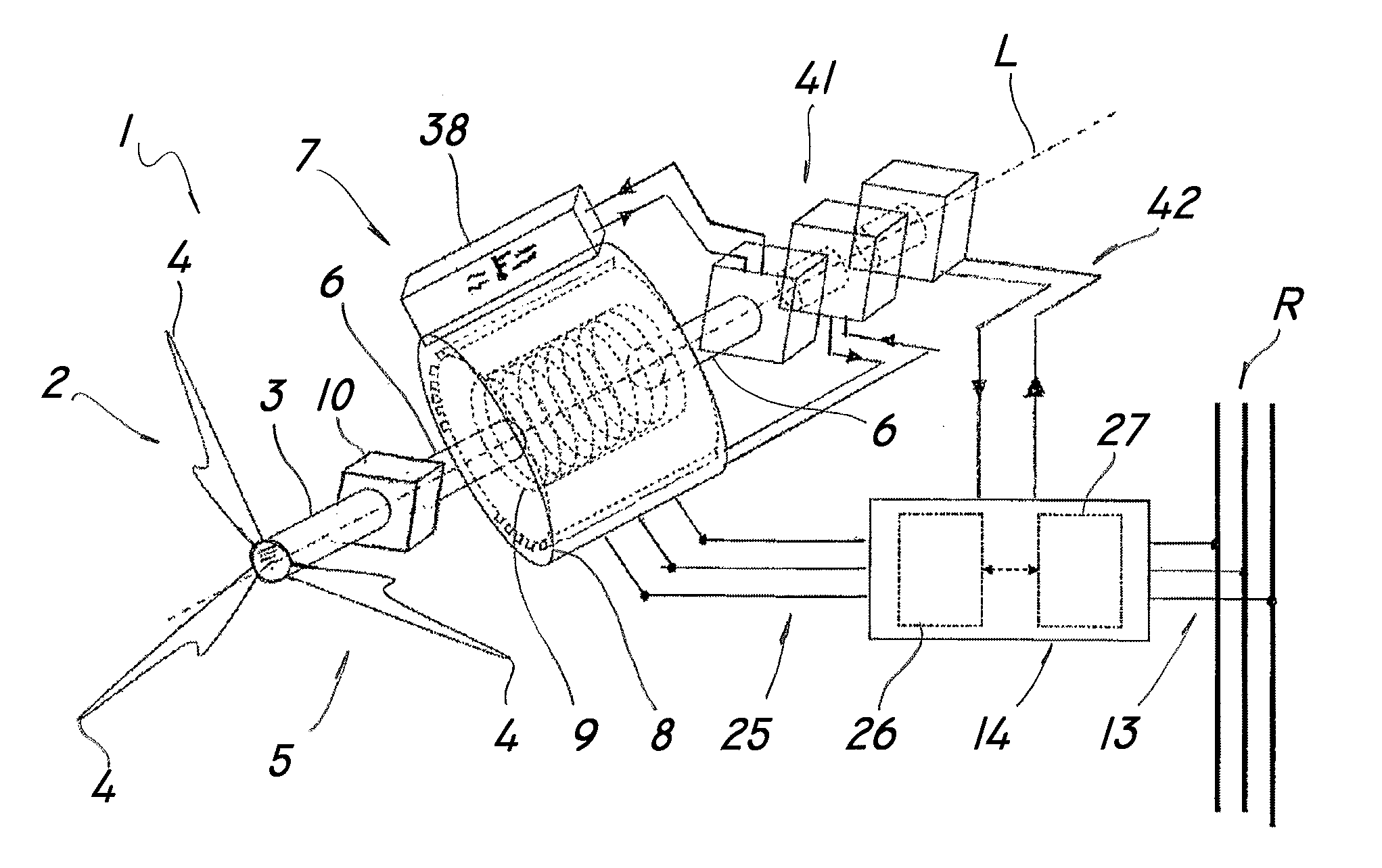

An electric energy generator includes a driving shaft designed to be coupled to an external energy source having a predetermined torque, a synchronous reluctance rotating electric machine having a stator and a transverse-laminated rotor, and a driven shaft operatively coupled to the drive shaft for generating electric energy with a predetermined torque ripple amplitude, an electric connection for injecting the electric energy so generated into the net, a control system designed to adjusting electrical and dynamic parameters of the electric machine. The stator has an even number of longitudinal grooves for each pair of poles and the rotor has a plurality of adjacent slots defining an even number of magnetically equivalent slots. The number of grooves is different from the number of equivalent slots multiplied by an integer, the difference between the number of grooves and the number of equivalent slots being different form zero, +2 and −2.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H02K Class
- 3.86 % this patent is cited more than
- 11 Age
