ANTISEISMIC SUPPORT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 30, 2014
app pub date -
Feb 20, 2012
filing date -
Feb 21, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

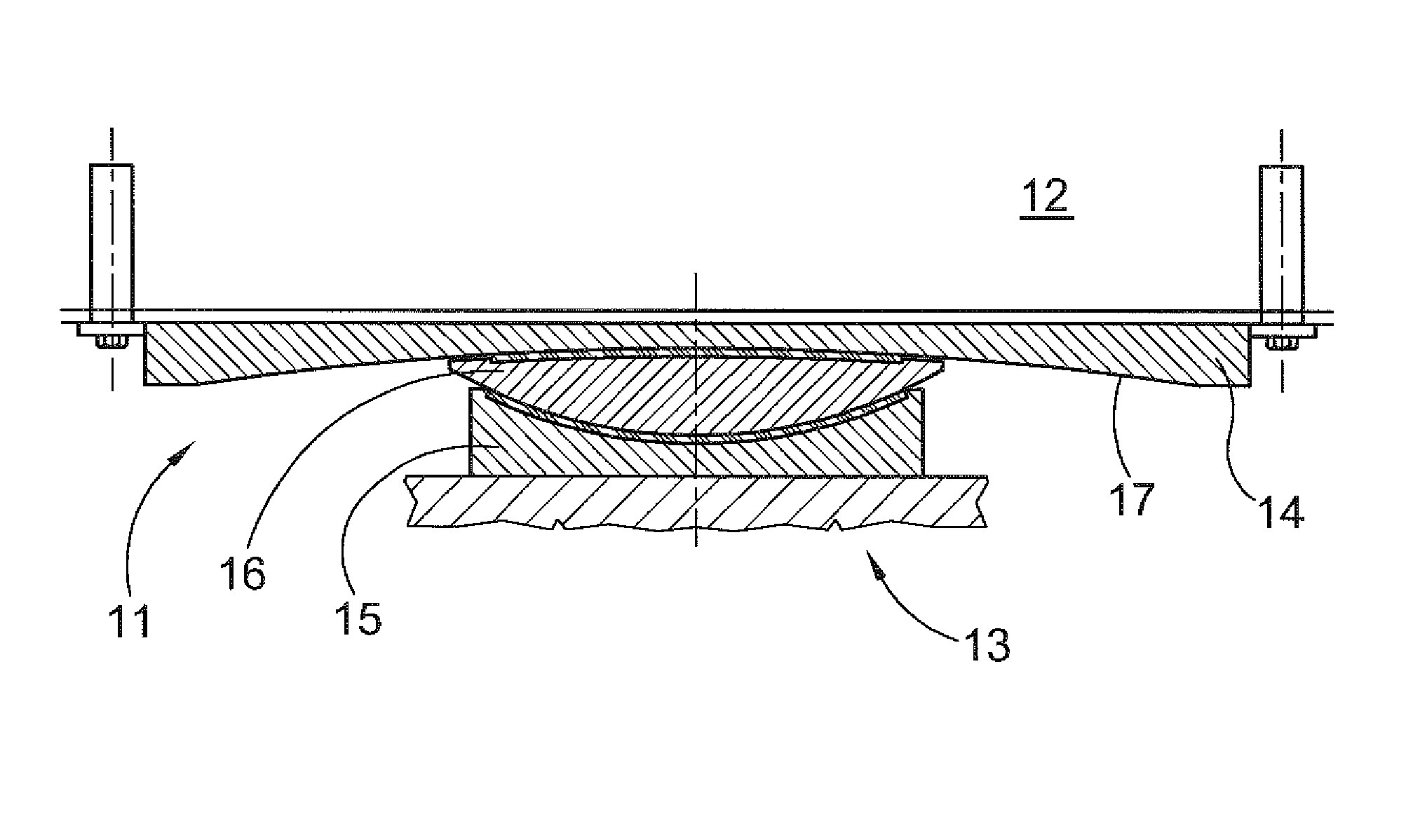

The present invention concerns an anti-seismic support for supporting a construction engineering structure, which comprises a support (14) having a concave sliding surface (17) and a sliding block (16) with a convex sliding surface (16d) in sliding contact with the concave sliding surface (17), the sliding block (16) being capable of sliding with pendulum motion relative to the concave surface (17) in response to an earthquake tremor or shock, the device (11) comprising a sliding material (19) between the concave sliding surface (17) and the convex sliding surface (16b), where the friction coefficient between the sliding surfaces (16b, 17) is above 10% when the device (11) is loaded with a pressure above 30 MPa and the sliding surfaces are caused to slide at a sliding speed of more than 50 mm/s at a temperature of 20° C. or more.
First Claim
Other Claims data not available
