STRUCTURE MONITORING
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 23, 2014
app pub date -
Jul 17, 2013
filing date -
Jul 17, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

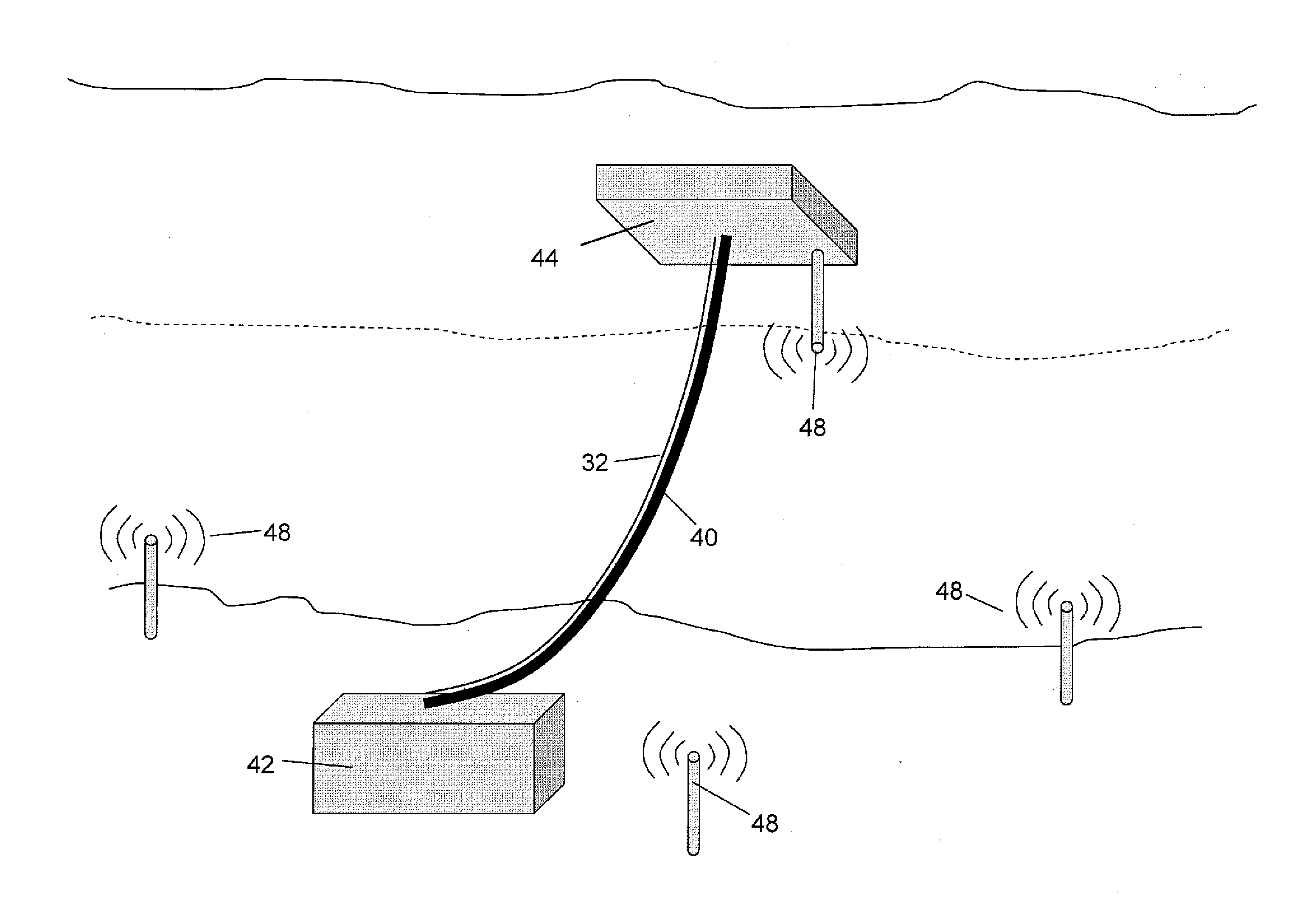

A method and apparatus for monitoring a structure using an optical fiber based distributed acoustic sensor (DAS) extending along the length of the structure. The DAS is able to resolve a separate acoustic signal with a spatial resolution of 1 m along the length of the fibre, and hence is able to operate with an acoustic positioning system to determine the position of the riser with the same spatial resolution. In addition, the fiber can at the same time also detect much lower frequency mechanical vibrations in the riser, for example such as resonant mode vibrations induced by movement in the surrounding medium. By using vibration detection in combination with acoustic positioning then overall structure shape monitoring can be undertaken, which is useful for vortex induced vibration (VIV) visualisation, fatigue analysis, and a variety of other advanced purposes. The structure may be a sub-sea riser.
First Claim
Other Claims data not available
