DEVICE FOR MONITORING A VEHICLE PARKING SPACE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 16, 2014
app pub date -
Mar 6, 2012
filing date -
Mar 17, 2011
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

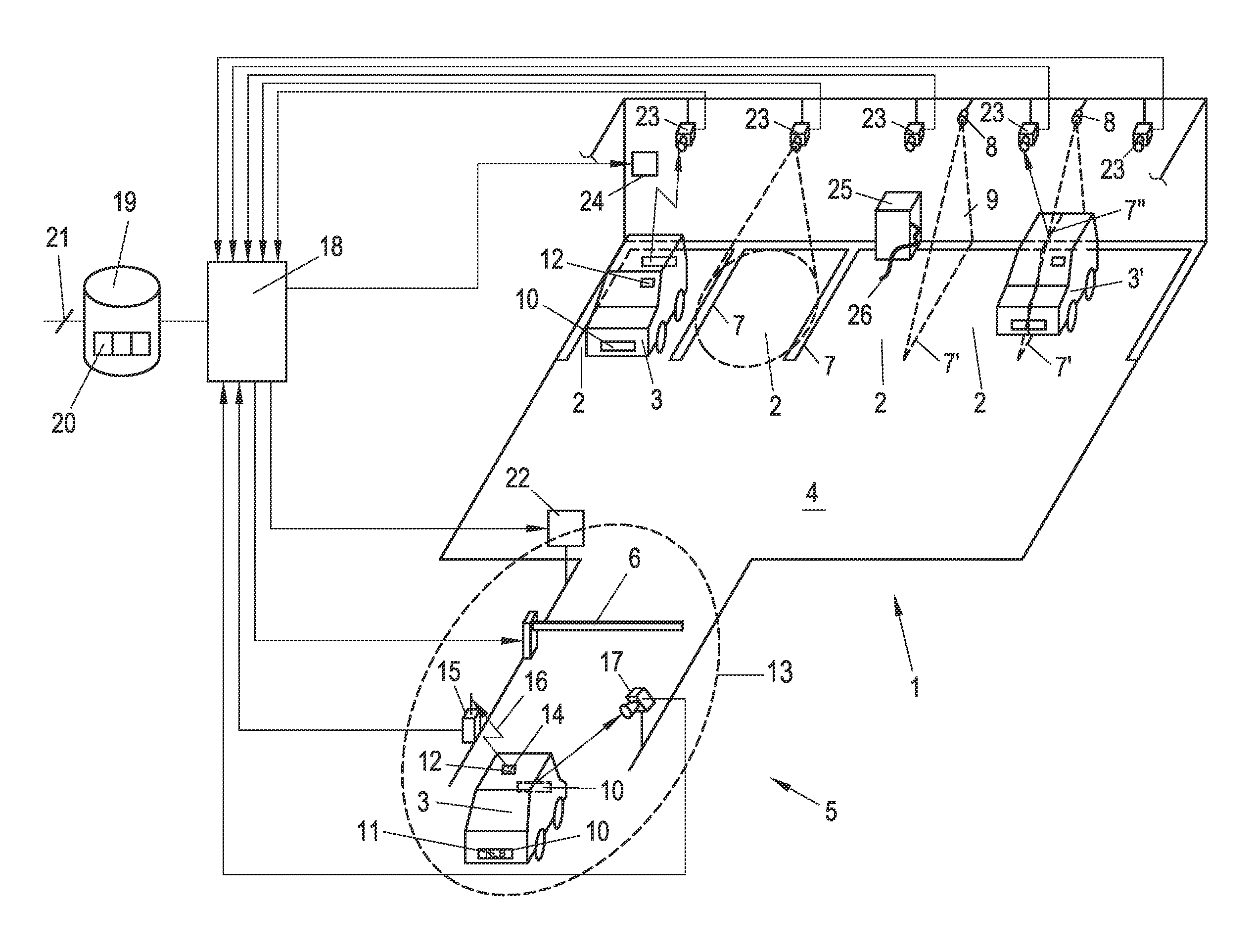

The invention relates to a device for monitoring a parking space (2) for a vehicle (3), comprising a camera unit (23) assigned to the parking space (2) and mounted thereon to record a picture of a frontal license plate (10) of the vehicle (3), a lighting unit (8, 8′, 8″) assigned to the parking space (2) and mounted thereon to project a light fan (9) lying in an approximately vertical plane along a boundary of the parking space (2) as a surface marking (7′), wherein the camera unit (23) lies approximately in the plane of the light fan (9) and has an opening angle (a) which covers both the surface marking (7, 7′) and the license plate (10).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- G06K Class
- 4.47 % this patent is cited more than
- 11 Age
